ADVdash 5"
About the ADVdash 5" PCB
ADVdash 5" is an open source ESP32 PCB design by ADVecu, published on GitHub. It is a 4-layer board measuring 150.6 × 89.9 mm, with 148 components from 70 distinct parts.
Its main chip is the ESP32-S3-WROOM-1-N4R8, from the ESP32 family. Other key parts include the RV-8803-C7-32.768k-3PPM-TA-QA, 74HCT1G126GW,125, TPS54331DDA, MT9201 and USBLC6-2P6. By type, the board carries 47 capacitors, 35 resistors, 30 diodes, 13 ICs, 6 connectors and 6 jumpers.
From the project

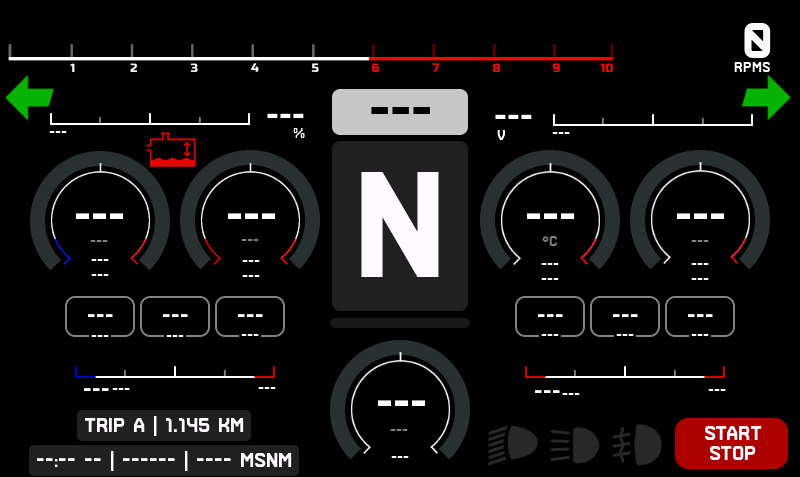

ADV.dash is a dashboard project built with LVGL and ESP32-S3. It is prepared to receive CAN bus data from rusEFI and, in the future, other programmable ECUs.
ADV.dash is a dashboard project built with LVGL and ESP32-S3. It is prepared to receive CAN bus data from rusEFI and, in the future, other programmable ECUs.
2. Open the project in PlatformIO. 3. Copy the file esp32-s3-devkitc-1-5inch to the boards directory of the Espressif platform in PlatformIO. 4. Copy lvconf.h` to its correct LVGL configuration folder. 5. Build and upload the project to your ESP32-S3.
Main components on the ADVdash 5"
ADVdash 5" bill of materials (BOM)
148 components, 70 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RV-8803-C7-32.768k-3PPM-TA-QA RV-8803-C7 | RV8803C7 | IC1 |
| 2 | 74HCT1G126GW,125 | SOT-353_SC-70-5_Handsoldering | IC2, IC3 |
| 1 | ESP32-S3-WROOM-1-N4R8 | ESP32-S3-WROOM-1 | U1 |
| 1 | TPS54331DDA | CONV_TPS54331DDA | U2 |
| 1 | MT9201 | SOT-23-6_Handsoldering | U3 |
| 1 | USBLC6-2P6 | SOT-23-6 | U4 |
| 1 | SN65HVD230 | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 1 | BMP280 | Bosch_LGA-8_2x2.5mm_P0.65mm_ClockwisePinNumbering | U6 |
| 1 | CAT24C51 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.29x3mm | U7 |
| 1 | LD1086DT33TR | TO-252-2 | U8 |
| 2 | PC817 | SOIC254P975X460-4N | U9, U10 |
| 1 | AO3401A | SOT-23 | Q2 |
| 1 | S8050 | SOT-23 | Q3 |
| 1 | 1-1734839-0 | 117348390 | J1 |
| 1 | 54104-4031 | 54104-4031 | J2 |
| 1 | USB4110-GF-A | USB4110GFA | J3 |
| 2 | 2.54mm 1x4 | PinHeader_1x04_P2.54mm_Vertical_SMD_Pin1Left | J4, J6 |
| 1 | UART0 | PinHeader_1x04_P2.54mm_Vertical_SMD_Pin1Left | J5 |
| 1 | CR2032-BS-6-1 | BAT_CR2032-BS-6-1 | BT1 |
| 2 | C883154 3A 24V | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1, F2 |
Show 50 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 726-TLF80511TFV33AT2 TLF80511TF_V33 | INF-PG-TO252-3-11_N | G1 |
| 1 | 120OHM 120ohm | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1 |
| 4 | ACT +/- | SolderJumper-3_P1.3mm_Open_Pad1.0x1.5mm | JP2, JP3, JP4, JP6 |
| 1 | Reset Control | SolderJumper-3_P1.3mm_Open_Pad1.0x1.5mm | JP5 |
| 2 | C2886898 RESET | SW_TL3342F160QG_TR | SW1, SW2 |
| 1 | IRFR5305 | D-PAK_TO252AA | T1 |
| 2 | 1N5819 | D_SMA | D1, D11 |
| 1 | B340 | D_SMA | D2 |
| 4 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3, D4, D6, D12 |
| 1 | SMBJ20A | D_SMB | D5 |
| 1 | SS24BF | D_SMB | D7 |
| 1 | NUP2105L | SOT-23 | D8 |
| 1 | 1N4148W | D_SOD-123 | D9 |
| 1 | BAS70-05 | SOT-23 | D10 |
| 18 | SK9822 | LED_RGB_5050-6 | D13, D14, D15, D16, D17, D18, D19, D20 +10 |
| 1 | 6.8UH 6.8uH | MDA4020-6R8M | L1 |
| 1 | 6.8UH 6.8uH | TCK145 | L2 |
| 6 | 0.1UF 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C7, C12, C21, C23, C27 |
| 4 | 10UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C22, C24, C25 |
| 2 | 4.7UF 4.7uF | C_1206_3216Metric | C3, C4 |
| 1 | 10NF 10nF | C_1206_3216Metric | C5 |
| 2 | 10NF 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C26 |
| 1 | 4.7NF 4.7nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C8 |
| 1 | 39PF 39pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9 |
| 1 | 33UF 33uF | C_1210_3225Metric | C10 |
| 1 | 33UF 33uF | C_1206_3216Metric | C11 |
| 1 | 100NF 100nF | CP_Elec_5x5.4 | C13 |
| 1 | C116352 1uF - X7R | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C14 |
| 2 | 22UF 22uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C15, C17 |
| 2 | 1UF 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C16, C20 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C18, C19 |
| 2 | 10UF 10uF | C_0805_2012Metric | C28, C29 |
| 18 | 0.1UF 0.1uF | C_0603_1608Metric | C30, C31, C32, C33, C34, C35, C36, C37 +10 |
| 10 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R7, R12, R17, R24, R26, R27 +2 |
| 1 | 332K 332k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | 68K1 68k1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 49K9 49k9 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 2 | C17477 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R21 |
| 1 | 1K91 1k91 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8 |
| 1 | 2K7 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R9 |
| 1 | C17414 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10 |
| 2 | 1K3 1k3 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13, R14 |
| 1 | 10R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R15 |
| 5 | 100K 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R16, R28, R29, R30, R31 |
| 1 | 100R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R18 |
| 2 | 4.7K 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R19, R20 |
| 2 | 5K1 5k1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R22, R23 |
| 1 | 120 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R25 |
| 1 | 2k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R32 |
| 2 | 2K7 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R33, R34 |
ADVdash 5" design files
The KiCad project lives in the ADVecu/ADV.dash repository on GitHub; these links point at the commit this page was built from.
ADVdash 5": common questions
What microcontroller does the ADVdash 5" use?
The ADVdash 5" is built around the ESP32-S3-WROOM-1-N4R8, from the ESP32 family.
How big is the ADVdash 5" PCB?
The ADVdash 5" measures 150.6 × 89.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the ADVdash 5"?
148 components, from 70 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ADVdash 5" design files?
From the ADVecu/ADV.dash repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ADVdash 5" design in my own project?
The repository has no license, so all rights stay with ADVecu. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ADVdash 5" without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
