About the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- PCB

ESP32-IoT-Sensor-Hub-Manufacturing-Ready- is an open source ESP32 PCB design by Asaf66, published on GitHub. It is a 4-layer board measuring 79.5 × 61.4 mm, with 80 components from 40 distinct parts.

Its main chip is the ESP32-C3-WROOM-02-H4, from the ESP32 family. Other key parts include the MCP73871-2CAI_ML, BME280, CP2102N-Axx-xQFN20, USBLC6-2SC6 and W25Q32JVSSIQ. By type, the board carries 32 resistors, 22 capacitors, 7 ICs, 6 LEDs, 5 connectors and 3 transistors.

It belongs with the iot & wireless, sensors and power & battery designs in this gallery.

From the project

hardware system based on ESP32-C3 (RISC-V architecture) on a 4-layer PCB for noise immunity. The project includes sensors (environment, light, and sound), smart power and charging management (MCP73871), and a user interface. system supports local data storage via SD card and external flash memory via SPI connection, with Wi-Fi and BLE connectivity.

A battery-powered, 4-layer IoT sensor hub built on the RISC-V ESP32-C3. It measures temperature, humidity, pressure, light, and sound, logs to microSD and SPI flash, and connects over Wi-Fi and BLE.

- All-in-one sensing: a BME280 (temperature / humidity / pressure), a TEMT6000 ambient-light sensor, and an electret microphone with a MAX4466 amplifier. - Local data logging: a microSD card slot plus 32 Mbit W25Q32 SPI flash. - Wireless: an ESP32-C3-WROOM-02 module (Wi-Fi + BLE 5) with the antenna placed at the board edge. - Power-path management: the MCP73871 charges a 1S LiPo while powering…

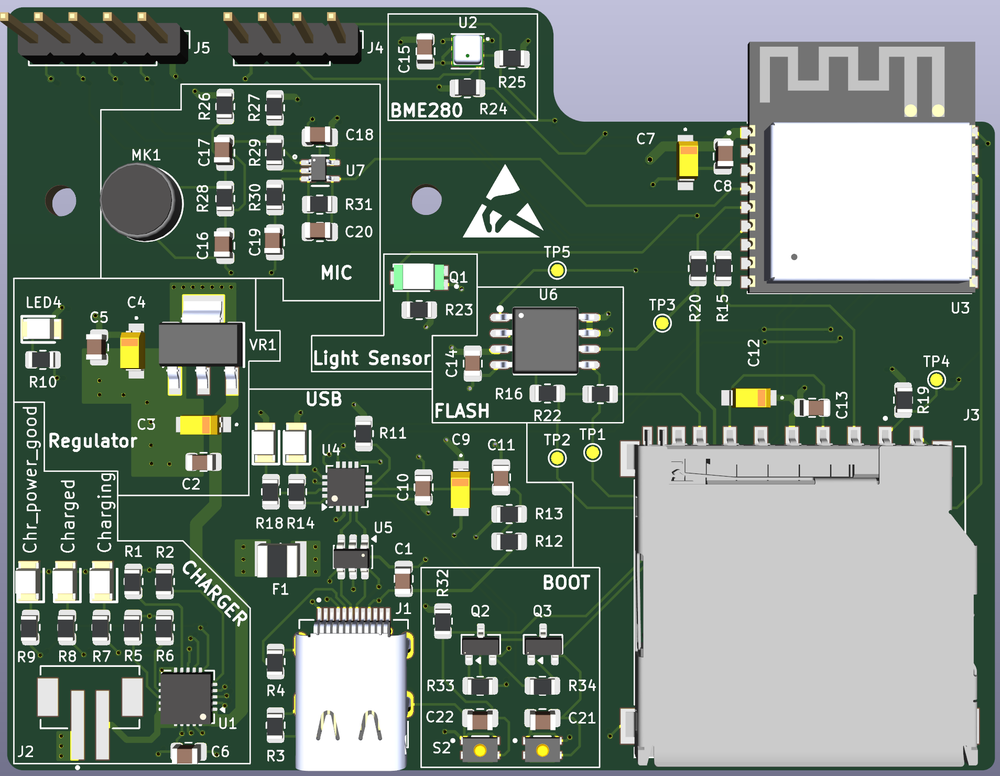

ESP32-IoT-Sensor-Hub-Manufacturing-Ready-, from the project README
From the project README

Main components on the ESP32-IoT-Sensor-Hub-Manufacturing-Ready-

MCP73871-2CAI_MLBME280ESP32-C3-WROOM-02-H4CP2102N-Axx-xQFN20USBLC6-2SC6W25Q32JVSSIQMAX4466EXK

ESP32-IoT-Sensor-Hub-Manufacturing-Ready- bill of materials (BOM)

80 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP73871-2CAI_ML
U1
1
BME280
U2
1
ESP32-C3-WROOM-02-H4
U3
1
CP2102N-Axx-xQFN20
U4
1
USBLC6-2SC6
U5
1
W25Q32JVSSIQ
U6
1
MAX4466EXK
U7
1
TEMT6000X01
Q1
2
BC817
Q2, Q3
1
SS-52400-002
J1
1
B2B-PH-SM4-TB
J2
1
GSD090012SEU
J3
1
Conn_01x04_Pin
J4
1
Conn_01x05_Pin
J5
1
0ZCH0110AF2E
F1
1
CMC-5042PF-AC
MK1
1
BOOT
S1
1
RESET
S2
1
LM1117MPX-3.3
VR1
3
LTST-C170KRKT
LED1, LED4, LED6
Show 20 more
QtyPartRefs
2
LTST-C170GKT
LED2, LED5
1
LTST-C170TBKT
LED3
11
0.1u
C1, C2, C5, C8, C10, C13, C14, C15 +3
4
10u
C3, C4, C7, C12
4
1u
C6, C11, C19, C22
1
4.7u
C9
1
0.01U
C17
1
100p
C20
8
10K
R1, R2, R19, R23, R30, R32, R33, R34
2
5K1
R3, R4
3
2K
R5, R26, R28
1
20K
R6
6
470
R7, R8, R9, R10, R14, R18
1
1K
R11
1
22K1
R12
1
47K5
R13
4
50
R15, R16, R20, R22
2
4K7
R24, R25
2
1M
R27, R29
1
100K
R31

ESP32-IoT-Sensor-Hub-Manufacturing-Ready- design files

The KiCad project lives in the Asaf66/ESP32-IoT-Sensor-Hub-Manufacturing-Ready- repository on GitHub; these links point at the commit this page was built from.

ESP32-IoT-Sensor-Hub-Manufacturing-Ready-: common questions

What microcontroller does the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- use?

The ESP32-IoT-Sensor-Hub-Manufacturing-Ready- is built around the ESP32-C3-WROOM-02-H4, from the ESP32 family.

How big is the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- PCB?

The ESP32-IoT-Sensor-Hub-Manufacturing-Ready- measures 79.5 × 61.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESP32-IoT-Sensor-Hub-Manufacturing-Ready-?

80 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- design files?

From the Asaf66/ESP32-IoT-Sensor-Hub-Manufacturing-Ready- repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- design in my own project?

The repository has no license, so all rights stay with Asaf66. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-IoT-Sensor-Hub-Manufacturing-Ready- without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
