About the Nrf9151-tracker PCB

Nrf9151-tracker is an open source Nordic nRF PCB design by chgpalmer, published on GitHub. It is a 4-layer board measuring 50.8 × 22.9 mm, with 96 components from 42 distinct parts.

Its main chip is the W25Q128JVPIQ, from the Nordic nRF family. Other key parts include the W25Q16JVUXIQ_TR, NPM1300-QEXX, 1042240820, RP2040 and LIS2DH12TR. By type, the board carries 48 capacitors, 18 resistors, 12 ICs, 7 inductors, 4 connectors and 3 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Considering supporting the project and purchasing a nRF9151 Feather at the following locations:

Considering supporting the project and purchasing a nRF9151 Feather at the following locations:

1. The Circuit Dojo Official Store 2. Digikey

All code for this board can be found here.

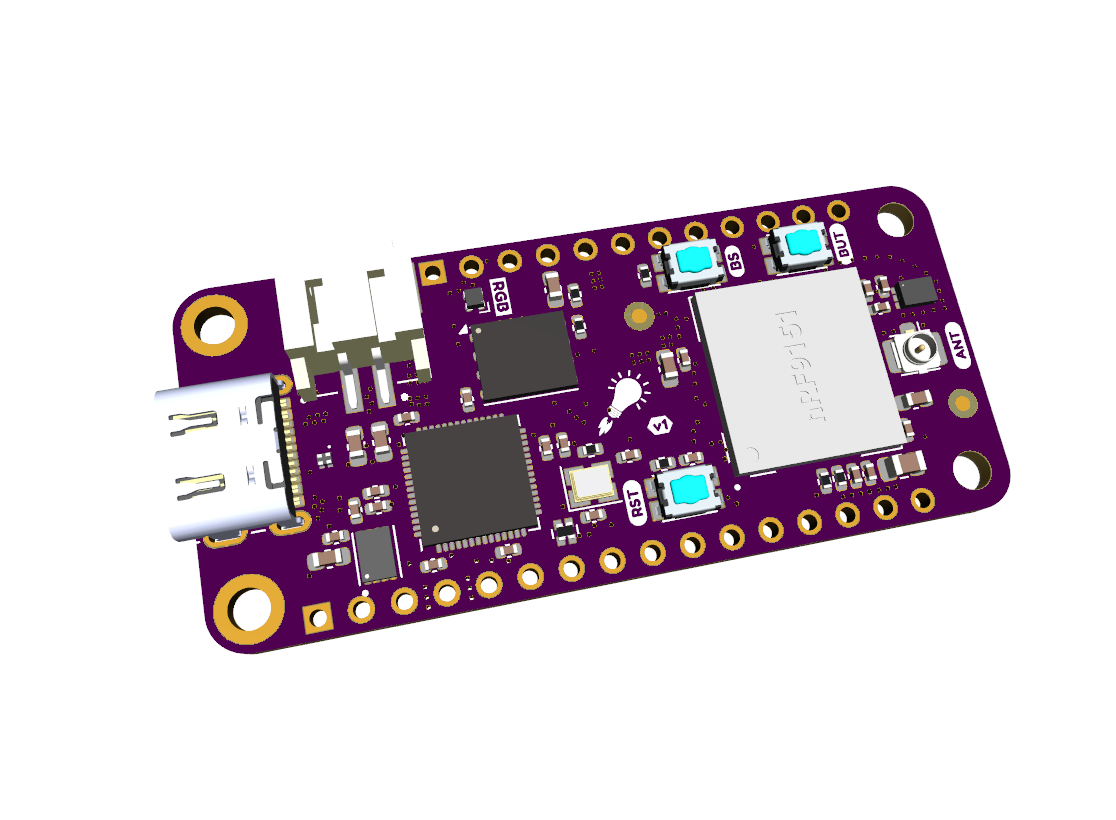

Nrf9151-tracker, from the project README
From the project README

Main components on the Nrf9151-tracker

W25Q16JVUXIQ_TRNPM1300-QEXX1042240820W25Q128JVPIQRP2040LIS2DH12TRTS5A3166DCKRTC7PZ14FUSKY65723-81TPS22919NRF9151-LAXXSTS4X

Nrf9151-tracker bill of materials (BOM)

96 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q16JVUXIQ_TR
Winbond
U1
1
NPM1300-QEXX
nPM1300-QEXX
U2
1
1042240820
U3
1
W25Q128JVPIQ
U4
1
RP2040
U5
1
LIS2DH12TR
U7
1
TS5A3166DCKR
U8
1
TC7PZ14FU
U9
1
SKY65723-81
U10
1
TPS22919
U11
1
NRF9151-LAXX
nRF9151-LAXX
U12
1
STS4X
U13
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
CON-USB-DX07S016JA1R1500
CON-USB-1003-030-01210-TR
J3
1
CON-S2B-PH-SM4-TB(LF)(SN)
J4
1
CON-SM04B-SRSS-TB
J5
1
Conn_Coaxial
J6
3
SW-434153017835‎
SW1, SW2, SW3
1
10K
10k
TH1
1
18-038BT/BDGAR6S1-CC01/10T
D1
Show 22 more
QtyPartRefs
1
BAT54CW
D2
4
120
FB1, FB2, FB3, FB4
2
IND-2.2U-1.37A-2x2
2.2u
L1, L2
1
L_Ferrite_Coupled
L3
2
1u
C1, C3
4
2.2U
2.2u
C2, C5, C17, C18
6
10U
10u
C4, C10, C11, C24, C36, C42
9
0.1U
0.1u
C6, C25, C27, C33, C35, C37, C41, C47 +1
4
15P
15p
C7, C9, C26, C38
1
CL10A475KQ8NNNC‎
4.7u
C8
13
0.1u
C12, C13, C14, C15, C16, C19, C20, C21 +5
1
47U
47u
C28
3
100p
C29, C30, C31
2
4.7U
4.7u
C32, C34
3
100P
100p
C39, C40, C46
6
RES-1K-5%-0402
1k
R1, R6, R9, R10, R13, R14
2
RES-330-5%-0402
255k
R2, R4
2
RES-100K-1%-02-0402
10k
R3, R8
2
RES-100K-1%-02-0402
1M
R5, R7
2
RES-100K-1%-02-0402
255k
R11, R12
3
100
RN2, RN3, RN4
1
20K
20k
RN5

Nrf9151-tracker design files

The KiCad project lives in the chgpalmer/nrf9151-tracker repository on GitHub; these links point at the commit this page was built from.

Nrf9151-tracker: common questions

What microcontroller does the Nrf9151-tracker use?

The Nrf9151-tracker is built around the W25Q128JVPIQ, from the Nordic nRF family.

How big is the Nrf9151-tracker PCB?

The Nrf9151-tracker measures 50.8 × 22.9 mm, has 4 copper layers and is 1.56718 mm thick.

How many components are on the Nrf9151-tracker?

96 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nrf9151-tracker design files?

From the chgpalmer/nrf9151-tracker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nrf9151-tracker design in my own project?

The repository has no license, so all rights stay with chgpalmer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Nrf9151-tracker without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
