3 to 4 Plug
computergeek1507·KiCad_Designs·3to4_Plug/3to4_Plug.kicad_pcb

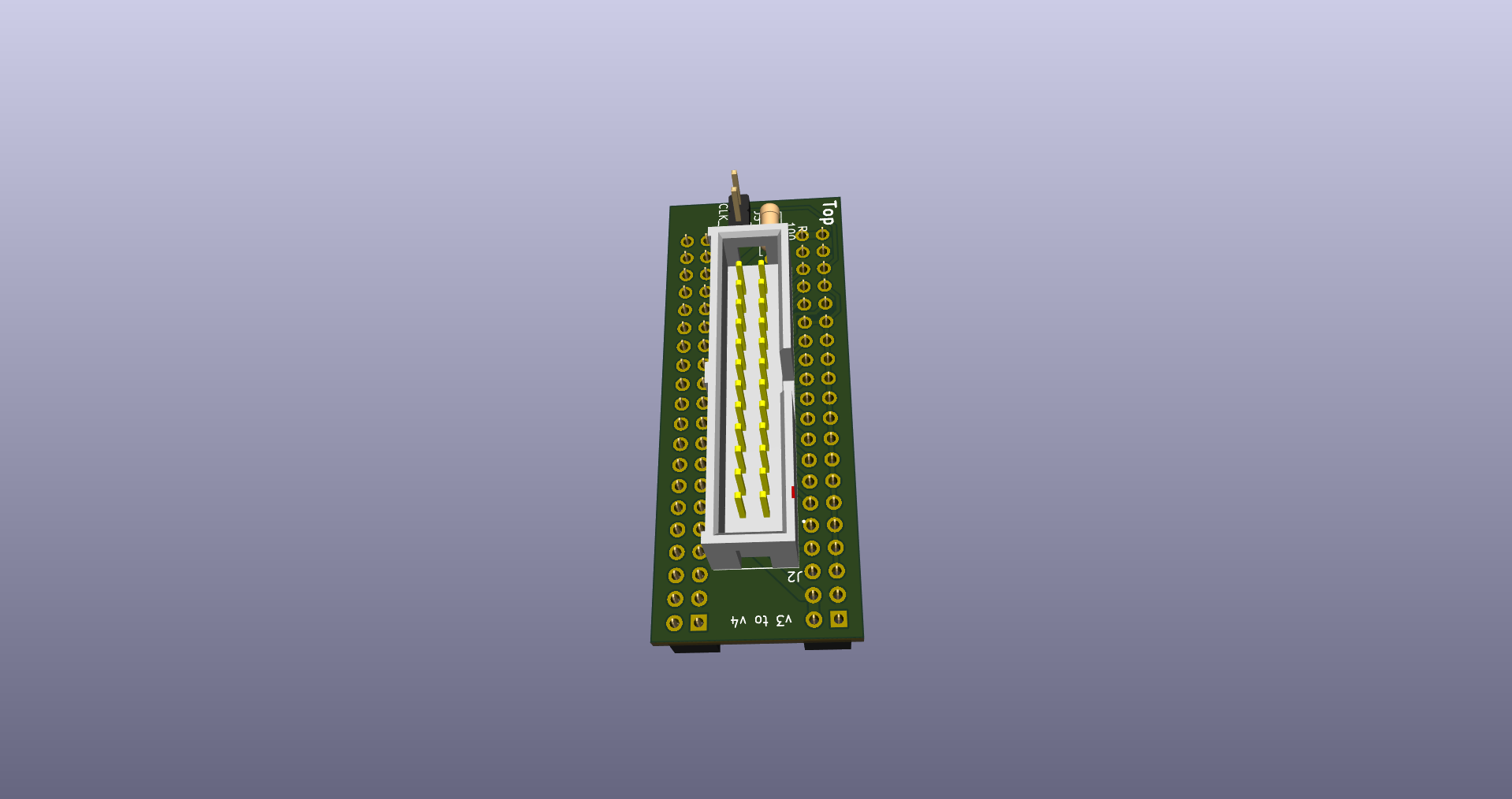

About the 3 to 4 Plug PCB
3 to 4 Plug is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 22 × 56 mm, with 5 components from 5 distinct parts.
By type, the board carries 4 connectors and 1 resistor.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

3 to 4 Plug bill of materials (BOM)
5 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SBH11-PBPC-D20-ST-BK v3 Header | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | 302-S241 v4 Header | OST_302-S241 | J2 |
| 1 | 61300211121 CLK_GND | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | CONN_01X03 Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J4 |
| 1 | CF14JT10K0 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
3 to 4 Plug design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
3 to 4 Plug: common questions
How big is the 3 to 4 Plug PCB?
The 3 to 4 Plug measures 22 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 3 to 4 Plug?
5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 3 to 4 Plug design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 3 to 4 Plug design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
