ESP32-CAM Controller
computergeek1507·KiCad_Designs·ESP32_CAM_Controller/ESP32_CAM_Controller.kicad_pcb

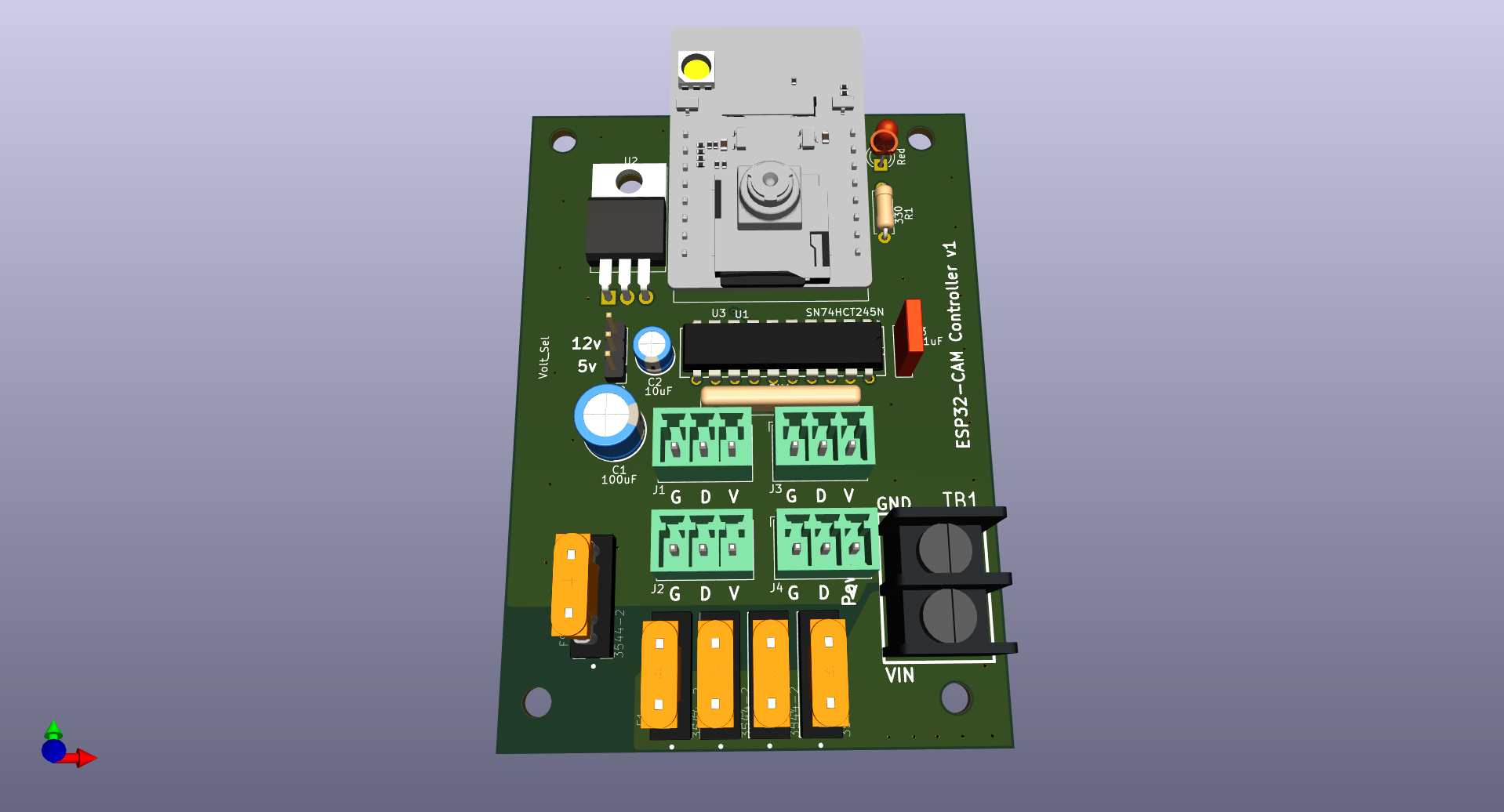

About the ESP32-CAM Controller PCB
ESP32-CAM Controller is an open source ESP32 PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 61.8 × 86 mm, with 20 components from 13 distinct parts.
Its main chip is the ESP32-DEVKITC, from the ESP32 family. Other key parts include the LM7805_TO220 and SN74HCT245N. By type, the board carries 5 connectors, 5 fuses, 3 ICs, 3 capacitors, 2 resistors and 1 diode.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the ESP32-CAM Controller
ESP32-CAM Controller bill of materials (BOM)
20 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-DEVKITC ESP32-CAM | ESP32-CAM | U1 |
| 1 | LM7805_TO220 | TO-220-3_Horizontal_TabDown | U2 |
| 1 | SN74HCT245N | SN74HCT245N | U3 |
| 4 | CONN_01X03 Conn_01x03 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J1, J2, J3, J4 |
| 1 | CONN_01X02 Volt_Sel | PinHeader_1x03_P2.54mm_Vertical | J10 |
| 5 | 3544-2 | FUSE_3544-2 | F1, F2, F3, F4, F9 |
| 1 | Power_In | BARRIER_BLOCK_1ROW_2POS_P8.26MM | TB1 |
| 1 | Red | LED_D3.0mm | D1 |
| 1 | 100UF 100uF | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.00mm | C2 |
| 1 | 0.1UF 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C3 |
| 1 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 33 | R_Array_SIP8 | RN1 |
ESP32-CAM Controller design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
ESP32-CAM Controller: common questions
What microcontroller does the ESP32-CAM Controller use?
The ESP32-CAM Controller is built around the ESP32-DEVKITC, from the ESP32 family.
How big is the ESP32-CAM Controller PCB?
The ESP32-CAM Controller measures 61.8 × 86 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32-CAM Controller?
20 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32-CAM Controller design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ESP32-CAM Controller design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
Can I test firmware for the ESP32-CAM Controller without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
