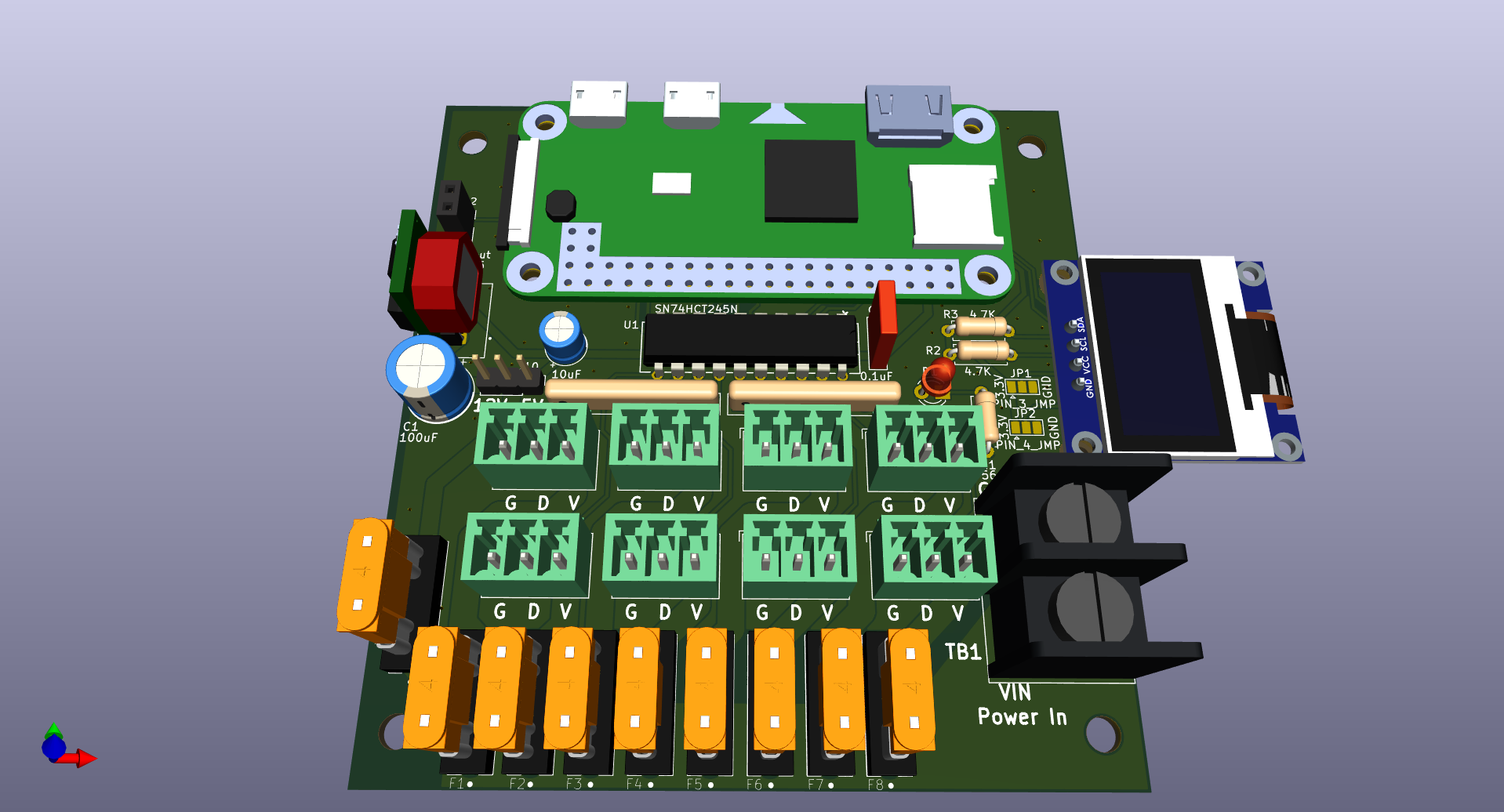

About the PI Zero Controller PCB
PI Zero Controller is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 84.8 × 88.1 mm, with 34 components from 24 distinct parts.
Other key parts include the SN74HCT245N and LM7805CT. By type, the board carries 11 connectors, 9 fuses, 5 resistors, 3 capacitors, 2 ICs and 2 jumpers.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the PI Zero Controller
PI Zero Controller bill of materials (BOM)
34 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74HCT245N | SN74HCT245N | U1 |
| 1 | LM7805CT LM7805 | 1.5-W36-C | U2 |
| 1 | 1843619/OSTTJ0311530 String1 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J1 |
| 1 | 1843619/OSTTJ0311530 String2 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J2 |
| 1 | 1843619/OSTTJ0311530 String3 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J3 |
| 1 | 1843619/OSTTJ0311530 String4 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J4 |
| 1 | 1843619/OSTTJ0311530 String5 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J5 |
| 1 | 1843619/OSTTJ0311530 String6 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J6 |
| 1 | 1843619/OSTTJ0311530 String7 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J7 |
| 1 | 1843619/OSTTJ0311530 String8 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J8 |
| 1 | PPTC041LFBN-RC OLED | OLED-SSD1306-128X64-I2C-THT | J9 |
| 1 | CONN_01X02 Vin Select | PinHeader_1x03_P2.54mm_Vertical | J10 |
| 1 | 302-S241 Expansion Header | OST_302-S241 | J12 |
| 9 | 3544-2 | FUSE_3544-2 | F1, F2, F3, F4, F5, F6, F7, F8 +1 |
| 1 | PIN_3_JMP | SolderJumper-3_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
| 1 | PIN_4_JMP | SolderJumper-3_P1.3mm_Open_Pad1.0x1.5mm | JP2 |
| 1 | Power In | BARRIER_BLOCK_1ROW_2POS_P9.5MM | TB1 |
| 1 | 151031VS06000 Status LED | LED_D3.0mm | D1 |
| 1 | UVR1H101MPD 100uF | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | ECA-1EM100 10uF | CP_Radial_D5.0mm_P2.00mm | C2 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SR215C104KARTR1 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C3 |
| 1 | CF14JT56R0 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 2 | 4.7K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3 |
| 2 | 4608X-102-151LF 150 | R_Array_SIP8 | RN1, RN2 |
PI Zero Controller design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
PI Zero Controller: common questions
How big is the PI Zero Controller PCB?
The PI Zero Controller measures 84.8 × 88.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PI Zero Controller?
34 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PI Zero Controller design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PI Zero Controller design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
