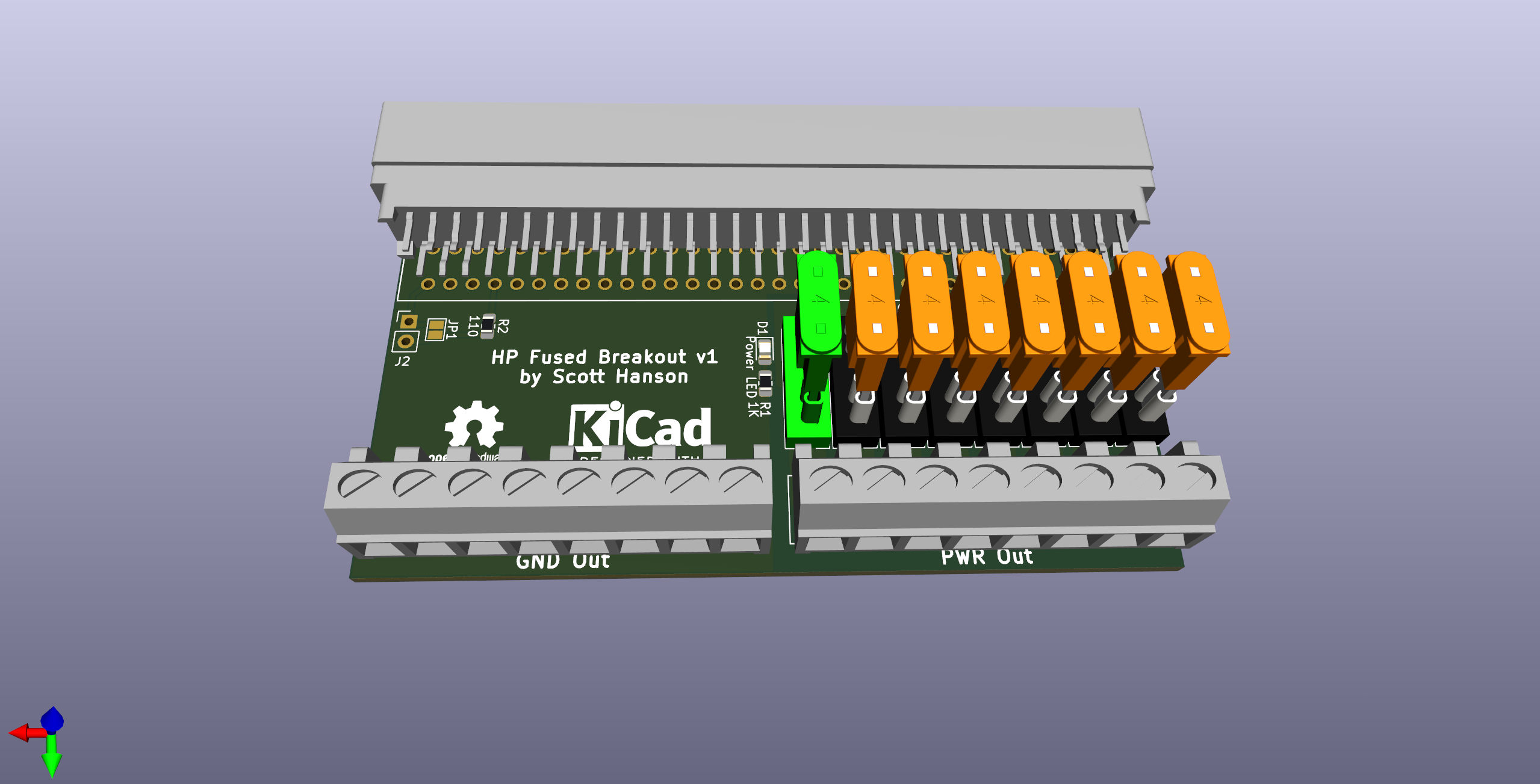

HP Fused Breakout
computergeek1507·KiCad_Designs·Power_Breakout_Fused2/Power_Breakout.kicad_pcb
About the HP Fused Breakout
HP Fused Breakout is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 85.5 × 40.3 mm, with 30 components from 9 distinct parts.
By type, the board carries 10 resistors, 9 diodes, 8 fuses and 3 connectors.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

HP Fused Breakout bill of materials (BOM)
30 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1761468-1 PS Conn | TE_1761469-1 | J1 |
| 1 | VI0821550000G PWR Out | PhoenixContact_MCV_1,5_8-G-5.08_1x08_P5.08mm_Vertical | J3 |
| 1 | VI0821550000G GND Out | PhoenixContact_MCV_1,5_8-G-5.08_1x08_P5.08mm_Vertical | J4 |
| 8 | 3544-2 3544-2_SM | FUSE_3544-2 | F1, F2, F3, F4, F5, F6, F7, F8 |
| 1 | LTST-C190KRKT Power LED | LED_0603_1608Metric | D1 |
| 8 | QBLP595-IG LED | LED_0402_1005Metric | D2, D3, D4, D5, D6, D7, D8, D9 |
| 1 | RC0603FR-072K2L 2.2K | R_0603_1608Metric | R1 |
| 1 | RC0603FR-07100RL 100 | R_0603_1608Metric | R2 |
| 8 | RC0402FR-072K2L 2.2K | R_0402_1005Metric | R3, R4, R5, R6, R7, R8, R9, R10 |
HP Fused Breakout design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
HP Fused Breakout: common questions
How big is the HP Fused Breakout?
The HP Fused Breakout measures 85.5 × 40.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HP Fused Breakout?
30 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HP Fused Breakout design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the HP Fused Breakout design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
