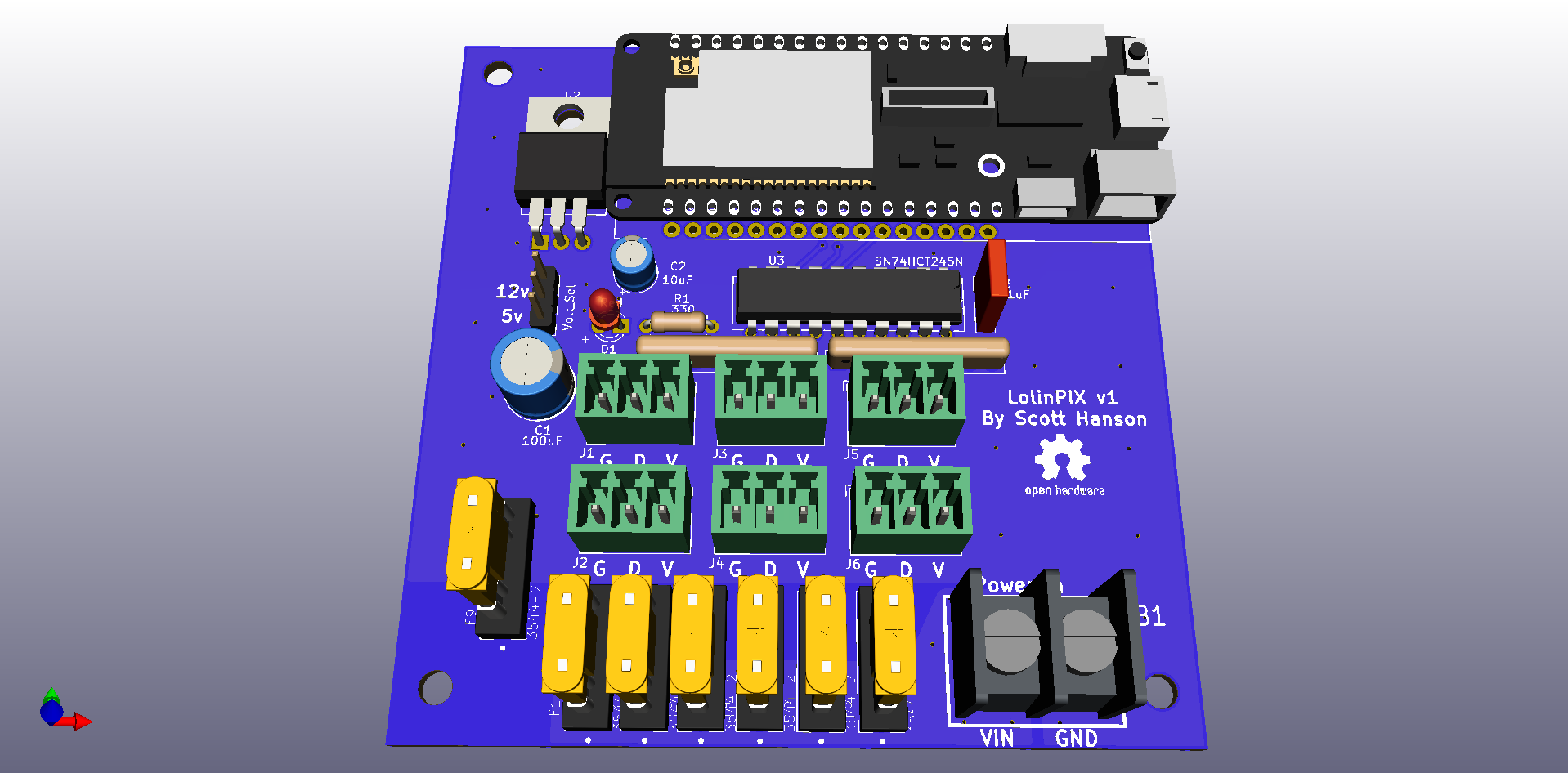

Lolin Pro Controller
computergeek1507·KiCad_Designs·LoLin_Pro_Controller/LoLin_Pro_Controller.kicad_pcb
About the Lolin Pro Controller PCB
Lolin Pro Controller is an open source PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 85.1 × 91.6 mm, with 26 components from 14 distinct parts.
Other key parts include the LM7805_TO220 and SN74HCT245N. By type, the board carries 8 connectors, 7 fuses, 3 capacitors, 3 resistors, 2 ICs and 1 module.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the Lolin Pro Controller
Lolin Pro Controller bill of materials (BOM)
26 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM7805_TO220 | TO-220-3_Horizontal_TabDown | U2 |
| 1 | SN74HCT245N | SN74HCT245N | U3 |
| 1 | LolinD32 | LolinD32 | M1 |
| 6 | CONN_01X03 Conn_01x03 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J1, J2, J3, J4, J5, J6 |
| 1 | CONN_01X03 OLED | OLED-SSD1306-128X64-I2C-THT | J7 |
| 1 | CONN_01X02 Volt_Sel | PinHeader_1x03_P2.54mm_Vertical | J10 |
| 7 | 3544-2 | FUSE_3544-2 | F1, F2, F3, F4, F5, F6, F9 |
| 1 | Power_In | BARRIER_BLOCK_1ROW_2POS_P8.26MM | TB1 |
| 1 | Red | LED_D3.0mm | D1 |
| 1 | 100UF 100uF | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.00mm | C2 |
| 1 | 0.1UF 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C3 |
| 1 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 2 | 33 | R_Array_SIP8 | RN1, RN2 |
Lolin Pro Controller design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
Lolin Pro Controller: common questions
How big is the Lolin Pro Controller PCB?
The Lolin Pro Controller measures 85.1 × 91.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lolin Pro Controller?
26 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lolin Pro Controller design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Lolin Pro Controller design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
