DMXStepper
computergeek1507·KiCad_Designs·PicoDMXStepper/PicoDMXStepper.kicad_pcb

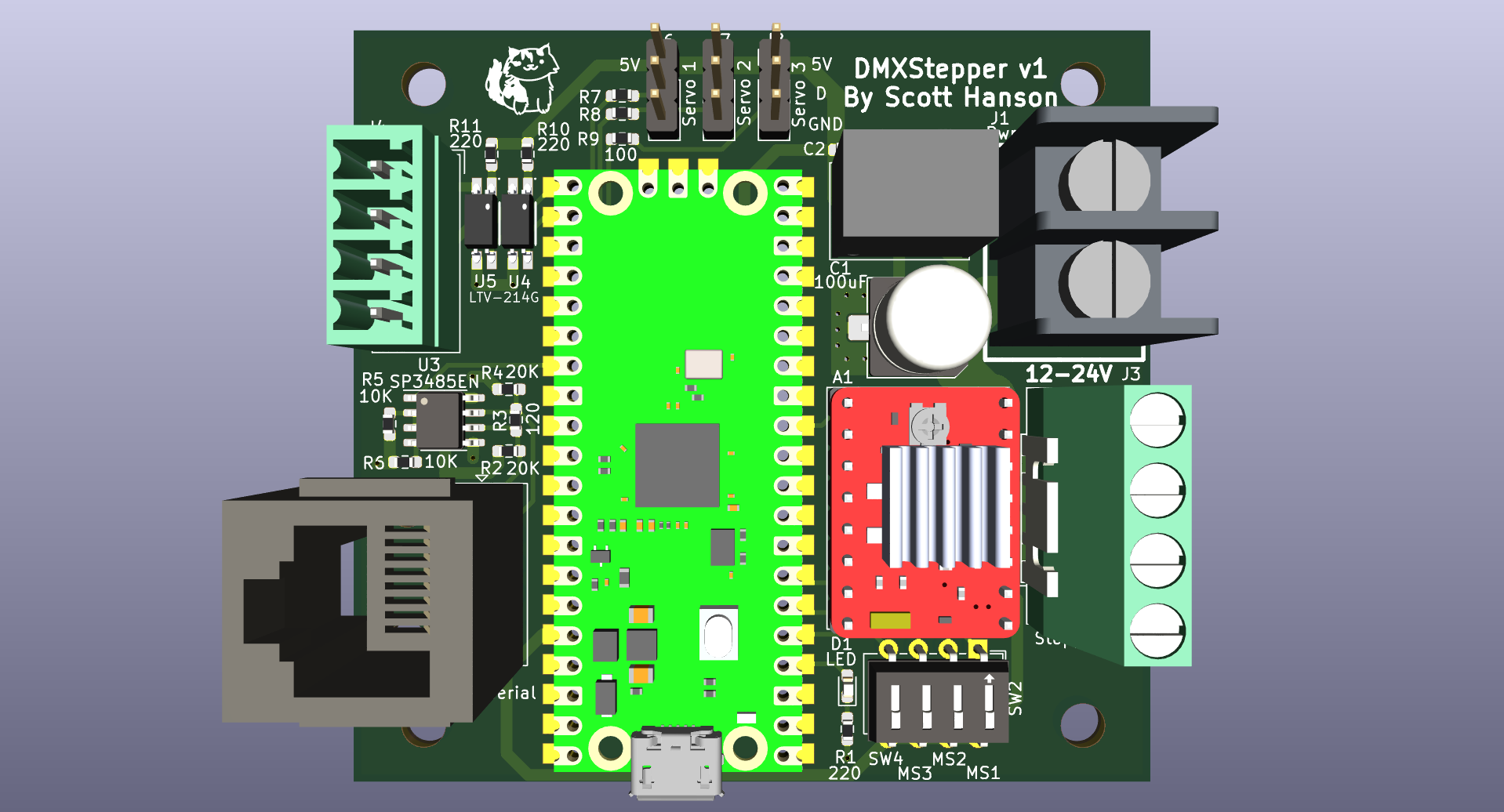

About the DMXStepper PCB
DMXStepper is an open source RP2040/RP2350 PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 67.9 × 64 mm, with 29 components from 22 distinct parts.
Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the VR10S05, SP3485EN, LTV-214G and POLOLU_BREAKOUT_A4988. By type, the board carries 11 resistors, 8 connectors, 5 ICs, 2 capacitors, 1 module and 1 switch.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the DMXStepper
DMXStepper bill of materials (BOM)
29 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VR10S05 | VR10S05 | U1 |
| 1 | Pico | RPi_Pico_SMD_TH | U2 |
| 1 | SP3485EN | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 2 | LTV-214G | LTV214 | U4, U5 |
| 1 | POLOLU_BREAKOUT_A4988 Pololu_Breakout_A4988 | Pololu_Breakout-16_15.2x20.3mm | A1 |
| 1 | C306200 Pwr In | BARRIER_BLOCK_1ROW_2POS_P8.26MM | J1 |
| 1 | C2938579 DMX Serial | RJ45_Amphenol_54602-x08_Horizontal | J2 |
| 1 | C192779 Stepper Out | TerminalBlock_Phoenix_MKDS-1,5-4_1x04_P5.00mm_Horizontal | J3 |
| 1 | C69809 Limit SW | PhoenixContact_MCV_1,5_4-G-3.81_1x04_P3.81mm_Vertical | J4 |
| 1 | C144395 Stepper Out 2 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J5 |
| 1 | C124376 Servo 1 | PinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | C124376 Servo 2 | PinHeader_1x03_P2.54mm_Vertical | J7 |
| 1 | C124376 Servo 3 | PinHeader_1x03_P2.54mm_Vertical | J8 |
| 1 | SW_DIP_X04 SW_DIP_x04 | SW_DIP_SPSTx04_Slide_6.7x11.72mm_W7.62mm_P2.54mm_LowProfile | SW2 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 100UF 100uF | C_Elec_8x10.2 | C1 |
| 1 | 10UF 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
| 3 | 220 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R10, R11 |
| 2 | 20K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R4 |
| 1 | 120 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R6 |
| 3 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R8, R9 |
DMXStepper design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
DMXStepper: common questions
What microcontroller does the DMXStepper use?
The DMXStepper is built around the Pico, from the RP2040/RP2350 family.
How big is the DMXStepper PCB?
The DMXStepper measures 67.9 × 64 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DMXStepper?
29 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DMXStepper design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DMXStepper design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
Can I test firmware for the DMXStepper without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
