About the Weather Pico PCB

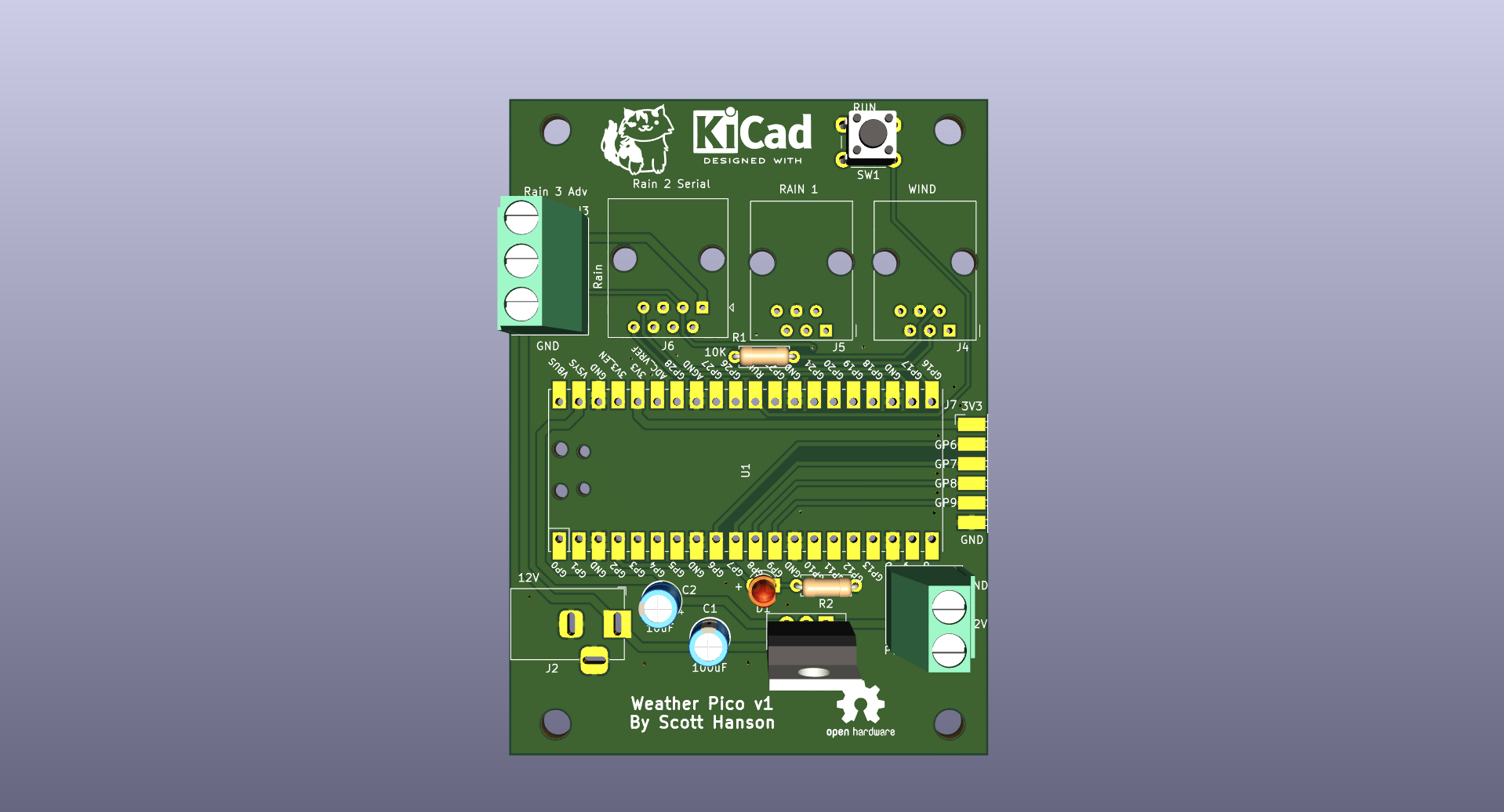

Weather Pico is an open source RP2040/RP2350 PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 63.4 × 85 mm, with 17 components from 17 distinct parts.
Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the L7805. By type, the board carries 8 connectors, 3 resistors, 2 ICs, 2 capacitors, 1 switch and 1 diode.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the Weather Pico
Weather Pico bill of materials (BOM)
17 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Pico | RPi_Pico_SMD_TH | U1 |
| 1 | L7805 | TO-220-3_Vertical | U2 |
| 1 | Pwr In | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J1 |
| 1 | 12V | BarrelJack_Horizontal | J2 |
| 1 | Rain 3 Adv | TerminalBlock_Phoenix_MKDS-1,5-3_1x03_P5.00mm_Horizontal | J3 |
| 1 | WIND | RJ12_Amphenol_54601 | J4 |
| 1 | RAIN 1 | RJ12_Amphenol_54601 | J5 |
| 1 | Rain 2 Serial | RJ45_Amphenol_54602-x08_Horizontal | J6 |
| 1 | BME280 | PinHeader_1x04_P2.54mm_Vertical | J7 |
| 1 | DS18B20 | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J8 |
| 1 | PTS645SL50SMTR92 LFS RUN | SW_PUSH_6mm | SW1 |
| 1 | 150080RS75000 LED | LED_D3.0mm | D1 |
| 1 | 100UF 100uF | CP_Radial_D5.0mm_P2.50mm | C1 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.50mm | C2 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | RMCF0603FT220R 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 4.7K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
Weather Pico design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
Weather Pico: common questions
What microcontroller does the Weather Pico use?
The Weather Pico is built around the Pico, from the RP2040/RP2350 family.
How big is the Weather Pico PCB?
The Weather Pico measures 63.4 × 85 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Weather Pico?
17 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Weather Pico design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Weather Pico design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
Can I test firmware for the Weather Pico without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
