OS PiHat
computergeek1507·KiCad_Designs·PiHat/PiHat.kicad_pcb

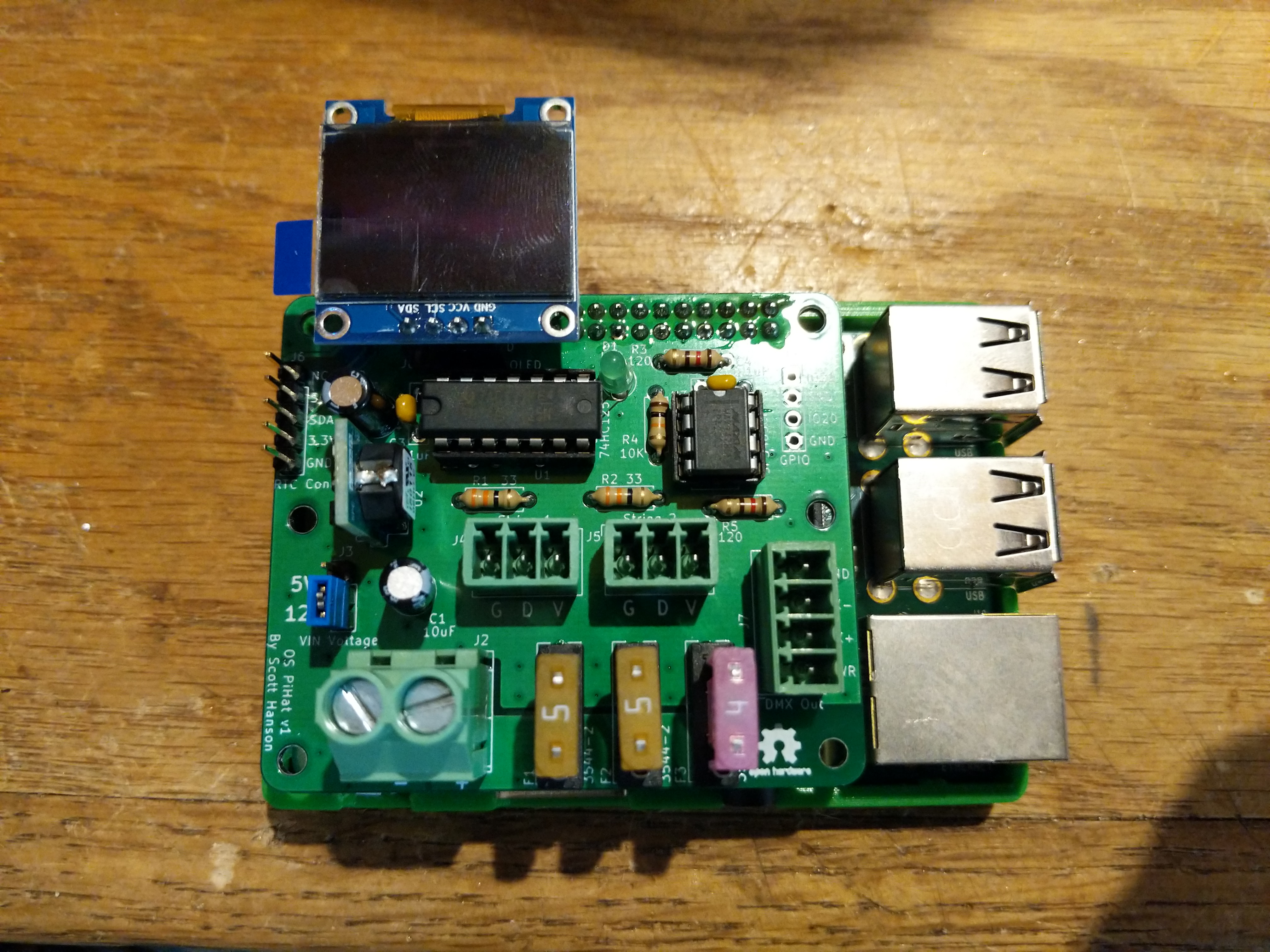

About the OS PiHat PCB
OS PiHat is an open source Raspberry Pi PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 65 × 56 mm, with 14 components from 12 distinct parts.
Its main chip is the PPPC202LFBN-RC, from the Raspberry Pi family. Other key parts include the 24LC256T-I/SN and MAX14780EEPA+. By type, the board carries 5 resistors, 3 connectors, 2 ICs, 2 capacitors, 1 switch and 1 diode.
It belongs with the displays & leds designs in this gallery.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the OS PiHat
OS PiHat bill of materials (BOM)
14 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 24LC256T-I/SN 24LC256 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | MAX14780EEPA+ SP3485CP | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | PPPC202LFBN-RC Raspberry_Pi_2_3 | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | X05ADIWA1DY1022 DMX1 RJ45 | RJ45_Amphenol_54602-x08_Horizontal | J3 |
| 1 | PPTC041LFBN-RC OLED | PinSocket_1x04_P2.54mm_Vertical | J8 |
| 1 | K3-2235D-F1 DMX_LOR_Select | SW_CK_JS202011CQN_DPDT_Straight | SW1 |
| 1 | WP3A8GD LED | LED_0603_1608Metric | D1 |
| 1 | CL10B104KB8NNWC 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | SR215C104KARTR1 0.1uF | C_0603_1608Metric | C4 |
| 2 | RC0603JR-074K7L 4.7K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 2 | CF14JT120R 120 | R_0603_1608Metric | R3, R5 |
| 1 | CF14JT10K0 10K | R_0603_1608Metric | R4 |
OS PiHat design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
OS PiHat: common questions
What microcontroller does the OS PiHat use?
The OS PiHat is built around the PPPC202LFBN-RC, from the Raspberry Pi family.
How big is the OS PiHat PCB?
The OS PiHat measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OS PiHat?
14 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OS PiHat design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the OS PiHat design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
Can I test firmware for the OS PiHat without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
