ESP32PIX
computergeek1507·KiCad_Designs·ESP32_Controller_Eth_SD_POE/ESP32_Controller.kicad_pcb

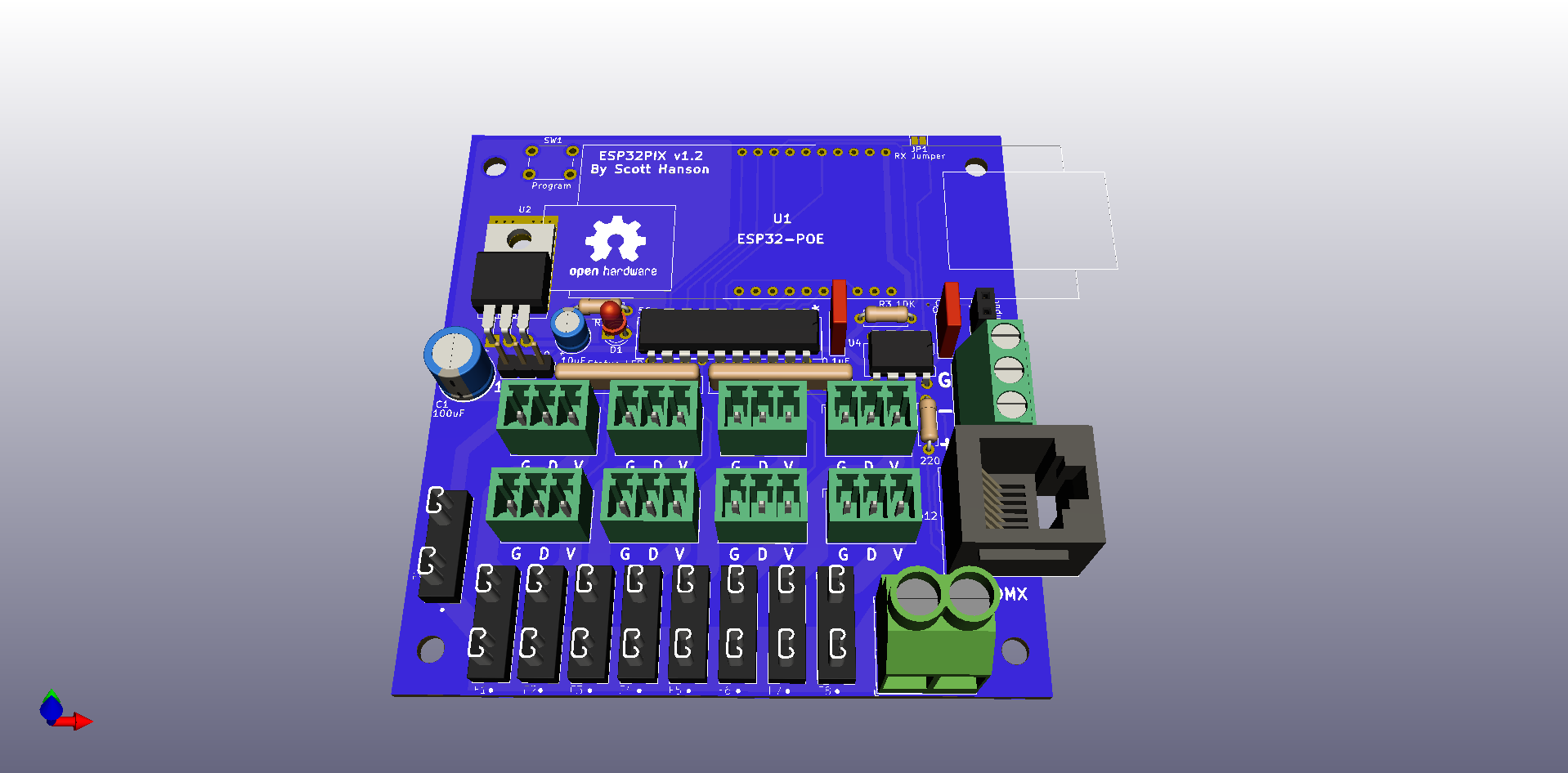

About the ESP32PIX PCB
ESP32PIX is an open source ESP32 PCB design by computergeek1507, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 84.8 × 88.1 mm, with 38 components from 29 distinct parts.
Its main chip is the ESP32-DEVKITC, from the ESP32 family. Other key parts include the LM7805_TO220, SN74HCT245N and SP3485CP. By type, the board carries 14 connectors, 9 fuses, 5 resistors, 4 ICs, 4 capacitors and 1 switch.
From the project
KiCad PCB Designs
This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Main components on the ESP32PIX
ESP32PIX bill of materials (BOM)
38 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-DEVKITC ESP32-POE | XCVR_ESP32-POE | U1 |
| 1 | LM7805_TO220 LM7805 | TO-220-3_Horizontal_TabDown | U2 |
| 1 | SN74HCT245N | SN74HCT245N | U3 |
| 1 | SP3485CP | DIP-8_W7.62mm | U4 |
| 1 | CONN_01X03 String1 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J1 |
| 1 | CONN_01X03 String2 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J2 |
| 1 | CONN_01X03 String3 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J3 |
| 1 | CONN_01X03 String4 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J4 |
| 1 | CONN_01X03 String5 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J5 |
| 1 | CONN_01X03 String6 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J6 |
| 1 | CONN_01X03 String7 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J7 |
| 1 | CONN_01X03 String8 | PhoenixContact_MCV_1,5_3-G-3.5_1x03_P3.50mm_Vertical | J8 |
| 1 | CONN_01X02 Power In | TerminalBlock_MetzConnect_Type701_RT11L02HGLU_1x02_P6.35mm_Horizontal | J9 |
| 1 | CONN_01X02 Vin Select | PinHeader_1x03_P2.54mm_Vertical | J10 |
| 1 | DMX1 | TerminalBlock_Phoenix_MKDS-1,5-3_1x03_P5.00mm_Horizontal | J11 |
| 1 | RJ45 | RJ45_Amphenol_54602-x08_Horizontal | J12 |
| 1 | DMX2 | PinSocket_1x03_P2.54mm_Vertical | J13 |
| 1 | User Input | PinSocket_1x02_P2.54mm_Vertical | J14 |
| 9 | 3544-2 | FUSE_3544-2 | F1, F2, F3, F4, F5, F6, F7, F8 +1 |
| 1 | Program | SW_PUSH_6mm | SW1 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Status LED | LED_D3.0mm | D1 |
| 1 | 100UF 100uF | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.00mm | C2 |
| 1 | 0.1UF 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C3 |
| 1 | 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C4 |
| 1 | 56 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 2 | 150 | R_Array_SIP8 | RN1, RN2 |
ESP32PIX design files
The KiCad project lives in the computergeek1507/KiCad_Designs repository on GitHub; these links point at the commit this page was built from.
ESP32PIX: common questions
What microcontroller does the ESP32PIX use?
The ESP32PIX is built around the ESP32-DEVKITC, from the ESP32 family.
How big is the ESP32PIX PCB?
The ESP32PIX measures 84.8 × 88.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32PIX?
38 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32PIX design files?
From the computergeek1507/KiCad_Designs repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the ESP32PIX design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which computergeek1507 chose for the repository.
Can I test firmware for the ESP32PIX without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
