About the Ice core PCB

Ice core is an open source RP2040/RP2350 PCB design by enkhbold470, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 80 × 60 mm, with 74 components from 32 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the USBLC6-2SC6, AP63203WU-7, AP2112K-1.2TRG1, W25Q32JVSSIQ and ICE40UP5K-SG48I. By type, the board carries 35 capacitors, 18 resistors, 8 ICs, 4 connectors, 4 diodes and 3 switches.

It belongs with the test & measurement and robotics & motion designs in this gallery.

From the project

Five KiCad 10 boards (4- and 6-layer): ESP32-S3 industrial gateway, USB-C PD bench supply, RP2040 logic analyzer, FOC motor controller, iCE40 FPGA board. KiCad projects, gerbers, BOM, STEP, renders and design-process videos.

A 6-layer iCE40UP5K FPGA board with 8 MB PSRAM and three Pmods, programmed and clocked over USB-C by an RP2040.

Not fabricated, assembled or powered. Every number on this page is measured by KiCad 10 on the files in this folder; the full measurements are in report.json.

Ice Core is an FPGA board: a Lattice iCE40UP5K with 8 MB of QSPI PSRAM and three Pmod host ports, programmed and clocked over USB-C by an RP2040, on 80 x 60 mm of 6-layer board. It was designed with the HeyPCB method on KiCad 10 (the headless heypcb-kicad pipeline, routed by Freerouting 2.4.1) from the brief in board.json.

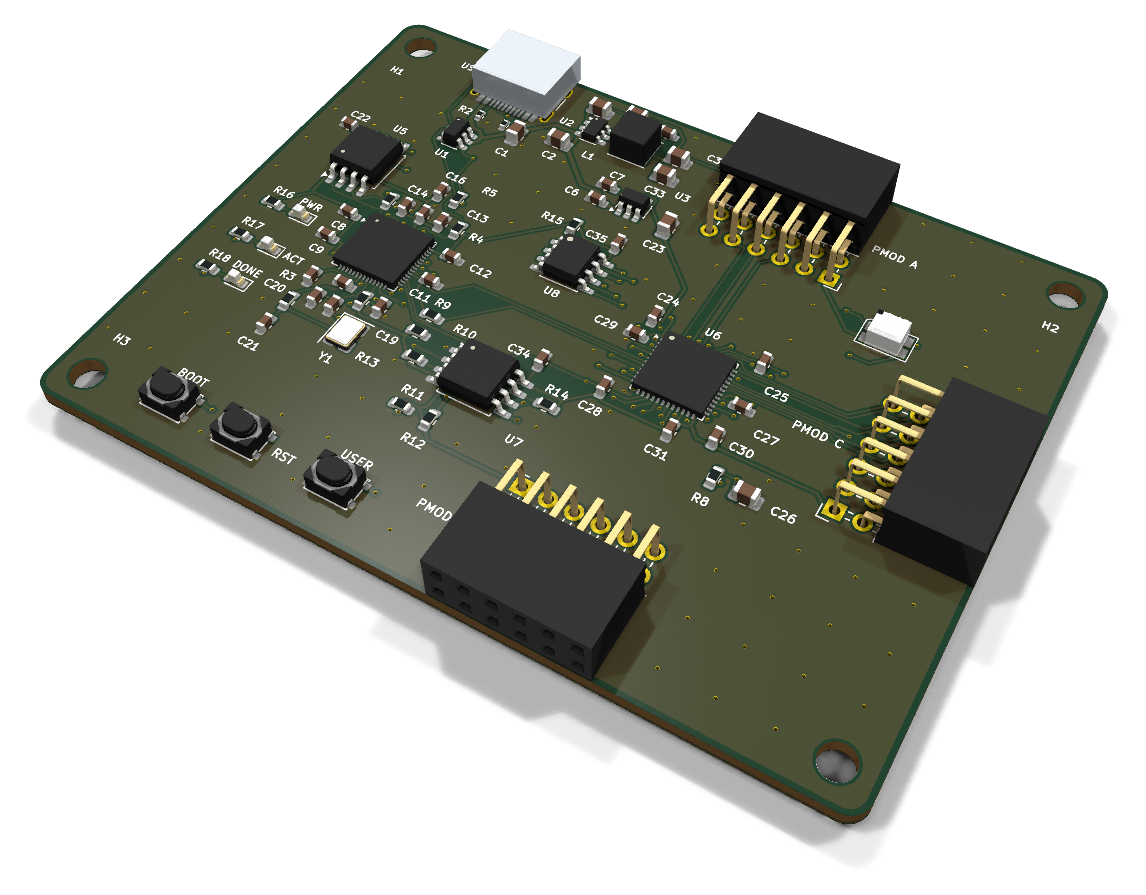

Ice core, from the project README
From the project README

Main components on the Ice core

USBLC6-2SC6AP63203WU-7AP2112K-1.2TRG1RP2040W25Q32JVSSIQICE40UP5K-SG48IAPS6404L-3SQR-SN

Ice core bill of materials (BOM)

74 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
AP63203WU-7
AP63203WU
U2
1
AP2112K-1.2TRG1
AP2112K-1.2
U3
1
RP2040
U4
2
W25Q32JVSSIQ
U5, U7
1
ICE40UP5K-SG48I
iCE40UP5K-SG48
U6
1
APS6404L-3SQR-SN
U8
1
ABM8-272-T3
12MHz
Y1
1
TYPE-C-31-M-12
USB-C
J1
1
PM254-2-06-W-8.5
PMOD_A
J2
1
PM254-2-06-W-8.5
PMOD_B
J3
1
PM254-2-06-W-8.5
PMOD_C
J4
1
PTS810SJM250SMTRLFS
BOOT
SW1
1
PTS810SJM250SMTRLFS
RESET
SW2
1
PTS810SJM250SMTRLFS
USER
SW3
1
S4-3528RGBTA-A
RGB
D1
1
KT-0603G
Green (PWR)
D2
1
KT-0603R
Red (ACT)
D3
1
XL-1608UOC-06
Orange (DONE)
D4
1
SWPA4030S3R9MT
3.9uH
L1
Show 12 more
QtyPartRefs
2
CL21A106KAYNNNE
10uF
C1, C2
2
CL21A226MAQNNNE
22uF
C3, C4
21
CC0603KRX7R9BB104
100nF
C5, C8, C9, C10, C11, C12, C13, C14 +13
4
CL10A105KB8NNNC
1uF
C6, C7, C16, C17
2
CL10C150JB8NNNC
15pF
C20, C21
4
CL21A475KAQNNNE
4.7uF
C23, C26, C32, C33
2
0402WGF5101TCE
5.1k
R1, R2
4
0603WAF1001T5E
1k
R3, R6, R17, R18
2
0603WAF270JT5E
27
R4, R5
8
FRC0603F1002TS
10k
R7, R9, R10, R11, R12, R13, R14, R15
1
0603WAF1000T5E
100
R8
1
0603WAF2201T5E
2.2k
R16

Ice core design files

The KiCad project lives in the enkhbold470/kicad-projects repository on GitHub; these links point at the commit this page was built from.

Ice core: common questions

What microcontroller does the Ice core use?

The Ice core is built around the RP2040, from the RP2040/RP2350 family.

How big is the Ice core PCB?

The Ice core measures 80 × 60 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the Ice core?

74 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ice core design files?

From the enkhbold470/kicad-projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ice core design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which enkhbold470 chose for the repository.

Can I test firmware for the Ice core without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
