Tankervision pdb

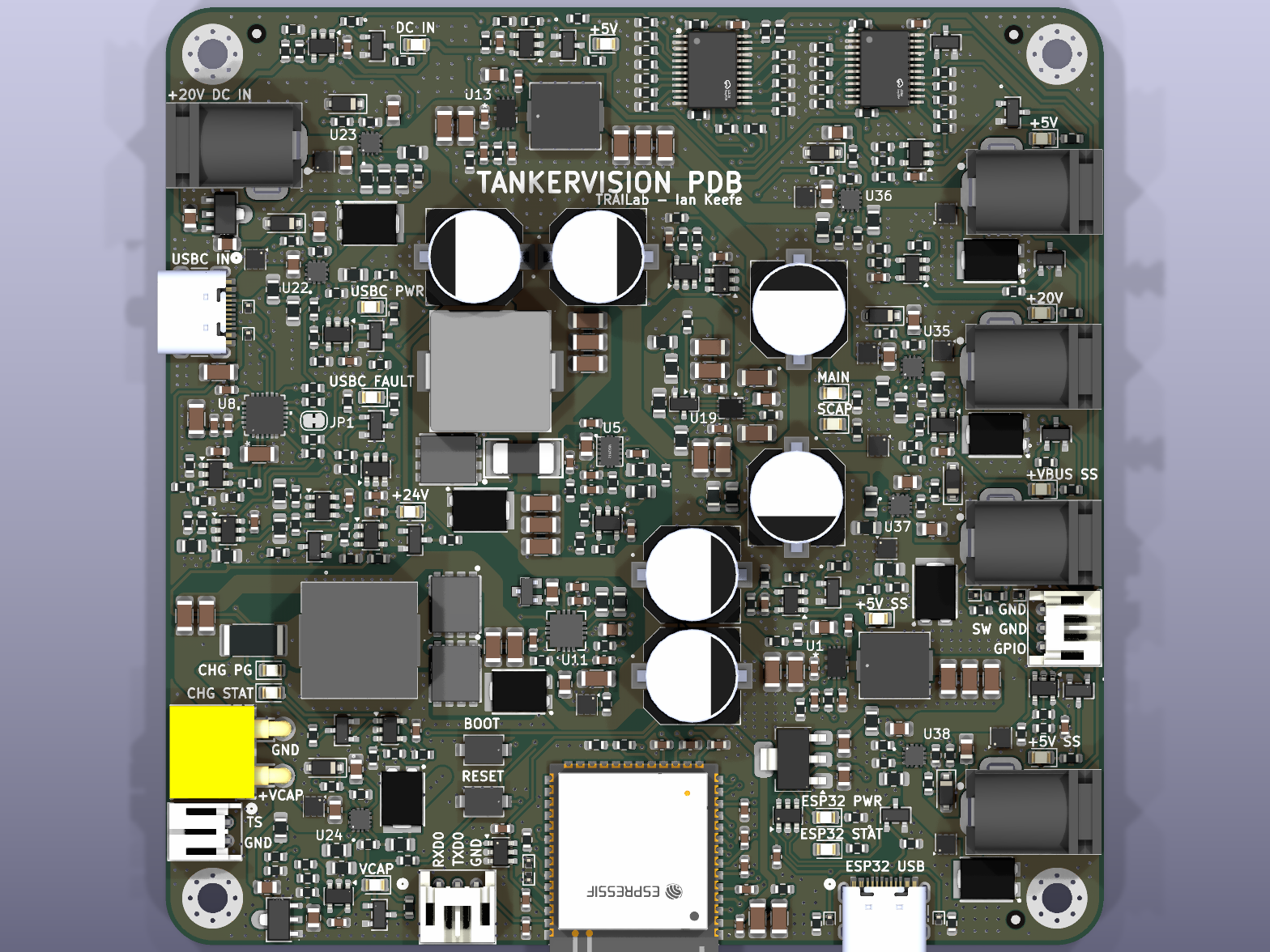

About the Tankervision pdb PCB
Tankervision pdb is an open source ESP32 PCB design by ikeefe12, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 444 components from 84 distinct parts.
Its main chip is the ESP32-S3-WROOM-1-N8R8, from the ESP32 family. Other key parts include the TPS51385RJNR, TVS2200DRVR, TS5A3159ADBVR, TLV7031DBVR and LM5155DSSR. By type, the board carries 197 resistors, 119 capacitors, 52 ICs, 41 diodes, 18 transistors and 11 connectors.
It belongs with the robotics & motion and power & battery designs in this gallery.
From the project
Four-layer KiCad power distribution board for the TankerVision robot: USB-C PD / barrel-jack input, supercapacitor-backed rail for clean Jetson shutdown, and four firmware-controlled protected output ports.
A four-layer KiCad power distribution board (PDB) for the TankerVision robot. It accepts USB-C PD or an 18.5–20 V DC barrel-jack input, maintains a supercapacitor-backed rail so an onboard NVIDIA Jetson can shut down cleanly after input loss, and exposes four independently protected, firmware-controlled output ports.
Designed in KiCad 9.0.7. Revision 1.0 was fabricated and assembled by JLCPCB in August 2026.
Main components on the Tankervision pdb
Tankervision pdb bill of materials (BOM)
444 components, 84 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-S3-WROOM-1-N8R8 Espressif Systems | ESP32S3WROOM1N8R8 | IC1 |
| 2 | TPS51385RJNR Texas Instruments | VQFN-HR12_RJN_TEX | U1, U13 |
| 7 | TVS2200DRVR Texas Instruments | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U2, U20, U21, U31, U33, U39, U41 |
| 5 | TS5A3159ADBVR Texas Instruments | SOT-23-6 | U3, U9, U12, U14, U25 |
| 14 | TLV7031DBVR Texas Instruments | SOT-23-5 | U4, U6, U7, U15, U16, U18, U27, U28 +6 |
| 1 | LM5155DSSR TI(德州仪器) | WSON-12_L3.0-W2.0-P0.50-BL-EP | U5 |
| 1 | CYPD3177-24LQXQT Infineon/Cypress Semicon | QFN24_CYPD3177-24LQXQT_INF | U8 |
| 1 | TVS2700DRVR Texas Instruments | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U10 |
| 1 | BQ24640RVAR Texas Instruments | RVA16_2P14X2P14 | U11 |
| 1 | USBLC6-2SC6 STMicroelectronics | SOT-23-6 | U17 |
| 1 | TPS2121RUXR TI(德州仪器) | VQFN-HR-12_L2.5-W2.0-P0.50-BL | U19 |
| 7 | LM73100RPWR Texas Instruments | IC_LM73100RPWR | U22, U23, U24, U35, U36, U37, U38 |
| 2 | TCA9535DBR TI(德州仪器) | SSOP-24_L8.1-W5.3-P0.65-LS7.8-BL | U26, U43 |
| 4 | TVS0500DRVR Texas Instruments | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U32, U34, U40, U42 |
| 1 | TLV1117LV33DCYR Texas Instruments | SOT-223-3_TabPin2 | U48 |
| 2 | TLV70933PKR TI(德州仪器) | SOT-89-3_L4.3-W2.3-P1.50-LS4.3-BR | U49, U50 |
| 1 | LM4040A25IDBZR Texas Instruments | SOT-23 | U51 |
| 3 | IPC50N04S5L5R5ATMA1 Infineon Technologies | PG-TDSON-8-FL_L5.0-W6.0-P1.27-LS6.2-BL | Q1, Q4, Q6 |
| 15 | 2N7002NXAKR Nexperia | TO-236AB_SOT23_NEX-M | Q2, Q3, Q5, Q7, Q8, Q9, Q10, Q11 +7 |
| 1 | XT30APW-M Changzhou Amass Elec | CONN-TH_XT30APW-M | CN1 |
Show 64 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TYPE-C-31-M-12 Korean Hroparts Elec | CONN12_C-31-M-12_HRO | J1, J2 |
| 2 | S3B-PH-K-S(LF)(SN) S3B-PH-K-S LFSN JST | CONN_S3B-PH-K-S_JST | J3, J5 |
| 1 | S2B-PH-K-S(LF)(SN) S2B-PH-K-SLFSN JST | CONN_S2B-PH-K-S_JST | J4 |
| 5 | PJ-202AH CUI | CUI_PJ-202AH | J6, J7, J8, J9, J10 |
| 2 | TS-1088-AR02016 XUNPU | SW_TS-1088_XNP-M | SW1, SW2 |
| 8 | PMEG060V100EPDZ Nexperia(安世) | SOT1289_L5.8-W4.4-LS6.5-RD | D1, D8, D20, D21, D30, D31, D32, D33 |
| 15 | XL-2012SURC-FJ LED Red XINGLIGHT | LED_0805_2012Metric | D2, D3, D6, D9, D12, D13, D16, D22 +7 |
| 4 | PESD5V0L1UL UMW(Youtai Semiconductor Co., Ltd.) | D_SOD-882 | D4, D5, D14, D15 |
| 2 | XL-2012UGC LED Green XINGLIGHT | LED_0805_2012Metric | D7, D25 |
| 1 | BAT54C,215 Nexperia | SOT-23 | D10 |
| 4 | PESD3V3S1UL,315 Nexperia | D_SOD-882 | D11, D17, D18, D19 |
| 7 | DDZ9678-7 Diodes Incorporated | D_SOD-123 | D26, D27, D28, D38, D39, D40, D41 |
| 1 | CYA1265-6.8UH SHOU HAN(首韩) | IND-SMD_L12.8-W12.8-LS13.8_CYA1265 | L1 |
| 2 | MWSA0603S-1R5MT 1.5uH Sunlord | IND_MWSA0603S_SNL-M | L2, L4 |
| 1 | SMDRI127-100MT 10uH SXN(Shun Xiang Nuo Elec) | SMDRI127100MT | L3 |
| 47 | CC0603KRX7R9BB104 100n YAGEO | C_0603_1608Metric | C1, C3, C4, C7, C19, C25, C28, C29 +39 |
| 7 | 1206B475K500NT 4u7 FH (Guangdong Fenghua Advanced Tech) | C_1206_3216Metric | C2, C16, C17, C18, C33, C34, C52 |
| 17 | CL31A106KBHNNNE 10u Samsung Electro-Mechanics | C_1206_3216Metric | C5, C6, C12, C13, C14, C40, C41, C51 +9 |
| 6 | EEHZA1H101V 100u PANASONIC | CAP_EEHZA1H101V | C8, C9, C10, C11, C78, C79 |
| 20 | CL21B105KBFNNNE 1u Samsung Electro-Mechanics | C_0805_2012Metric | C15, C26, C42, C45, C47, C75, C82, C83 +12 |
| 7 | CL31A226KAHNNNE 22u Samsung Electro-Mechanics | C_1206_3216Metric | C20, C21, C22, C37, C66, C67, C68 |
| 1 | 0603B103K500NT 10n FH (Guangdong Fenghua Advanced Tech) | C_0603_1608Metric | C23 |
| 2 | CL10C220JB8NNNC 22p Samsung Electro-Mechanics | C_0603_1608Metric | C24, C69 |
| 1 | 0603CG101F500NT 100p FH (Guangdong Fenghua Advanced Tech) | C_0603_1608Metric | C27 |
| 1 | CL10B224KA8NNNC 220n Samsung Electro-Mechanics | C_0603_1608Metric | C30 |
| 1 | GCM1885C2A221JA16D 220p Murata Electronics | C_0603_1608Metric | C31 |
| 1 | CL10B223KB8NNNC 22n Samsung Electro-Mechanics | C_0603_1608Metric | C32 |
| 1 | CL31B225KBHNNNE 2.2u Samsung Electro-Mechanics | C_1206_3216Metric | C43 |
| 5 | 0805B472K500NT 4.7n FH (Guangdong Fenghua Advanced Tech) | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C95, C98, C99, C106, C107 |
| 2 | 0805B333K500NT 33n FH (Guangdong Fenghua Advanced Tech) | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C108, C109 |
| 4 | 0603WAF3002T5E 30k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R1, R94, R148, R150 |
| 1 | 0603WAF2003T5E 200k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R2 |
| 4 | 0603WAF1503T5E 150k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R3, R41, R42, R51 |
| 4 | 0603WAF1000T5E 100 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R4, R47, R162, R164 |
| 3 | 0603WAF2002T5E 20k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R5, R39, R55 |
| 9 | 0603WAF1002T5E 10k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R6, R7, R11, R14, R26, R77, R137, R197 +1 |
| 29 | 0603WAF4992T5E 49.9k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R8, R17, R29, R37, R38, R49, R73, R75 +21 |
| 1 | HoLLR2512-2W-12mR-1% 12MR-1% Milliohm(毫欧) | RES-SMD_L6.4-W3.2_LR2512D-3W-1MR | R9 |
| 2 | RT0805BRE0747KL 47k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10, R69 |
| 29 | 0603WAF2201T5E 2k2 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R12, R13, R27, R28, R30, R31, R34, R35 +21 |
| 2 | 0603WAF1132T5E 11.3k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R15, R149 |
| 32 | 0603WAF1003T5E 100k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R16, R18, R19, R21, R24, R25, R56, R59 +24 |
| 1 | 0805W8F2001T5E 2k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R20 |
| 13 | 0603WAF1203T5E 120k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R22, R23, R64, R65, R70, R123, R125, R128 +5 |
| 1 | 0603WAF200KT5E 2 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R32 |
| 1 | 0603WAF100JT5E 10 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R33 |
| 1 | PCSR2512DR010M6 10m RESI | R_2512_6332Metric | R40 |
| 1 | RT0805BRD07300KL 300k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R43 |
| 17 | 0603WAF5101T5E 5.1k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R44, R48, R57, R58, R88, R90, R95, R98 +9 |
| 1 | 0805W8F1002T5E 10k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R45 |
| 1 | 0805W8F2002T5E 20k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R46 |
| 2 | RT0805BRD0734KL 34k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R50, R72 |
| 1 | RT0805BRD076K2L 6.2k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R62 |
| 2 | RT0805BRD07102KL 102k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R74, R89 |
| 1 | RT0805BRD075K62L 5.62k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R76 |
| 2 | RT0805BRD074K99L 4.99k YAGEO | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R80, R100 |
| 8 | 0805W8F8202T5E 82kΩ UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R82, R84, R87, R138, R139, R140, R141, R195 |
| 1 | 0805W8F4643T5E 464k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R83 |
| 6 | 0805W8F4873T5E 487k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R85, R86, R142, R143, R144, R145 |
| 3 | 0603WAF6201T5E 6.2k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R91, R93, R147 |
| 1 | 0805W8F7151T5E 7.15k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R92 |
| 5 | 0805W8F2702T5E 27k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R96, R102, R103, R156, R158 |
| 1 | 0603WAF2202T5E 22k UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R97 |
| 7 | 0603WAF8200T5E 820 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R122, R124, R127, R177, R180, R181, R187 |
Tankervision pdb design files
The KiCad project lives in the ikeefe12/tankervision-pdb repository on GitHub; these links point at the commit this page was built from.
Tankervision pdb: common questions
What microcontroller does the Tankervision pdb use?
The Tankervision pdb is built around the ESP32-S3-WROOM-1-N8R8, from the ESP32 family.
How big is the Tankervision pdb PCB?
The Tankervision pdb measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Tankervision pdb?
444 components, from 84 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tankervision pdb design files?
From the ikeefe12/tankervision-pdb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Tankervision pdb design in my own project?
The repository has no license, so all rights stay with ikeefe12. Use it as a reference, and ask the author before reusing the design.
