Stargazer Camera Board MK2.1

ISSUIUC·ISS-PCB·boards/CAM-MK2/CAM-MK2.1-revA/CAM-MK2.1.kicad_pcb

Stargazer Camera Board MK2.1 layout, top view — open source ESP32 board by ISSUIUC

About the Stargazer Camera Board MK2.1

Stargazer Camera Board MK2.1 is an open source ESP32 PCB design by ISSUIUC, published on GitHub. It is a 4-layer board measuring 40 × 40 mm, with 108 components from 57 distinct parts.

Its main chip is the ESP32-S3-MINI-1U, from the ESP32 family. Other key parts include the ECMF02-2AMX6, MCP2518FDT-xSL, TPSM863252, TPS61288 and TCAN337G. By type, the board carries 49 resistors, 28 capacitors, 10 ICs, 9 connectors, 6 diodes and 3 test points.

It belongs with the sensors designs in this gallery.

From the project

Building custom flight computers

The CAM series of custom camera control boards is intended to power and command onboard RunCam FPV cameras for reliable recording of onboard rocket footage.

Bouncing back from the failure of CAM MK1, the team’s onboard video system saw a big leap forward with the success of CAM MK2. In addition to shrinking board size by 33%, MK2 features revamped power circuitry and additional camera control features, making it more flexible as it seeks to ensure proper operation of the vehicle’s cameras for the collection of visual data on in-flight events (and capturing some really cool views). Closely…

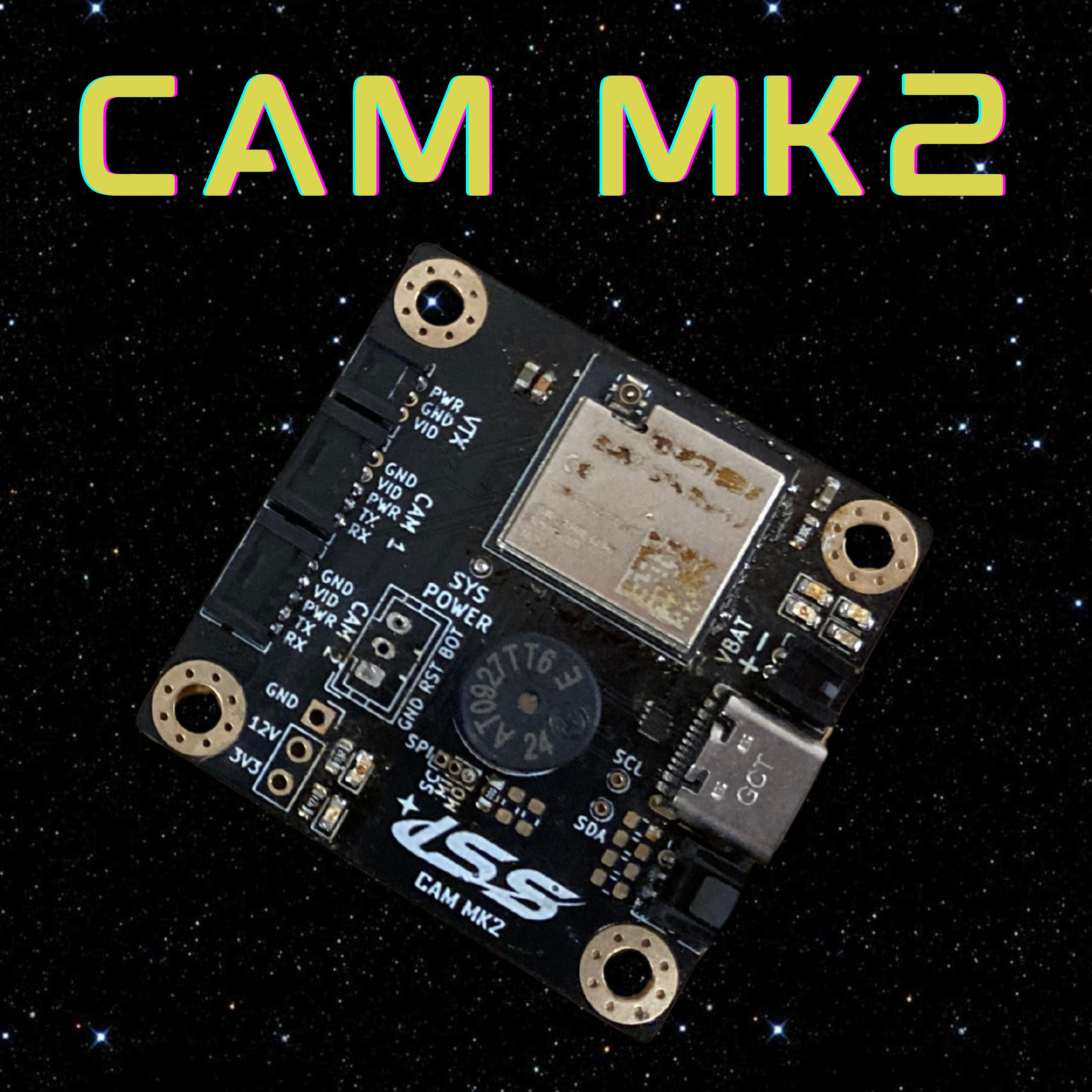

Stargazer Camera Board MK2.1, from the project README
From the project README

Main components on the Stargazer Camera Board MK2.1

ECMF02-2AMX6MCP2518FDT-xSLTPSM863252TPS61288TCAN337GINA745xADG752BRTTPS2121ESP32-S3-MINI-1UTPS274160B

Stargazer Camera Board MK2.1 bill of materials (BOM)

108 components, 57 distinct parts.

QtyPartRefs
1
ECMF02-2AMX6
U101
1
MCP2518FDT-xSL
U102
1
TPSM863252
U103
1
TPS61288
U104
1
TCAN337G
U105
1
INA745x
U106
1
ADG752BRT
U107
1
TPS2121
U108
1
ESP32-S3-MINI-1U
U109
1
TPS274160B
U111
1
40MHz
Y101
1
USB4105-GF-A
J101
1
2157601002
J102
2
Conn_01x03
J103, J105
2
Conn_01x05
J104, J106
1
Conn_01x03
J107
1
Conn_01x03
J108
1
Conn_01x03
J109
1
Buzzer
BZ101
3
TestPoint
TP101, TP102, TP103
Show 37 more
QtyPartRefs
2
RED LED
D101, D104
2
ORANGE LED
D102, D105
1
GREEN LED
D106
1
BLUE LED
D107
1
4.7uH
L101
3
22pF
C101, C102, C111
2
10uF
C103, C104
10
0.1uF
C105, C106, C108, C110, C114, C116, C121, C123 +2
1
10nF
C107
1
2.2uF
C109
1
47nF
C112
1
27pF
C113
1
33uF
C115
2
47uF
C117, C118
2
1uF
C119, C120
1
22uF
C122
3
22nF
C125, C126, C127
1
22.1k
R101
12
10k
R102, R103, R104, R108, R116, R123, R124, R126 +4
2
5.1k
R105, R106
1
14.3k
R107
1
135k
R109
1
30k
R110
1
931k
R111
1
48.7k
R112
5
470
R113, R141, R142, R143, R144
1
120
R114
1
3.3k
R115
2
4.7k
R117, R122
8
0
R118, R119, R120, R121, R131, R137, R138, R139
2
36k
R125, R136
1
12k
R127
1
75k
R129
4
220
R132, R133, R134, R135
1
20k
R140
2
2.2k
R145, R146
1
680
R148

Stargazer Camera Board MK2.1 design files

The KiCad project lives in the ISSUIUC/ISS-PCB repository on GitHub; these links point at the commit this page was built from.

Stargazer Camera Board MK2.1: common questions

What microcontroller does the Stargazer Camera Board MK2.1 use?

The Stargazer Camera Board MK2.1 is built around the ESP32-S3-MINI-1U, from the ESP32 family.

How big is the Stargazer Camera Board MK2.1?

The Stargazer Camera Board MK2.1 measures 40 × 40 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Stargazer Camera Board MK2.1?

108 components, from 57 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stargazer Camera Board MK2.1 design files?

From the ISSUIUC/ISS-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stargazer Camera Board MK2.1 design in my own project?

The repository has no license, so all rights stay with ISSUIUC. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stargazer Camera Board MK2.1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
