TableLight

jonny190·TableLight·hardware/pcb/kicad/tablelight.kicad_pcb

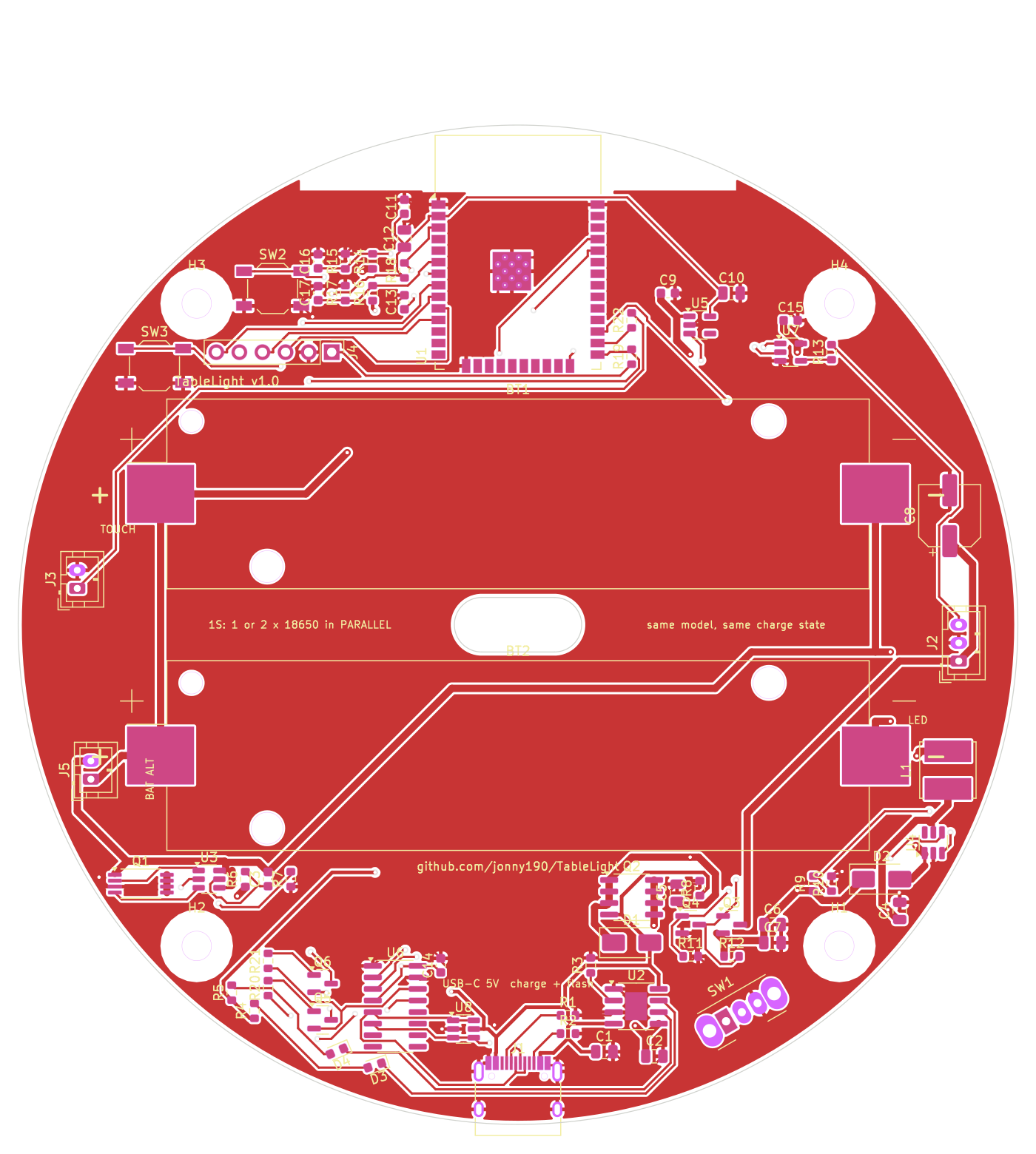

TableLight PCB layout, top view — open source ESP32 board by jonny190
Simulate this board

About the TableLight PCB

TableLight is an open source ESP32 PCB design by jonny190, published on GitHub under the MIT license. It is a 2-layer board measuring 110 × 110 mm, with 68 components from 41 distinct parts.

Its main chip is the ESP32-WROOM-32E-N4, from the ESP32 family. Other key parts include the TP4056, DW01A, MT3608, AP2112K-3.3 and CH340C. By type, the board carries 22 resistors, 17 capacitors, 8 ICs, 6 transistors, 5 connectors and 4 diodes.

It belongs with the power & battery designs in this gallery.

From the project

Round Ø110 mm, 2 layer, 1.6 mm FR4. Lives in the base, components facing down, screwed to four bosses under the base deck. One board does everything: charging, protection, boost, ESP32 + WLED, USB flashing, LED power switching, touch input, battery sensing.

Round Ø110 mm, 2 layer, 1.6 mm FR4. Lives in the base, components facing down, screwed to four bosses under the base deck. One board does everything: charging, protection, boost, ESP32 + WLED, USB flashing, LED power switching, touch input, battery sensing.

Ready to order: fab/tablelight-gerbers.zip (+ fab/tablelight-bom.csv, fab/tablelight-cpl.csv for assembly). Ordering parameters and a pre-order checklist are in fab/README.md. The KiCad 7 board is kicad/tablelight.kicadpcb`: hand-placed, autorouted (freerouting, 2 layers, 58 vias), GND pours both sides, KiCad DRC clean (0 unconnected, 0…

TableLight, from the project README
From the project README

Main components on the TableLight

ESP32-WROOM-32E-N4TP4056DW01AMT3608AP2112K-3.3CH340C74AHCT1G125USBLC6-2SC6

TableLight bill of materials (BOM)

68 components, 41 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM-32E-N4
U1
1
TP4056
U2
1
DW01A
U3
1
MT3608
U4
1
AP2112K-3.3
U5
1
CH340C
U6
1
74AHCT1G125
U7
1
USBLC6-2SC6
U8
1
FS8205A
Q1
1
AO4407A
Q2
1
AO3401A
Q3
1
2N7002
Q4
2
MMBT3904
Q5, Q6
1
USB-C 16P
J1
1
LED RING
J2
1
TOUCH
J3
1
EXP
J4
1
BAT ALT
J5
1
18650
BT1
1
18650 (optional 2nd cell)
BT2
Show 21 more
QtyPartRefs
1
POWER
SW1
1
RESET
SW2
1
BOOT
SW3
2
SS34
D1, D2
1
RED
D3
1
GREEN
D4
1
4.7uH 4A
L1
4
10uF 10V
C1, C2, C10, C12
6
100nF
C3, C11, C14, C15, C16, C17
4
22uF 10V
C4, C5, C6, C7
1
100uF 6.3V
C8
2
1uF
C9, C13
2
5.1k
R1, R2
1
1.2k
R3
4
1k
R4, R5, R7, R22
1
100R
R6
6
100k
R8, R11, R14, R15, R16, R17
1
75k
R9
4
10k
R10, R12, R18, R19
1
330R
R13
2
12k
R20, R21

TableLight design files

The KiCad project lives in the jonny190/TableLight repository on GitHub; these links point at the commit this page was built from.

TableLight: common questions

What microcontroller does the TableLight use?

The TableLight is built around the ESP32-WROOM-32E-N4, from the ESP32 family.

How big is the TableLight PCB?

The TableLight measures 110 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TableLight?

68 components, from 41 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TableLight design files?

From the jonny190/TableLight repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TableLight design in my own project?

Yes, under the terms of its MIT license, which jonny190 chose for the repository.

Can I test firmware for the TableLight without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
