2164 SVF plug in board
About the 2164 SVF plug in board
2164 SVF plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 52 components from 36 distinct parts.
Other key parts include the LM13700, TL072 and SSI2162. By type, the board carries 18 capacitors, 16 resistors, 6 diodes, 5 connectors and 4 ICs.
It belongs with the audio designs in this gallery.
From the project
Various small synthesizer Voltage Controlled Filter pcbs
Small SSM/V/SSI2164 based state variable filter PCB, designed to plug into a larger motherboard.
2164 based SVF with low pass, band pass, and high pass modes available. This PCB includes the audio path and CV inputs for frequency and feedback, but does not include any modulation sources.
The intended use for this board is to plug in to a larger motherboard which contains slots for one or more of these plug-in boards, as well as modulation sources, panel controls, and input/output routing.

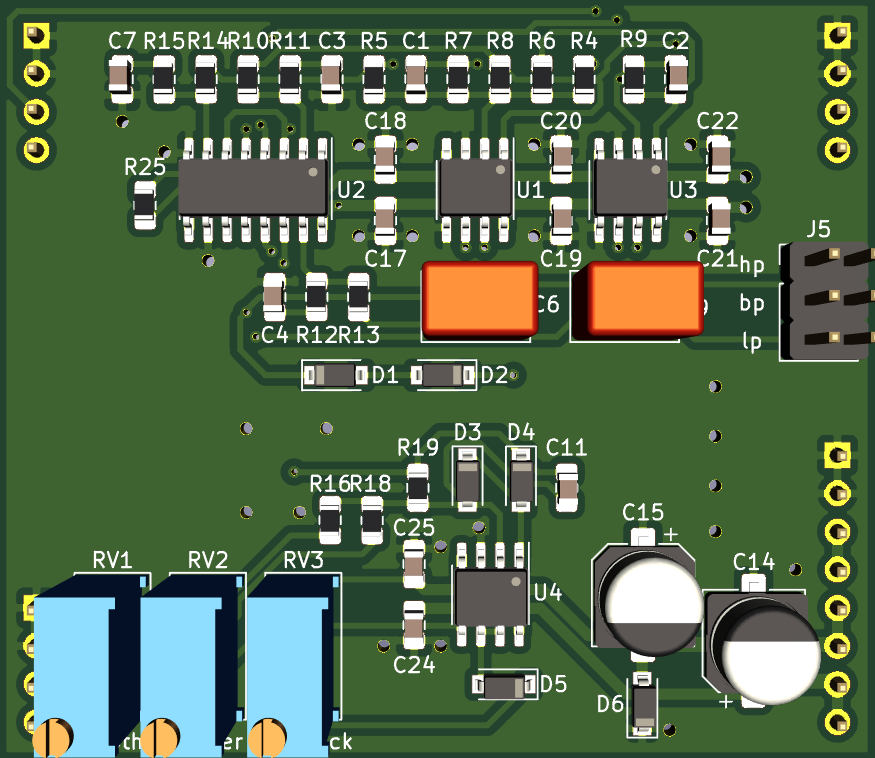

Main components on the 2164 SVF plug in board
2164 SVF plug in board bill of materials (BOM)
52 components, 36 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM13700 TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | TL072 SSM2164 | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 1 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | SSI2162 TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | signal_input | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | cutoff_CV_input | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | signal_output | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | feedback_CV_and_PS | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | mode_select_jumper | PinHeader_2x03_P2.54mm_Vertical | J5 |
| 3 | 10k | Potentiometer_Bourns_3296W_Vertical | RV1, RV2, RV3 |
| 2 | 1N4148W 5z1 | D_SOD-123 | D1, D2 |
| 2 | 1N4148W | D_SOD-123 | D3, D4 |
| 2 | 1N4148W BAT48 | D_SOD-123 | D5, D6 |
| 1 | 47pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 1 | 100pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2 |
| 1 | 470N 560pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C3 |
| 1 | 100P 560pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4 |
| 1 | 220pF | timing_cap_dual_fp | C6 |
| 1 | 560pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C7 |
| 1 | 10U 220pF | timing_cap_dual_fp | C9 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100N 100pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C11 |
| 2 | 100N 10uF | CP_Elec_6.3x5.4_Nichicon | C14, C15 |
| 2 | 100N 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C17, C18 |
| 6 | 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C19, C20, C21, C22, C24, C25 |
| 2 | 220 30k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R4, R9 |
| 1 | 10K 150k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5 |
| 1 | 10K 15k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R6 |
| 4 | 10K 30k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R7, R8, R13, R14 |
| 1 | 1K8 30k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R10 |
| 1 | 10K 510 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R11 |
| 1 | 220 510 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R12 |
| 1 | 150K 510 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R15 |
| 1 | 15K 20k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R16 |
| 1 | 270 68k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R18 |
| 1 | 15K 22k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R19 |
| 1 | 150K opt | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R25 |
2164 SVF plug in board design files
The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.
2164 SVF plug in board: common questions
How big is the 2164 SVF plug in board?
The 2164 SVF plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 2164 SVF plug in board?
52 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 2164 SVF plug in board design files?
From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 2164 SVF plug in board design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
