Haible tau phaser plug in board

JordanAceto·VCF_plug_in_boards·haible_tau_phaser_plug_in_board/kicad_docs/haible_tau_phaser_plug_in_board.kicad_pcb

Haible tau phaser plug in board layout, top view — open source board by JordanAceto

About the Haible tau phaser plug in board

Haible tau phaser plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 139 components from 61 distinct parts.

Other key parts include the LM13700, TL072 and SSI2162. By type, the board carries 55 capacitors, 43 resistors, 28 transistors, 5 ICs, 4 connectors and 1 diode.

It belongs with the audio designs in this gallery.

From the project

Various small synthesizer Voltage Controlled Filter pcbs

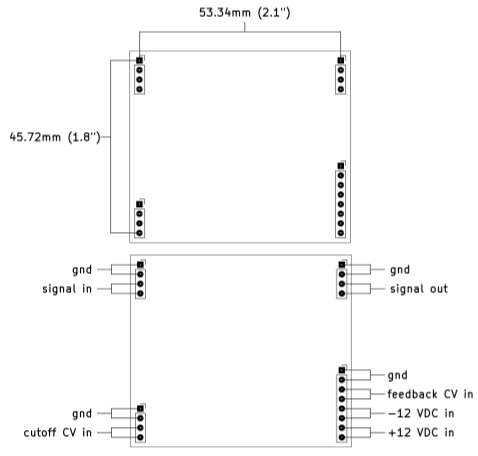

- #### These small VCF "plug-in" boards each contain a filter "core". These are intended to be plugged into a motherboard which provides a +/- 12 volt power supply, input/output circuitry, and control voltage sources. - #### They all share an identical mechanical and electrical format. - #### The intended use is to make a bunch of different filters and then be able to easily try them out by swapping the filter plug-in boards into the motherboard.

Haible tau phaser plug in board, from the project README
From the project README

Main components on the Haible tau phaser plug in board

LM13700TL072SSI2162

Haible tau phaser plug in board bill of materials (BOM)

139 components, 61 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM13700
TL072
U1
1
TL072
OPA2134
U2
1
TL072
U3
1
SSI2162
TL072
U4
1
TL072
U5
1
MMBT3906
BC857
Q1
1
MMBT3906
BC847
Q2
22
BCM847DS135
Q3, Q5, Q6, Q7, Q8, Q9, Q10, Q11 +14
3
BC847
Q4, Q25, Q26
1
BC857
Q27
3
Conn_01x04_Male
J1, J2, J3
1
Conn_01x08_Male
J4
1
10k
RV1
2
50k
RV2, RV3
1
1N4148W
1n5225B
D1
1
10pF
C1
3
220nF
C2, C7, C48
1
470N
33pF
C3
1
100P
33pF
C4
4
2n2
C5, C6, C52, C53
Show 41 more
QtyPartRefs
1
4N7
15nF
C8
2
10U
15nF
C9, C10
8
100N
15nF
C11, C12, C13, C14, C15, C16, C17, C18
29
15nF
C19, C20, C21, C22, C23, C24, C25, C26 +21
1
33pF
C49
2
1uF
C50, C51
1
10nF
C54
1
10uF
C55
3
10K
100k
R1, R3, R6
1
220
100k
R2
1
220
7k5
R4
1
10K
680k
R5
1
10K
220
R7
1
10K
47k
R8
1
220
47k
R9
1
1K8
220
R10
1
10K
220k
R11
1
220
220k
R12
2
10K
22M
R13, R14
1
150K
390
R15
1
15K
3k
R16
1
4K7
3k
R17
2
270
3k3
R18, R21
1
15K
3k3
R19
1
270K
3k3
R20
1
51K
18k
R22
1
4K7
18k
R23
1
10K
470k
R24
1
150K
100k
R25
1
1K8
100k
R26
1
470K
100k
R27
1
4K7
220k
R28
2
100k
R29, R30
2
30k
R31, R32
2
18k
R33, R34
2
3k3
R35, R36
1
470
R37
2
100
R38, R39
1
22M
R40
1
220k
R41
2
1k5
R42, R43

Haible tau phaser plug in board design files

The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.

Haible tau phaser plug in board: common questions

How big is the Haible tau phaser plug in board?

The Haible tau phaser plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Haible tau phaser plug in board?

139 components, from 61 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Haible tau phaser plug in board design files?

From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Haible tau phaser plug in board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
