SSI2164 LPF plug in board

JordanAceto·VCF_plug_in_boards·2164_4_pole_LPF_plug_in_board/kicad_docs/four_pole_lpf.kicad_pcb

SSI2164 LPF plug in board layout, top view — open source board by JordanAceto

Simulate this board

About the SSI2164 LPF plug in board

SSI2164 LPF plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a board measuring 58.4 × 50.8 mm, with 70 components from 48 distinct parts.

Other key parts include the LM13700, TL072, SSI2162 and SSI2164. By type, the board carries 28 resistors, 26 capacitors, 6 ICs, 4 connectors and 3 diodes.

It belongs with the audio designs in this gallery.

From the project

Various small synthesizer Voltage Controlled Filter pcbs

Small SSI2164 based low pass filter PCB, designed to plug into a larger motherboard.

This pcb uses the 4-pole band-pass feedback as a means of Q-compensation as outlined in application note AN701.

Voltage controlled feedback is provided, consistent with the other filter plug-in boards.

Construction documents for the low cost pcb assembly service from JLCPCB are included. A few parts are not included in the assembly documents, such as the through hole components, the SSI2164 chips, and also the 220pf timing capacitors for the filter stages. These are left to the builder to install. These…

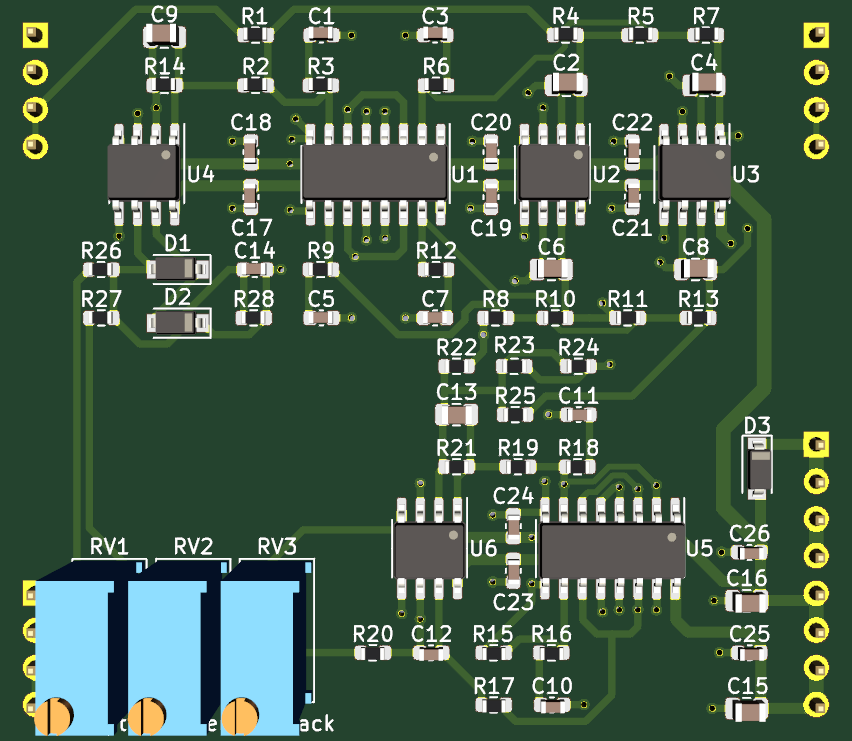

SSI2164 LPF plug in board, from the project README — From the project README

Main components on the SSI2164 LPF plug in board

LM13700 TL072 SSI2162 SSI2164

SSI2164 LPF plug in board bill of materials (BOM)

70 components, 48 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	LM13700 SSI2164	SOIC-16_3.9x9.9mm_P1.27mm	U1
2	TL072	SOIC-8_3.9x4.9mm_P1.27mm	U2, U3
1	SSI2162 TL072	SOIC-8_3.9x4.9mm_P1.27mm	U4
1	SSI2164	SOIC-16_3.9x9.9mm_P1.27mm	U5
1	TL072	SOIC-8_3.9x4.9mm_P1.27mm	U6
1	signal_in	PinHeader_1x04_P2.54mm_Vertical	J1
1	CV_in	PinHeader_1x04_P2.54mm_Vertical	J2
1	signal_out	PinHeader_1x04_P2.54mm_Vertical	J3
1	feedback_CV_and_power	PinHeader_1x08_P2.54mm_Vertical	J4
3	50k	Potentiometer_Bourns_3296W_Vertical	RV1, RV2, RV3
2	1N4148W	D_SOD-123	D1, D2
1	1N4148W BAT48	D_SOD-123	D3
1	4n7	C_0603_1608Metric	C1
2	220pF	C_0805_2012Metric	C2, C6
1	470N 1n5	C_0603_1608Metric	C3
1	100P 220pF	C_0805_2012Metric	C4
2	1n5	C_0603_1608Metric	C5, C7
1	4N7 220pF	C_0805_2012Metric	C8
1	10U opt	C_0805_2012Metric	C9
1	10U 1n2	C_0603_1608Metric	C10

Show 28 more

Qty	Part	Footprint	Refs
1	100N 3n3	C_0603_1608Metric	C11
1	100N 1n2	C_0603_1608Metric	C12
1	100N opt	C_0805_2012Metric	C13
1	100N 100pF	C_0603_1608Metric	C14
2	100N 10uF	C_0805_2012Metric	C15, C16
2	100N 100nF	C_0603_1608Metric	C17, C18
8	100nF	C_0603_1608Metric	C19, C20, C21, C22, C23, C24, C25, C26
6	10K 15k	R_0603_1608Metric	R1, R5, R7, R8, R11, R13
1	220 3k3	R_0603_1608Metric	R2
1	10K 47R	R_0603_1608Metric	R3
1	220 15k	R_0603_1608Metric	R4
1	10K 180	R_0603_1608Metric	R6
2	220 180	R_0603_1608Metric	R9, R12
1	1K8 15k	R_0603_1608Metric	R10
2	10K 10k	R_0603_1608Metric	R14, R24
1	150K 270k	R_0603_1608Metric	R15
1	15K 220	R_0603_1608Metric	R16
1	4K7 4k7	R_0603_1608Metric	R17
1	270 82R	R_0603_1608Metric	R18
1	15K 10k	R_0603_1608Metric	R19
1	270K 51k	R_0603_1608Metric	R20
1	270 10k	R_0603_1608Metric	R21
1	51K 10k	R_0603_1608Metric	R22
1	4K7 10k	R_0603_1608Metric	R23
1	150K 10k	R_0603_1608Metric	R25
1	1K8 100k	R_0603_1608Metric	R26
1	470K 680k	R_0603_1608Metric	R27
1	4K7 150k	R_0603_1608Metric	R28

SSI2164 LPF plug in board design files

The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.

SSI2164 LPF plug in board: common questions

How big is the SSI2164 LPF plug in board?

The SSI2164 LPF plug in board measures 58.4 × 50.8 mm and is 1.6 mm thick.

How many components are on the SSI2164 LPF plug in board?

70 components, from 48 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SSI2164 LPF plug in board design files?

From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the SSI2164 LPF plug in board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
