Mutron III plug in board
About the Mutron III plug in board
Mutron III plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 51 components from 44 distinct parts.
Other key parts include the LM13700, TL072, SSI2162 and vactrol. By type, the board carries 24 resistors, 9 capacitors, 5 ICs, 5 connectors, 3 transistors and 2 diodes.
It belongs with the audio designs in this gallery.
From the project
Various small synthesizer Voltage Controlled Filter pcbs

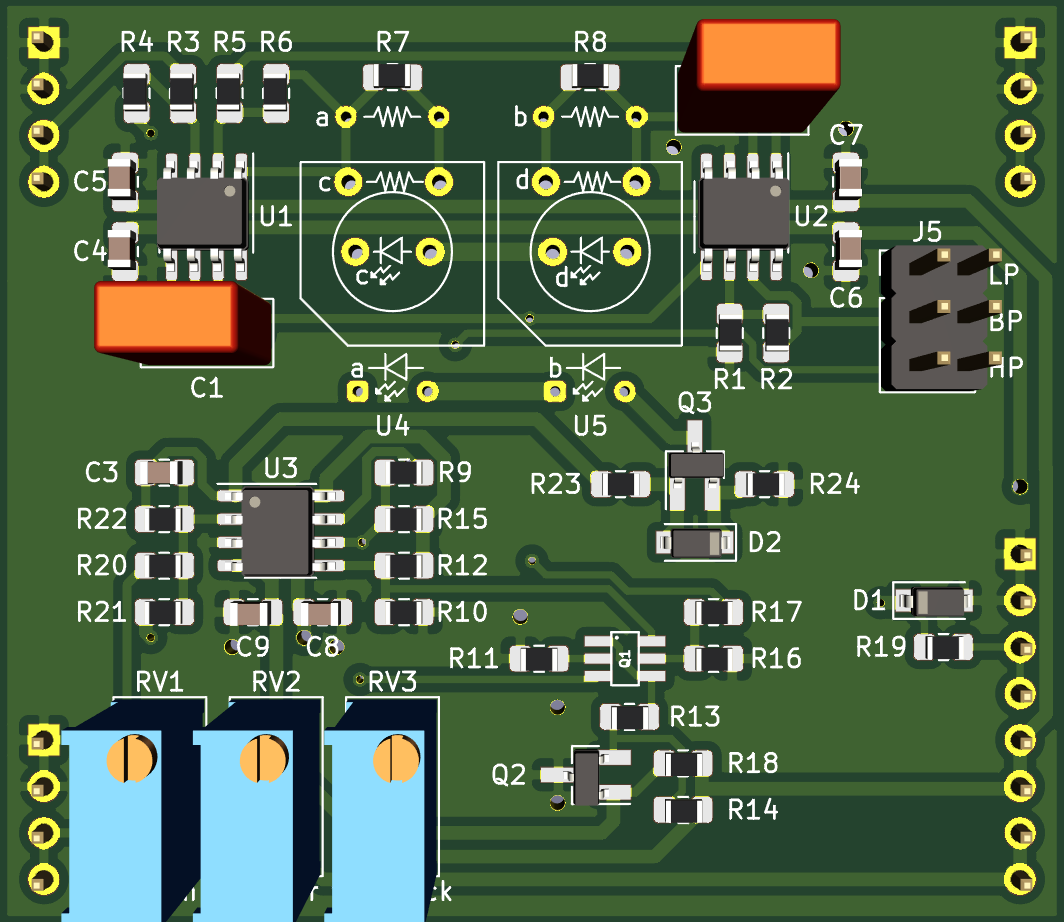

Small Mutron-III based state variable filter PCB, designed to plug into a larger motherboard.
Mutron-III based SVF. This PCB includes the audio path and CV inputs for frequency and feedback, but does not include any modulation sources.
The intended use for this board is to plug in to a larger motherboard which contains slots for one or more of these plug-in boards, as well as modulation sources, panel controls, and input/output routing.
Main components on the Mutron III plug in board
Mutron III plug in board bill of materials (BOM)
51 components, 44 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM13700 RC4558 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | TL072 RC4558 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | SSI2162 vactrol | vactrol_dual_footprint | U4 |
| 1 | vactrol | vactrol_dual_footprint | U5 |
| 1 | MMBT3906 BCM847 | SOT457 | Q1 |
| 1 | MMBT3906 MMBT3904 | SOT-23_Handsoldering | Q2 |
| 1 | MMBT3906 | SOT-23_Handsoldering | Q3 |
| 1 | signal_in | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | cutoff_CV_in | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | signal_out | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | feedback_CV_in_and_PS | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | mode_select_jumper | PinHeader_2x03_P2.54mm_Vertical | J5 |
| 1 | 10k | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 2 | 100k | Potentiometer_Bourns_3296W_Vertical | RV2, RV3 |
| 1 | 1N4148W MMSZ5225B | D_SOD-123 | D1 |
| 1 | 1N4148W 1N914 | D_SOD-123 | D2 |
| 2 | 47nF | C_Rect_L7.0mm_W3.5mm_P5.00mm | C1, C2 |
| 1 | 470N 100pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C3 |
| 1 | 100P 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C5, C6, C7 |
| 1 | 4N7 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C8 |
| 1 | 10U 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C9 |
| 1 | 10K 51k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1 |
| 1 | 220 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R2 |
| 1 | 10K 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R3 |
| 1 | 220 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R4 |
| 2 | 10K 22k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5, R6 |
| 2 | 10K 680k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R7, R8 |
| 1 | 220 220k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R9 |
| 1 | 1K8 220k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R10 |
| 1 | 10K 220 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R11 |
| 1 | 220 47k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R12 |
| 2 | 10K 15k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R13, R14 |
| 1 | 150K 47k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R15 |
| 1 | 15K 220 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R16 |
| 1 | 4K7 33k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R17 |
| 1 | 270 220k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R18 |
| 1 | 15K 7k5 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R19 |
| 1 | 270K 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R20 |
| 1 | 270 1M | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R21 |
| 1 | 51K 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R22 |
| 1 | 4K7 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R23 |
| 1 | 10K 100 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R24 |
Mutron III plug in board design files
The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.
Mutron III plug in board: common questions
How big is the Mutron III plug in board?
The Mutron III plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mutron III plug in board?
51 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mutron III plug in board design files?
From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Mutron III plug in board design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
