Optical phasor plug in board

JordanAceto·VCF_plug_in_boards·optical_phasor_plug_in_board/kicad_docs/optical_phasor_plug_in_board.kicad_pcb

Optical phasor plug in board layout, top view — open source board by JordanAceto
Simulate this board

About the Optical phasor plug in board

Optical phasor plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 89 components from 60 distinct parts.

Other key parts include the LM13700, TL072, SSI2162 and RC4558. By type, the board carries 48 resistors, 20 capacitors, 6 ICs, 5 transistors, 4 connectors and 3 diodes.

It belongs with the audio designs in this gallery.

From the project

Various small synthesizer Voltage Controlled Filter pcbs

Small 6 stage optical phase shifter PCB, designed to plug into a larger motherboard.

The main circuit is based on the famous Mutron phasor circuit with the addition of voltage controlled feedback. This PCB includes the audio path and CV inputs for frequency and feedback, but does not include any modulation sources.

The intended use for this board is to plug in to a larger motherboard which contains slots for one or more of these phasor boards, as well as modulation sources, panel controls, and input/output routing.

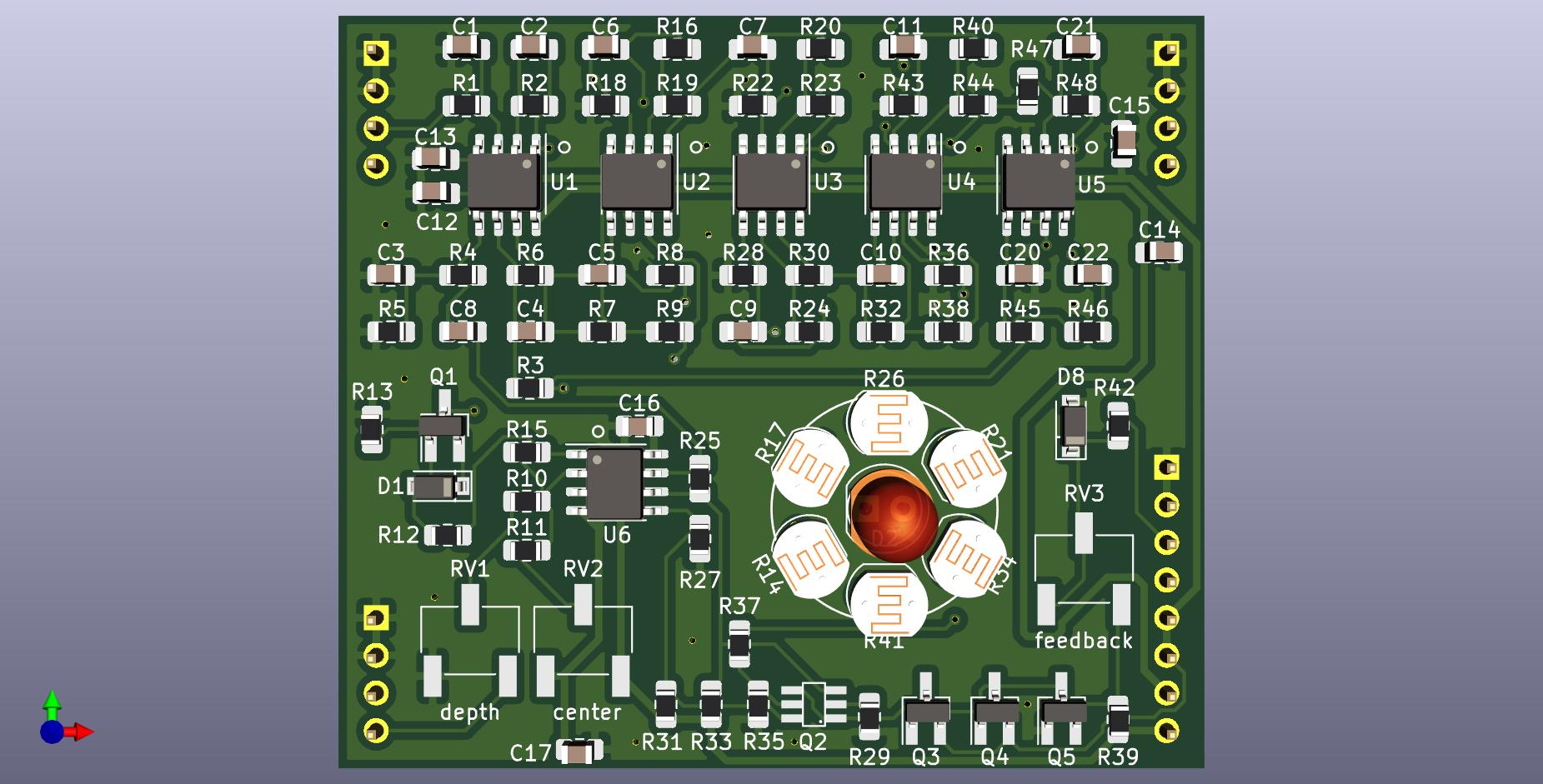

Optical phasor plug in board, from the project README
From the project README

Main components on the Optical phasor plug in board

LM13700TL072SSI2162RC4558

Optical phasor plug in board bill of materials (BOM)

89 components, 60 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM13700
RC4558
U1
2
TL072
RC4558
U2, U3
1
SSI2162
RC4558
U4
1
RC4558
U5
1
TL072
U6
1
MMBT3906
Q1
1
MMBT3906
BCM847DS135
Q2
2
MMBT3904
Q3, Q4
1
MMBT3906
Q5
3
Conn_01x04_Male
J1, J2, J3
1
Conn_01x08_Male
J4
1
10k
RV1
1
100k
RV2
1
50k
RV3
1
1N4148W
1N914
D1
1
1N4148W
green_diffused
D2
1
1N5225B
D8
1
33pF
C1
1
100nF
C2
1
470N
3n3
C3
Show 40 more
QtyPartRefs
1
100P
1nF
C4
3
6n8
C5, C6, C7
1
4N7
470nF
C8
2
10U
6n8
C9, C10
1
100N
6n8
C11
6
100N
100nF
C12, C13, C14, C15, C16, C17
1
470pF
C20
1
1n
C21
1
220nF
C22
1
10K
3k9
R1
1
220
390k
R2
4
10K
4k7
R3, R6, R7, R24
1
220
8k2
R4
2
10K
220k
R5, R8
1
220
4k7
R9
1
1K8
???
R10
2
10K
???
R11, R13
1
220
10k
R12
1
10K
LDR
R14
1
150K
???
R15
2
15K
4k7
R16, R19
1
4K7
LDR
R17
1
270
220k
R18
1
270K
4k7
R20
1
270
LDR
R21
1
51K
220k
R22
1
4K7
4k7
R23
1
150K
220k
R25
1
1K8
LDR
R26
1
470K
220k
R27
1
4K7
220k
R28
2
220R
R29, R35
8
4k7
R30, R32, R38, R40, R44, R46, R47, R48
2
47k
R31, R33
2
LDR
R34, R41
2
220k
R36, R43
1
100k
R37
1
680k
R39
1
7k5
R42
1
12k
R45

Optical phasor plug in board design files

The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.

Optical phasor plug in board: common questions

How big is the Optical phasor plug in board?

The Optical phasor plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Optical phasor plug in board?

89 components, from 60 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Optical phasor plug in board design files?

From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Optical phasor plug in board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
