Late MS20 VCF plug in board

JordanAceto·VCF_plug_in_boards·late_MS20_VCF_plug_in_board/kicad_6/late_MS20_VCF_plug_in_board.kicad_pcb

Late MS20 VCF plug in board layout, top view — open source board by JordanAceto
Simulate this board

About the Late MS20 VCF plug in board

Late MS20 VCF plug in board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 66 components from 28 distinct parts.

Other key parts include the LM13700, TL072 and SSI2162. By type, the board carries 28 resistors, 18 capacitors, 6 diodes, 5 connectors, 4 ICs and 2 transistors.

It belongs with the audio designs in this gallery.

From the project

Various small synthesizer Voltage Controlled Filter pcbs

Small MS20 based low pass/high pass filter PCB, designed to plug into a larger motherboard.

MS20 based LPF/HPF with voltage controlled feedback. This PCB includes the audio path and CV inputs for frequency and feedback, but does not include any modulation sources.

The intended use for this board is to plug in to a larger motherboard which contains slots for one or more of these plug-in boards, as well as modulation sources, panel controls, and input/output routing.

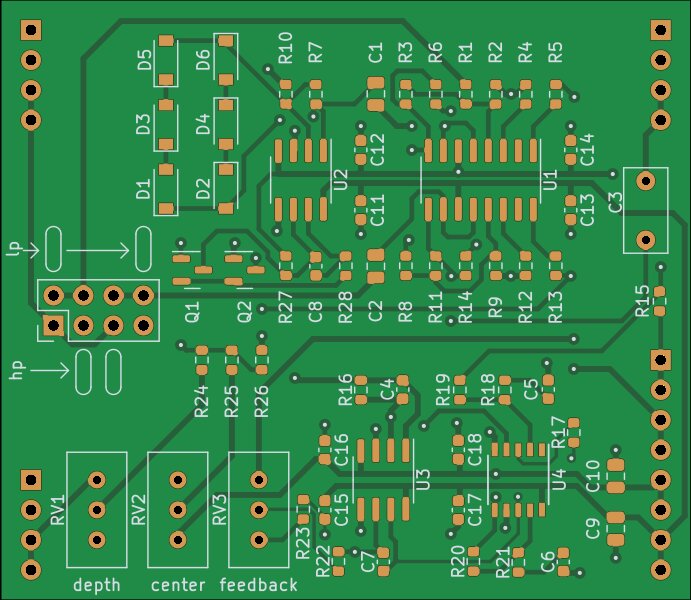

Late MS20 VCF plug in board, from the project README
From the project README

Main components on the Late MS20 VCF plug in board

LM13700TL072SSI2162

Late MS20 VCF plug in board bill of materials (BOM)

66 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM13700
U1
2
TL072
U2, U3
1
SSI2162
U4
2
MMBT3906
Q1, Q2
1
signal_in
J1
1
CV_in
J2
1
signal_out
J3
1
feedback_CV_and_PS
J4
1
hp_lp_jumper
J5
3
5k
RV1, RV2, RV3
6
1N4148W
D1, D2, D3, D4, D5, D6
2
1n COG
C1, C2
1
470n
C3
1
100P
100p
C4
3
1n
C5, C6, C7
1
4N7
4n7
C8
2
10U
10u
C9, C10
8
100N
100n
C11, C12, C13, C14, C15, C16, C17, C18
10
10K
10k
R1, R3, R5, R6, R7, R8, R11, R13 +2
4
220
R2, R4, R9, R12
Show 8 more
QtyPartRefs
2
1K8
1k8
R10, R26
2
150K
150k
R15, R25
2
15K
15k
R16, R19
3
4K7
4k7
R17, R23, R28
2
270
R18, R21
1
270K
270k
R20
1
51K
51k
R22
1
470K
470k
R27

Late MS20 VCF plug in board design files

The KiCad project lives in the JordanAceto/VCF_plug_in_boards repository on GitHub; these links point at the commit this page was built from.

Late MS20 VCF plug in board: common questions

How big is the Late MS20 VCF plug in board?

The Late MS20 VCF plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Late MS20 VCF plug in board?

66 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Late MS20 VCF plug in board design files?

From the JordanAceto/VCF_plug_in_boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Late MS20 VCF plug in board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
