3 in 1 Panel PCB layout, top view — open source RP2040/RP2350 board by kelu124
Simulate this board

About the 3 in 1 Panel PCB

3 in 1 Panel is an open source RP2040/RP2350 PCB design by kelu124, published on GitHub under the TAPR-OHL-1.0 license. It is a 4-layer board measuring 87.1 × 78.3 mm, with 63 components from 35 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the SN74LVC2G04DBVT, MD1213K6-G, MCP4812-E/MS, TC6320TG-G and MD0100N8-G. By type, the board carries 26 capacitors, 11 resistors, 8 ICs, 7 connectors, 6 inductors and 3 diodes.

From the project

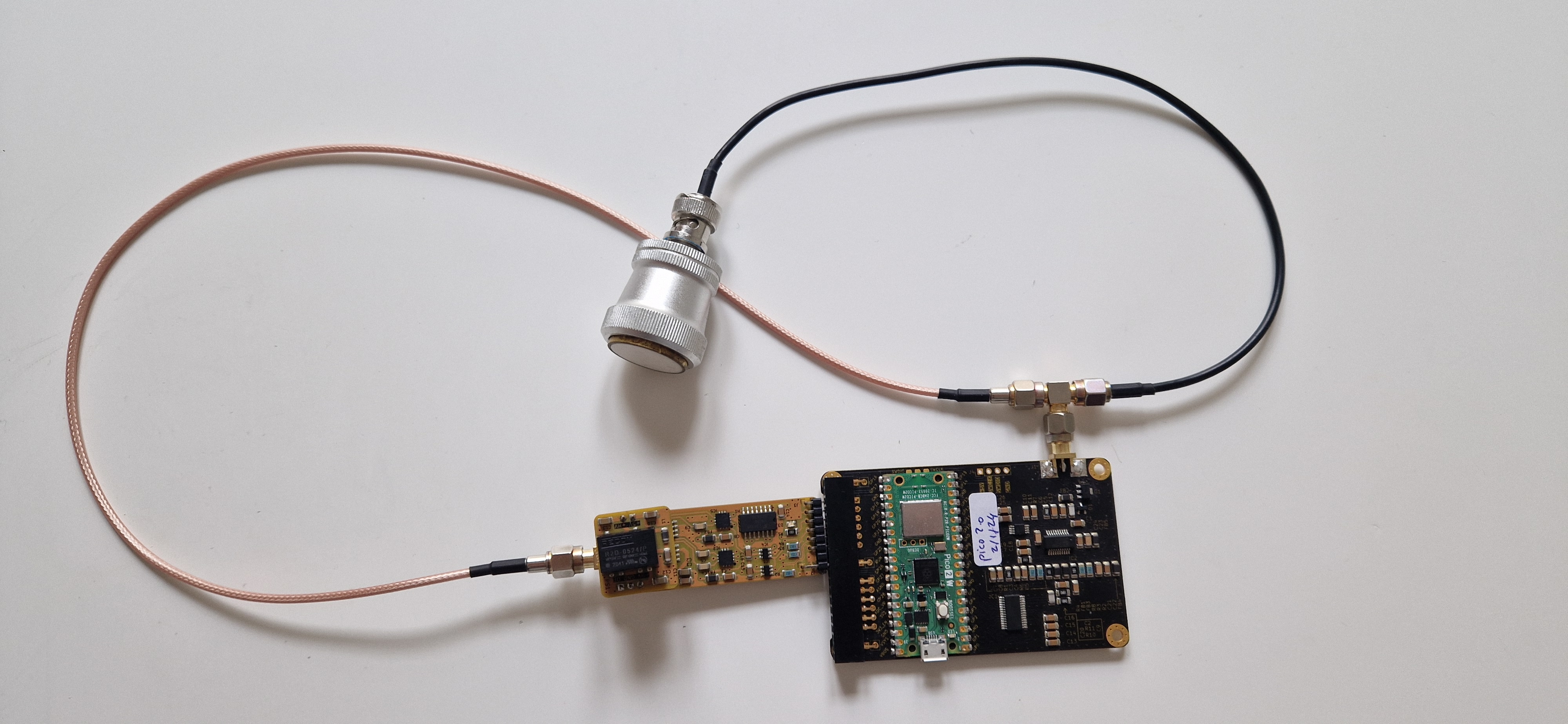

An rp2040-based acquisition board for pulse-echo ultrasound

The pic0rick is a very central board for an ultrasound pulse-echo system. It is composed of a main board, based on the RP2040 (or RP2350) and easy to solder SMD, to which a single, and a double PMOD connector can connect to addons:

The main board is equipped with a 60Msps, 10bit ADC. Front end is protected against high-voltage pulses, and features a proven time-gain compensation system consisting in a AD8331 (7.5 dB to 55.5dB) with a controlling (MCP4812) SPI DAC. The single PMOD connector can plug to the Pulser board, which can be equipped with a simple +-25V generation board. Together…

3 in 1 Panel, from the project README
From the project README

Main components on the 3 in 1 Panel

SN74LVC2G04DBVTMD1213K6-GMCP4812-E/MSTC6320TG-GMD0100N8-GPico

3 in 1 Panel bill of materials (BOM)
