About the Daronjli dongle PCB

Daronjli dongle is an open source ESP32 PCB design by manhoosbilli1, published on GitHub. It is a 4-layer board measuring 45.2 × 29.7 mm, with 50 components from 25 distinct parts.

Its main chip is the ESP32-WROVER-E-N16R8, from the ESP32 family. Other key parts include the CP2102N-Axx-xQFN24, LIS3DH, DRV2605LDGS, MCP73871 and TPS63020DSJR. By type, the board carries 25 capacitors, 12 resistors, 6 ICs, 2 transistors, 2 diodes and 1 inductor.

It belongs with the power & battery, displays & leds and iot & wireless designs in this gallery.

From the project

USB dongle with TPS63020 buck-boost, WS2812B RGB, ESD-protected (active dev)

USB dongle with ESP32-WROVER, TPS63020 buck-boost, WS2812B RGB, ESD-protected (active dev)

- Status: Partial / WIP - Board size: (no Edge.Cuts outline yet) - Layers: 4 - Components: 65 - Key ICs: - U2: CP2102N-Axx-xQFN24 - U3: LIS3DH - U4: DRV2605LDGS - U7: MAX17048G+T10 - U8: MCP73871T‑2CCI/ML - U9: TPS63020DSJR - U10: ESP32-WROVER-E

- ESP32-WROVER-E (U10) - main MCU; Wi-Fi/BT, runs the dongle firmware - CP2102N-Axx-xQFN24 (U2) - USB-to-UART bridge for programming + serial console over USB-C - TPS63020DSJR (U9) - buck-boost regulator; produces stable 3.3 V from a LiPo cell that swings…

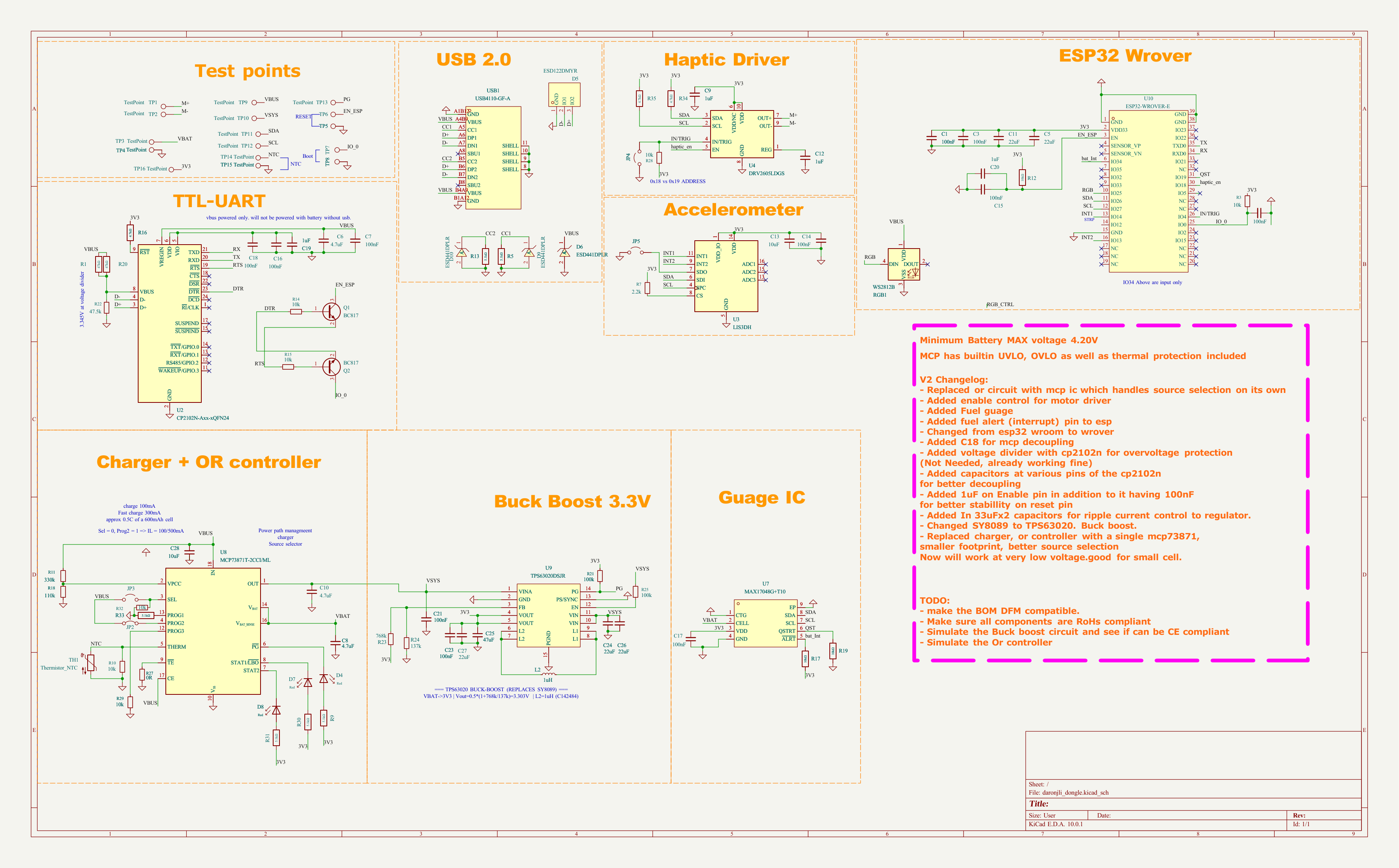

Daronjli dongle, from the project README
From the project README

Main components on the Daronjli dongle

CP2102N-Axx-xQFN24LIS3DHDRV2605LDGSMCP73871TPS63020DSJRESP32-WROVER-E-N16R8

Daronjli dongle bill of materials (BOM)

50 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CP2102N-Axx-xQFN24
U2
1
LIS3DH
U3
1
DRV2605LDGS
U4
1
MCP73871
U8
1
TPS63020DSJR
TI(德州仪器)
U9
1
ESP32-WROVER-E-N16R8
ESP32-WROVER-E
ESPRESSIF(乐鑫)
U10
2
BC817
Q1, Q2
1
Thermistor_NTC
TH1
1
USB4110-GF-A
GCT
USB1
1
ESD122DMYR
TI(德州仪器)
D5
1
ESD441DPLR
TI(德州仪器)
D6
1
FerriteBead
FB1
10
100nF
C1, C3, C7, C14, C15, C16, C17, C21 +2
5
22uF
C5, C11, C24, C26, C27
3
4.7uF
C6, C8, C10
4
1uF
C9, C12, C19, C20
2
10uF
C13, C28
1
47uF
C25
3
10k
R3, R14, R15
3
2.2k
R6, R7, R8
Show 5 more
QtyPartRefs
2
100k
R21, R25
1
768k
R23
1
137k
R24
1
0R
R27
1
2k
R28

Daronjli dongle design files

The KiCad project lives in the manhoosbilli1/daronjli-dongle repository on GitHub; these links point at the commit this page was built from.

Daronjli dongle: common questions

What microcontroller does the Daronjli dongle use?

The Daronjli dongle is built around the ESP32-WROVER-E-N16R8, from the ESP32 family.

How big is the Daronjli dongle PCB?

The Daronjli dongle measures 45.2 × 29.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Daronjli dongle?

50 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Daronjli dongle design files?

From the manhoosbilli1/daronjli-dongle repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Daronjli dongle design in my own project?

The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Daronjli dongle without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
