Jupiter-II PCB layout, top view — open source board by ricaflops
Simulate this board

About the Jupiter-II PCB

Jupiter-II is an open source PCB design by ricaflops, published on GitHub under the MIT license. It is a board measuring 164.5 × 89.5 mm, with 122 components from 44 distinct parts.

Other key parts include the 6116, 27C128, Z80CPU, 74LS367 and GAL22V10. By type, the board carries 58 resistors, 23 capacitors, 17 ICs, 11 diodes, 6 connectors and 2 transistors.

It belongs with the audio and retro computing designs in this gallery.

From the project

Another Jupiter Ace computer clone

For more information on the original Jupiter Ace computer and an extensive software collection visit The Jupiter Ace Archive

Inverse Video Jumper - Jumper installed: Black text on white background (inversed) - Jumper removed: White text on black background (default)

ROM image selection Jumper - Jumper installed: Original Jupiter Ace 8K ROM image - Jumper removed: Boot with the Jupiter-II Expansion

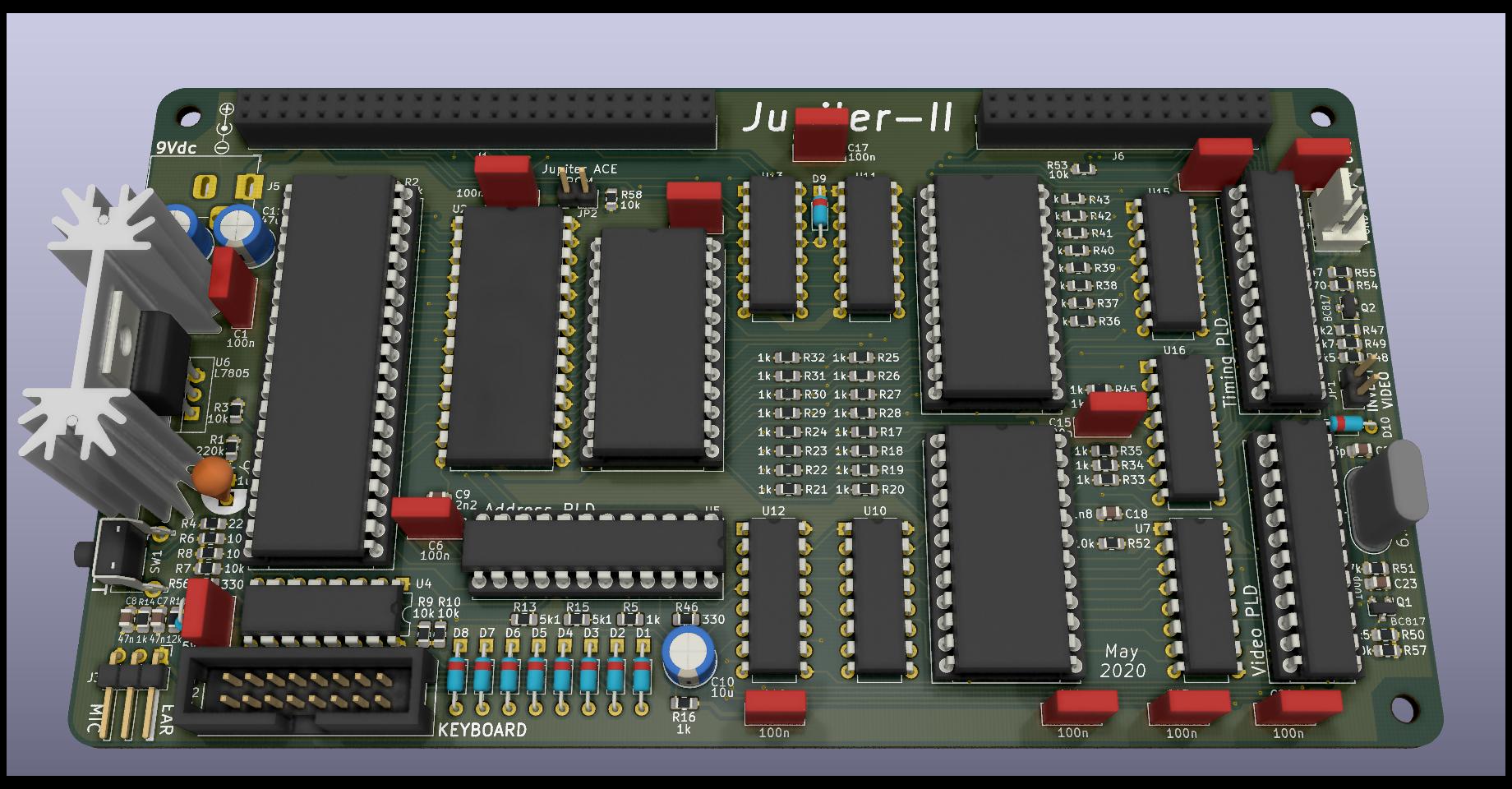

Jupiter-II, from the project README
From the project README

Main components on the Jupiter-II

611627C128Z80CPU74LS367GAL22V10L780574LS16674HC4040

Jupiter-II bill of materials (BOM)

122 components, 44 distinct parts.

QtyPartRefs
3
6116
U1, U8, U9
1
27C128
U2
1
Z80CPU
U3
5
74LS367
U4, U10, U11, U12, U13
3
GAL22V10
U5, U14, U17
1
L7805
U6
1
74LS166
U7
2
74HC4040
U15, U16
2
BC817
Q1, Q2
1
6.55 MHz
Y1
1
EXPANSION
J1
1
KEYBOARD
J2
1
Conn_01x03
J3
1
Conn_01x03
J4
1
9Vdc
J5
1
Conn_02x15_Odd_Even
J6
1
Heatsink
HS1
1
Jumper
JP1
1
Jumper
JP2
1
SW_Push
SW1
Show 24 more
QtyPartRefs
10
1N914
D1, D2, D3, D4, D5, D6, D7, D8 +2
1
5V1
D11
13
100n
C1, C2, C3, C5, C6, C13, C14, C15 +5
1
1u
C4
2
47n
C7, C8
1
2n2
C9
2
10u
C10, C12
1
47u
C11
1
1n8
C18
1
33p
C22
1
100p
C23
1
220k
R1
11
10k
R2, R3, R6, R7, R8, R9, R10, R52 +3
1
220
R4
33
1k
R5, R12, R14, R16, R17, R18, R19, R20 +25
1
12k
R11
2
5k1
R13, R15
2
330
R46, R56
1
2k2
R47
2
1k5
R48, R50
1
2k7
R49
1
47k
R51
1
470
R54
1
47
R55

Jupiter-II design files

The KiCad project lives in the ricaflops/Jupiter-II repository on GitHub; these links point at the commit this page was built from.

Jupiter-II: common questions

How big is the Jupiter-II PCB?

The Jupiter-II measures 164.5 × 89.5 mm and is 1.6 mm thick.

How many components are on the Jupiter-II?

122 components, from 44 distinct parts. The full bill of materials is listed on this page.

Where can I download the Jupiter-II design files?

From the ricaflops/Jupiter-II repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Jupiter-II design in my own project?

Yes, under the terms of its MIT license, which ricaflops chose for the repository.
