V3sDevBoard
About the V3sDevBoard PCB
V3sDevBoard is an open source ESP32 PCB design by sentoxo, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 85 mm, with 163 components from 74 distinct parts.
Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the Allwinner_V3s, SY8089AAAC, CH340C, PT4103 and Ai-Thinker-Ra-02. By type, the board carries 69 resistors, 45 capacitors, 15 ICs, 12 diodes, 9 connectors and 6 switches.
It belongs with the iot & wireless, displays & leds and sensors designs in this gallery.

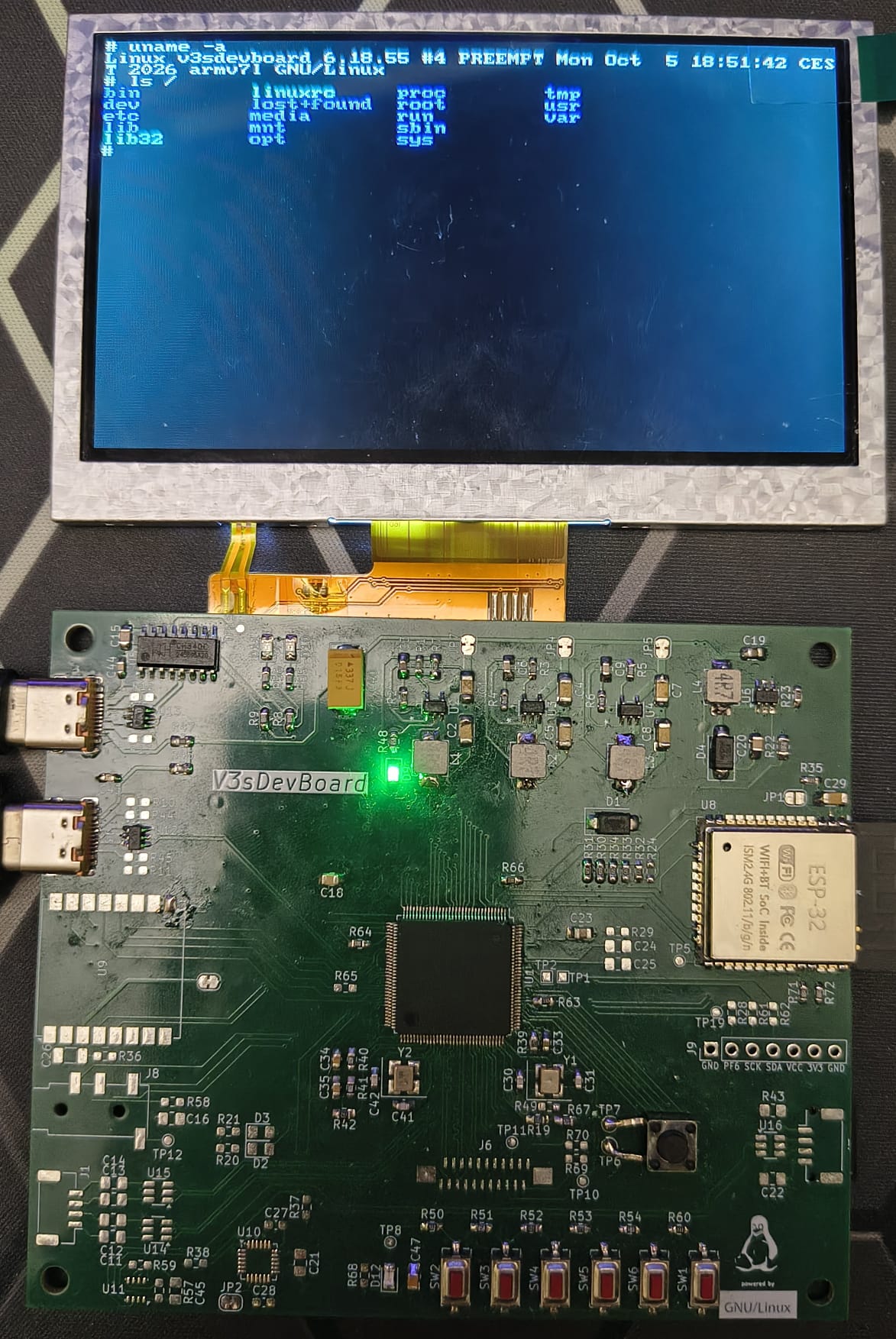

From the project
Educational project of first PCB desgin, SBC with linux built on allwinner V3s SoC
Main components on the V3sDevBoard
V3sDevBoard bill of materials (BOM)
163 components, 74 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Allwinner_V3s | eLQFP-128_14x14_Pitch0.4mm_EPAD_6.60mm | U1 |
| 3 | SY8089AAAC | SY8089AAAC_SGY | U2, U3, U4 |
| 1 | CH340C | SOIC-16_3.9x9.9mm_P1.27mm | U5 |
| 1 | PT4103 | SOT-23-6_Handsoldering | U6 |
| 1 | ESP32-WROOM-32 | ESP32-WROOM-32 | U8 |
| 1 | Ai-Thinker-Ra-02 | Ai-Thinker-Ra-01-LoRa | U9 |
| 1 | MPU-6050 | InvenSense_QFN-24_4x4mm_P0.5mm | U10 |
| 1 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U11 |
| 5 | USBLC6 | SOT-23-6 | U12, U13, U14, U15, U16 |
| 1 | 32K | Crystal_SMD_3225-4Pin_3.2x2.5mm_HandSoldering | Y1 |
| 1 | 24M | Crystal_SMD_3225-4Pin_3.2x2.5mm_HandSoldering | Y2 |
| 1 | JST_ETHERNET | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J1 |
| 2 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2, J3 |
| 1 | Micro_SD_Card_Det1 | microSD | J4 |
| 1 | LCD | Amphenol_F32Q-1A7x1-11040_1x40-1MP_P0.5mm_Horizontal | J5 |
| 1 | MIPI CSI | FPC_1x22-1MP_P0.5mm_Vertical | J6 |
| 1 | JST_I2C | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J7 |
| 1 | AudioJack | Jack_3.5mm_PJ320D_Horizontal | J8 |
| 1 | Conn_01x07_Pin | PinHeader_1x07_P2.54mm_Vertical | J9 |
| 1 | CR2032 | PinHeader_1x02_P1.00mm_Vertical_SMD_Pin1Right | BT1 |
Show 54 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BUT6 | Button_6x3mm | SW1 |
| 1 | BUT1 | Button_6x3mm | SW2 |
| 1 | BUT2 | Button_6x3mm | SW3 |
| 1 | BUT3 | Button_6x3mm | SW4 |
| 1 | BUT4 | Button_6x3mm | SW5 |
| 1 | BUT5 | Button_6x3mm | SW6 |
| 2 | SS14 | D_SMA | D1, D4 |
| 2 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2, D3 |
| 4 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D5, D6, D7, D8 |
| 1 | LED-G | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D9 |
| 1 | LED-R | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D10 |
| 1 | LED-Y | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D11 |
| 1 | LED-B | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D12 |
| 4 | 4u7 | L_APV_APH0420_HandSolder | L1, L2, L3, L4 |
| 8 | 10u | C_1206_3216Metric | C1, C2, C4, C5, C7, C8, C26, C29 |
| 3 | 22p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C6, C9 |
| 4 | 47n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C11, C12, C13, C14 |
| 6 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C15, C16, C17, C21, C22, C45 |
| 2 | 1u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C18, C25 |
| 2 | 2u2 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C19, C39 |
| 1 | 220n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C20 |
| 1 | 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C23 |
| 5 | 4u7 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C24, C32, C36, C37, C38 |
| 1 | 2n2 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C27 |
| 5 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C28, C34, C35, C43, C44 |
| 2 | 15p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C30, C31 |
| 1 | 220n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C33 |
| 1 | 330u | CP_EIA-7343-15_Kemet-W_HandSolder | C40 |
| 2 | 10p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C41, C42 |
| 1 | 1n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C47 |
| 1 | 680K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 75K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 2 | 200K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R29 |
| 4 | 100K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R5, R6, R68 |
| 1 | 680K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
| 7 | 150R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8, R9, R28, R61, R62, R71, R72 |
| 5 | 5K1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R11, R12, R13, R50 |
| 18 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R14, R15, R16, R17, R18, R23, R30, R31 +10 |
| 1 | 5K6 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19 |
| 6 | 2K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R20, R21, R40, R41, R55, R56 |
| 1 | 10R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R22 |
| 1 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R24 |
| 4 | 4K7 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R37, R38, R69, R70 |
| 2 | 12K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R39, R53 |
| 1 | 240R 1% | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R42 |
| 1 | 3R3 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R43 |
| 2 | 1R | R_0805_2012Metric | R46, R47 |
| 2 | 7K5 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R48, R51 |
| 1 | 10M | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R49 |
| 1 | 18K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R54 |
| 1 | 22R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R58 |
| 1 | 33K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R60 |
| 4 | 33R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R63, R64, R65, R66 |
| 1 | 470R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R67 |
V3sDevBoard design files
The KiCad project lives in the sentoxo/V3sDevBoard repository on GitHub; these links point at the commit this page was built from.
V3sDevBoard: common questions
What microcontroller does the V3sDevBoard use?
The V3sDevBoard is built around the ESP32-WROOM-32, from the ESP32 family.
How big is the V3sDevBoard PCB?
The V3sDevBoard measures 100 × 85 mm, has 4 copper layers and is 1.5842 mm thick.
How many components are on the V3sDevBoard?
163 components, from 74 distinct parts. The full bill of materials is listed on this page.
Where can I download the V3sDevBoard design files?
From the sentoxo/V3sDevBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the V3sDevBoard design in my own project?
Yes, under the terms of its MIT license, which sentoxo chose for the repository.
Can I test firmware for the V3sDevBoard without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
