.bitcoinMiner.spinrender src is an open source ESP32 PCB design by sneakylizard123-4, published on GitHub. It is a 4-layer board measuring 75 × 100 mm, with 116 components from 46 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the 25MHZ, TLV75712PDBV, MCP1824T-0802E, BM1370_MODE1 and SN74LVC1T45DBV. By type, the board carries 67 capacitors, 20 resistors, 11 ICs, 11 diodes, 4 connectors and 2 switches.
It belongs with the iot & wireless designs in this gallery.
From the project

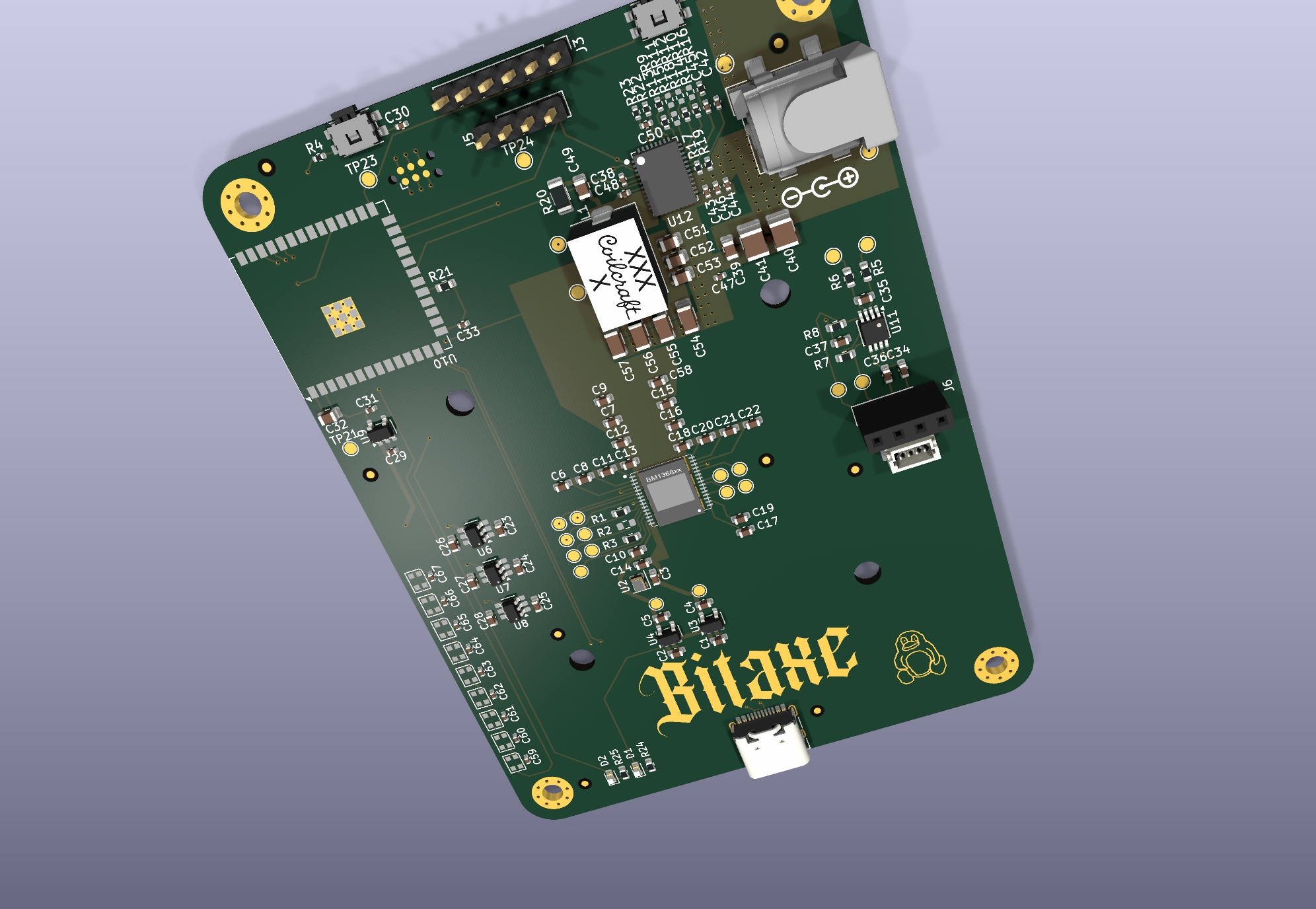

A single BM1370 board that mines bitcoin
A single BM1370 board that mines bitcoin
The board is a 4 layer 100x75mm PCB with a dedicated ground inner layer
It is built around the BM1370 ASIC. it is based on the proven Bitaxe Gamma reference design, and a buck 20A 1.2V core rail. The ESP32-S3 module provides WiFi/BLE control. It can be programmed through the native USB-C port or the Tag-Connect debug header The fan controller communicates to the ESP32 via i2C
