About the Commodore-Plus4 PCB

Commodore-Plus4 is an open source PCB design by StormTrooper, published on GitHub. It is a 2-layer board measuring 284.7 × 158.9 mm, with 212 components from 70 distinct parts.

Other key parts include the 8360, 8501, 6551, 74LS08 and 6529. By type, the board carries 66 inductors, 52 capacitors, 27 ICs, 27 resistors, 14 connectors and 4 transistors.

It belongs with the retro computing designs in this gallery.

From the project

The schematic for the Commodore Plus 4 (310162 Rev D) was taken from the Plus 4 Service Manual 314001-04 (1984 Oct) and converted into KiCad (Version 5.10)

The schematic for the Commodore Plus 4 (310162 Rev D) was taken from the Plus 4 Service Manual 314001-04 (1984 Oct) and converted into KiCad (Version 5.10)

I have also created KiCad footprints and symbols for the custom components as well as some 3D images.

The end goal is to also have a matching PCB layout which together with the schmatic will be useful for troubleshooting and repairing these retro computers. (This is a work in progress as its a lot of working trying to get a matching PCB Layout)

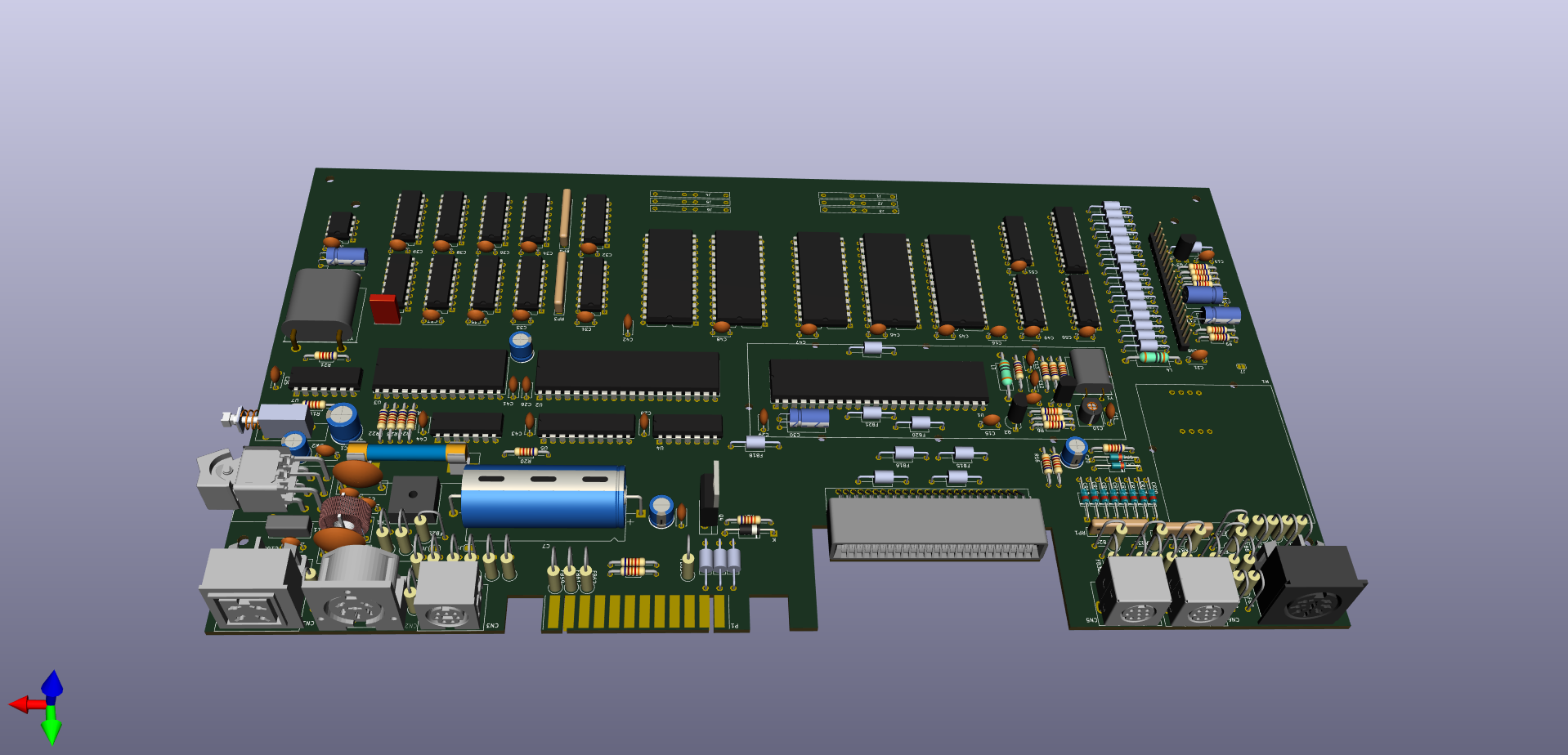

Commodore-Plus4, from the project README
From the project README

Main components on the Commodore-Plus4

Commodore-Plus4 bill of materials (BOM)

212 components, 70 distinct parts.

QtyPartRefs
1
8360
U1
1
8501
U2
1
6551
U3
1
74LS08
U4
2
6529
U5, U27
1
74LS04
U6
1
74LS06N
U7
1
LM555
U8
2
74LS257
U9, U10
8
4164
U11, U12, U13, U14, U15, U16, U17, U18
1
251641
U19
1
74LS139
U20
1
74LS175
U21
1
74LS27
U22
4
23128
U23, U24, U25, U26
1
RFMODULATOR
M1
3
2SC1815
Q1, Q2, Q3
1
2SD880
Q4
1
17.73447
Y1
1
1.8432M
Y2
Show 50 more
QtyPartRefs
1
Conn_01x04
CN1
1
Conn_01x07
CN2
1
Conn_01x07
CN3
1
50PinEdge
CN4
2
Conn_01x08
CN5, CN6
1
Conn_01x08
CN7
1
Keyboard-Matrix
CN8
6
Jumper_NC_Dual
J1, J2, J3, J4, J5, J6
1
D_Bridge_+-AA
CR1
1
6.8V
CR2
10
1N914
CR11, CR12, CR13, CR14, CR15, CR16, CR17, CR18 +2
1
1.5A
F1
2
3k3
RP1, RP2
2
Resistor-Network
RP3, RP4
1
SW_DPST
SW1
1
SW_Push
SW2
34
Ferrite_Bead_Small
FB2, FB3, FB4, FB5, FB6, FB7, FB8, FB9 +26
28
Ferrite_Bead_Small
FB15, FB16, FB17, FB18, FB19, FB20, FB21, FB41 +20
1
EMI_Filter
L1
1
EMI_Filter_CommonMode
L2
2
1.2u
L3, L4
1
100u
C1
30
100n
C2, C9, C15, C16, C21, C24, C25, C26 +22
1
220n
C3
1
220n
C4
2
220n
C5, C6
1
2200u
C7
3
10u
C8, C20, C27
1
4-20p
C10
1
33p
C11
1
220p
C12
1
150p
C13
1
10n
C14
4
10u
C17, C18, C22, C30
1
2700p
C19
1
1u
C23
1
100n
C40
1
100n
C100
1
4k7
R1
3
10k
R2, R26, R27
2
470
R3, R7
1
220
R4
1
18k
R5
2
1k5
R6, R17
3
100k
R8, R16, R19
9
1k
R9, R10, R12, R13, R21, R22, R23, R24 +1
1
12k
R11
2
240
R14, R15
1
47k
R18
1
3k
R20

Commodore-Plus4 design files

The KiCad project lives in the StormTrooper/Commodore-Plus4 repository on GitHub; these links point at the commit this page was built from.

Commodore-Plus4: common questions

How big is the Commodore-Plus4 PCB?

The Commodore-Plus4 measures 284.7 × 158.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Commodore-Plus4?

212 components, from 70 distinct parts. The full bill of materials is listed on this page.

Where can I download the Commodore-Plus4 design files?

From the StormTrooper/Commodore-Plus4 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Commodore-Plus4 design in my own project?

The repository has no license, so all rights stay with StormTrooper. Use it as a reference, and ask the author before reusing the design.
