IO SDR 1.1
About the IO SDR 1.1 PCB

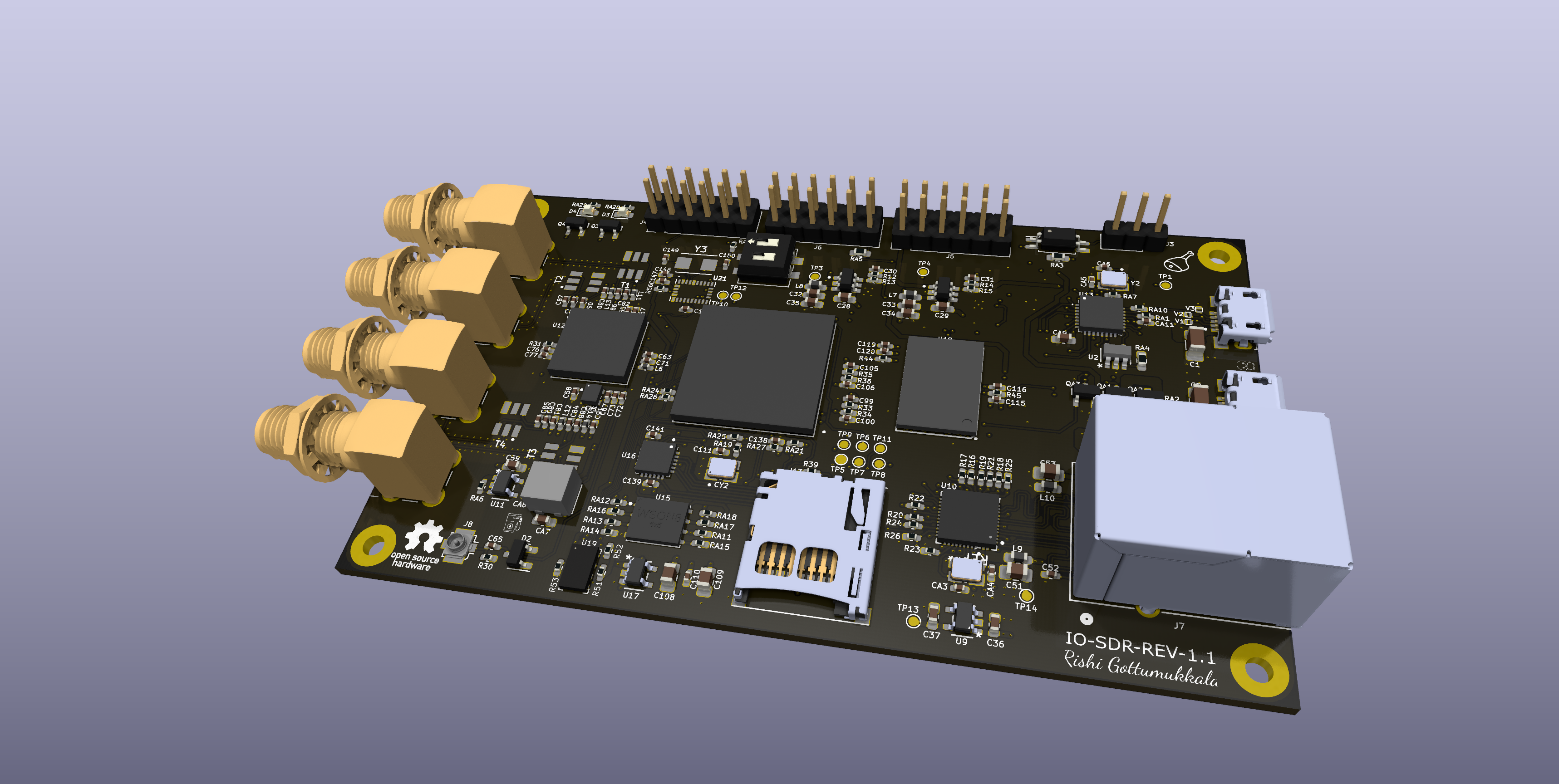

IO SDR 1.1 is an open source FPGA PCB design by SunnyYoshimitsu, published on GitHub. It is a 6-layer board measuring 91.5 × 91.5 mm, with 268 components from 85 distinct parts.
Its main chip is the XC7Z010-1CLG400I, from the FPGA family. Other key parts include the TCMT1107, SY6280AAC, AP3445W6-7, TPS7A8101DRBT and RT9193-33B. By type, the board carries 128 capacitors, 39 resistors, 18 ICs, 12 connectors, 11 inductors and 4 transistors.
It belongs with the rf & radio designs in this gallery.
From the project
Here will be the repository for an "extremely reconfigurable satellite" aimed toward at competing in NASA Minds and hopefully assist Artemis in its missions.
IO-SDR is an open-source software-defined FPGA radio hardware platform that serves as a successor to the Pluto SDR Learning Module. Support includes and is not limited to:
- dual multichannel transmission and reception - Gigabit Ethernet connection - Embedded Linux SoC development - GNU Radio blocks
Main components on the IO SDR 1.1
IO SDR 1.1 bill of materials (BOM)
268 components, 85 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TCMT1107 | SOP-4_4.4x2.6mm_P1.27mm | U1 |
| 1 | SY6280AAC | SY6280AAC | U2 |
| 4 | AP3445W6-7 | TCS4615 | U3, U4, U7, U8 |
| 2 | TPS7A8101DRBT | TPS7A8101DRBT | U5, U6 |
| 2 | RT9193-33B | RT9193-33B | U11, U17 |
| 1 | AD9363BBCZ | AD9361BBCZ | U12 |
| 1 | USB3320C-EZK-TR | USB3320C-EZK-TR | U13 |
| 1 | XC7Z010-1CLG400I | XC7Z010-1CLG400I | U14 |
| 1 | MX25U1635EZNI-10G | MX25U1635EZNI-10G | U15 |
| 1 | TXS02612RTWR | TXS02612RTWR | U16 |
| 1 | H5TQ4G63AFR | H5TQ4G63AFR | U18 |
| 1 | MS5611-01BA | LGA-8_3x5mm_P1.25mm | U19 |
| 1 | BNO085 | IC_BNO080 | U21 |
| 2 | S8050 | SOT-23 | Q1, Q2 |
| 2 | ~ | SOT23 MOSFET FOOT PRINT | Q3, Q4 |
| 1 | 25MHz | XTAL_TSX-3225_25.0000MF10P-C0 | Y2 |
| 1 | 32.768kHz | Crystal_SMD_Qantek_QC5CB-2Pin_5x3.2mm | Y3 |
| 2 | 10118193-0001LF | AMPHENOL_10118193-0001LF | J1, J2 |
| 1 | Conn_01x03_Shielded | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | Conn_02x20_Counter_Clockwise | PinSocket_2x20_P2.54mm_Vertical | J4 |
Show 65 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_02x06_Odd_Even | PinSocket_2x06_P2.54mm_Vertical | J5, J6 |
| 1 | 73412-0110 | U.FL_Molex_MCRF_73412-0110_Vertical | J8 |
| 4 | RF2-49B-T-00-50-G-HDW | SMA_Amphenol_132134-11_Vertical | J9, J10, J11, J12 |
| 1 | 502570-0893 | MOLEX_502570-0893 | J13 |
| 3 | 0.1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | CA1, CA8, CA11 |
| 3 | 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | CA2, CA7, CA9 |
| 2 | 18pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | CA5, CA6 |
| 1 | 4.7uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | CA10 |
| 1 | ASDMB-33.333MHZ-LC-T | XTAL_ASDMB-33.333MHZ-LC-T | CY1 |
| 1 | 33.333MHz | XTAL_ABM8AIG-25.000MHZ-12-2Z-T3 | CY2 |
| 3 | SQ2361ES | HR8031GS6 | QA1, QA2, QA3 |
| 2 | 2.4K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA1, RA2 |
| 1 | 4.7K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | RA3 |
| 1 | 5.1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | RA4 |
| 1 | 10K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA6 |
| 1 | 1M | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA7 |
| 1 | 14.3K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA8 |
| 11 | 20K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA9, RA11, RA13, RA15, RA16, RA17, RA21, RA22 +3 |
| 1 | 8.06K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA10 |
| 3 | 1K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA12, RA14, RA18 |
| 2 | 33R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA19, RA20 |
| 2 | 100K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA24, RA26 |
| 2 | 4.7K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | RA28, RA29 |
| 1 | SW_DIP_x02 | SW_DIP_SPSTx02_Slide_6.7x6.64mm_W6.73mm_P2.54mm_LowProfile_JPin | SW1 |
| 4 | TCM1-63AX_ | XFMR_TCM1-63AX_ | T1, T2, T3, T4 |
| 3 | HR02X5V | HR02X5V | V1, V2, V3 |
| 1 | SUPK24 | D_SOD-123 | D1 |
| 1 | SUP5522F | SOT-23-3 | D2 |
| 2 | LED6 | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D3, D4 |
| 4 | 2.2uH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L1, L4, L7, L8 |
| 2 | R0805 | L_0805_2012Metric_Pad1.05x1.20mm_HandSolder | L3, L5 |
| 1 | R0402 | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L6 |
| 2 | 330nH | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L11, L13 |
| 2 | 330nF | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L12, L14 |
| 3 | 22uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C4 |
| 1 | 100uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 3 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C108, C109 |
| 16 | 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C6, C11, C12, C13, C15, C16, C18, C19 +8 |
| 2 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C7, C8 |
| 1 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9 |
| 6 | 100pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C10, C14, C30, C31, C119, C120 |
| 12 | 0.1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C17, C20, C92, C93, C97, C98, C101, C102 +4 |
| 4 | 47uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C21, C23, C26, C27 |
| 29 | 10nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C22, C24, C54, C55, C60, C61, C64, C66 +21 |
| 12 | 1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C56, C57, C58, C62, C63, C68, C70, C111 +4 |
| 12 | 18pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C65, C67, C72, C73, C82, C83, C84, C85 +4 |
| 4 | 1nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C76, C77, C78, C79 |
| 16 | 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C80, C81, C90, C91, C99, C100, C105, C106 +8 |
| 5 | 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C94, C95, C96, C113, C135 |
| 2 | 22pf | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C149, C150 |
| 1 | 33R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1 |
| 5 | 10K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R2, R3, R7, R15, R56 |
| 3 | 7.5K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R4, R8, R10 |
| 1 | 2K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R5 |
| 1 | 20K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R6 |
| 2 | 12K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R9, R11 |
| 1 | 3.3K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R12 |
| 10 | 4.7K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R13, R39, R40, R41, R42, R43, R46, R51 +2 |
| 1 | 15K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R14 |
| 1 | 50K | Potentiometer_Bourns_3214W_Vertical | R29 |
| 1 | ESD | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R30 |
| 2 | 1R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R31, R32 |
| 6 | 2.4K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R33, R34, R35, R36, R44, R45 |
| 3 | 80.5R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R37, R38, R48 |
| 1 | 240R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R47 |
IO SDR 1.1 design files
The KiCad project lives in the SunnyYoshimitsu/Reconfigurable-Space-Compute-Cluster repository on GitHub; these links point at the commit this page was built from.
IO SDR 1.1: common questions
What microcontroller does the IO SDR 1.1 use?
The IO SDR 1.1 is built around the XC7Z010-1CLG400I, from the FPGA family.
How big is the IO SDR 1.1 PCB?
The IO SDR 1.1 measures 91.5 × 91.5 mm, has 6 copper layers and is 1.620266 mm thick.
How many components are on the IO SDR 1.1?
268 components, from 85 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the IO SDR 1.1 design files?
From the SunnyYoshimitsu/Reconfigurable-Space-Compute-Cluster repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the IO SDR 1.1 design in my own project?
The repository has no license, so all rights stay with SunnyYoshimitsu. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the IO SDR 1.1 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
