6502-wozmon
About the 6502-wozmon PCB
6502-wozmon is an open source PCB design by tsanders30004, published on GitHub. It is a 2-layer board measuring 183.7 × 131.3 mm, with 38 components from 28 distinct parts.
Other key parts include the 7400, W65C02, 28C256, W65C51N and 62256. By type, the board carries 11 capacitors, 9 ICs, 7 resistors, 3 diodes, 2 crystals and 2 connectors.
It belongs with the retro computing and displays & leds designs in this gallery.
From the project
6502 Wozmon PCB

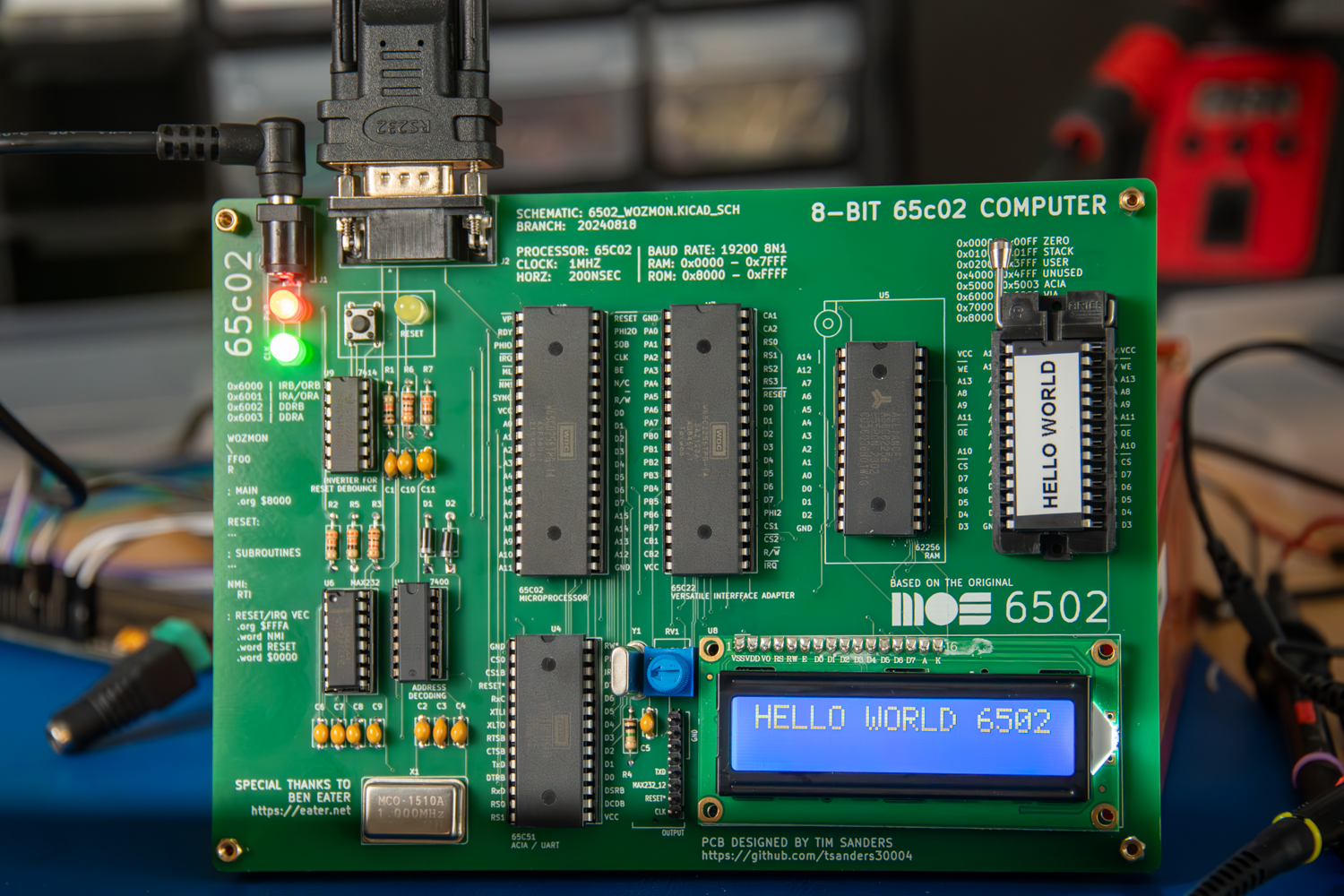

The upper left corner of the PCB has ports for +5V (barrel connector) and an RS-232 nine-pin serial cable. PWR and CLK LED's will illuminate when power and a clock signal (from the onboard 1MHz clock) are present, respectively. The PCB can be reset via the RESET button directly below the RS-232 port. The RESET LED will illuminate when the RESET button is pressed.
Main components on the 6502-wozmon
6502-wozmon bill of materials (BOM)
38 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 7400 | DIP-14_W7.62mm_Socket | U1 |
| 1 | W65C02 | DIP-40_W15.24mm_Socket | U2 |
| 1 | 28C256 | DIP-28_W15.24mm_Socket | U3 |
| 1 | W65C51N | DIP-28_W15.24mm_Socket | U4 |
| 1 | 62256 | DIP_Socket-28_W11.9_W12.7_W15.24_W17.78_W18.5_3M_228-1277-00-0602J | U5 |
| 1 | MAX232 | DIP-16_W7.62mm_Socket | U6 |
| 1 | 65C22 | DIP-40_W15.24mm_Socket | U7 |
| 1 | WC1602A | WC1602A | U8 |
| 1 | 74HC14 | DIP-14_W7.62mm_Socket | U9 |
| 1 | GTXO-S14V | Oscillator_DIP-14 | X1 |
| 1 | 1.8432MHZ | Crystal_HC18-U_Vertical | Y1 |
| 1 | Barrel_Jack_Switch_Pin3Ring | BarrelJack_Horizontal | J1 |
| 1 | Conn_01x08_Male | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | R_Potentiometer | Potentiometer_Bourns_3266Y_Vertical | RV1 |
| 1 | SW_Push_Dual | SW_Tactile_Straight_KSA0Axx1LFTR | SW2 |
| 2 | LED | LED_D5.0mm | LED_1, LED_2 |
| 2 | D | D_A-405_P10.16mm_Horizontal | D1, D2 |
| 1 | LED | LED_D5.0mm | D3 |
| 2 | C | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1, C10 |
| 3 | 0.1u | C_Disc_D5.0mm_W2.5mm_P5.00mm | C2, C3, C4 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 20pf | C_Disc_D5.0mm_W2.5mm_P5.00mm | C5 |
| 4 | 1uF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C6, C7, C8, C9 |
| 1 | 10u | C_Disc_D5.0mm_W2.5mm_P5.00mm | C11 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 2 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R5 |
| 2 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R6 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
6502-wozmon design files
The KiCad project lives in the tsanders30004/6502-wozmon repository on GitHub; these links point at the commit this page was built from.
- Layout6502_wozmon.kicad_pcb
- Schematic6502_wozmon.kicad_sch
6502-wozmon: common questions
How big is the 6502-wozmon PCB?
The 6502-wozmon measures 183.7 × 131.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 6502-wozmon?
38 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the 6502-wozmon design files?
From the tsanders30004/6502-wozmon repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 6502-wozmon design in my own project?
The repository has no license, so all rights stay with tsanders30004. Use it as a reference, and ask the author before reusing the design.
