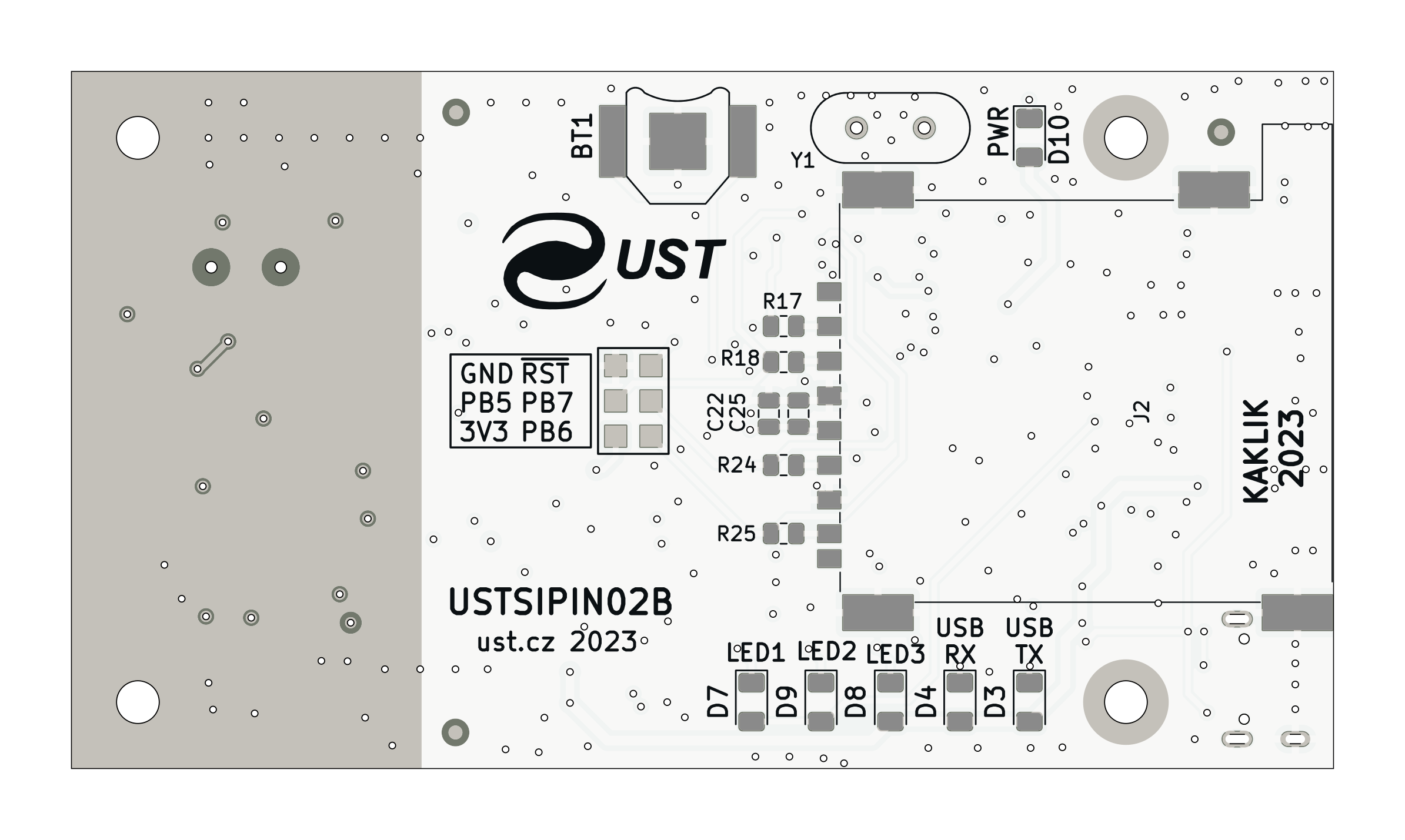

USTSIPIN02 PCB layout, top view — open source AVR/Arduino board by ust-modules

About the USTSIPIN02 PCB

USTSIPIN02 is an open source AVR/Arduino PCB design by ust-modules, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 90.9 × 50.3 mm, with 153 components from 60 distinct parts.

Its main chip is the ATMEGA1284P-AU, from the AVR/Arduino family. Other key parts include the OPA2314, ISL21080DIH309ZT inverted mount!, MAX9075EUK+, TS5A4594 and AT24CS64-SSHM. By type, the board carries 58 capacitors, 50 resistors, 15 ICs, 11 diodes, 5 connectors and 5 inductors.

It belongs with the science & space and test & measurement designs in this gallery.

From the project

Silicon diode dosimeter and spectrometer.

It is intended for measurements of cosmic radiation and ionizing radiation dosimetry by using c-Si PIN diode sensor.

Silicon PIN diode detector with 44 mm³ detection volume The number of energy channels depends on the firmware Deposited energy range from 60 keV to 7 MeV, the measurement range could be adjusted by altering values in the analog front end Energy measurement resolution 15 ±2 keV (the exact value depends on firmware and analog front-end setup). Power supply 3.3 to 5V / 3 mA Integration time depends on specific firmware setup Interface - RS232 TTL on JST-GH connector or USB-C…

USTSIPIN02, from the project README
From the project README

Main components on the USTSIPIN02

OPA2314ISL21080DIH309ZT inverted mount!MAX9075EUK+TS5A4594AT24CS64-SSHMUSBLC6-2SC6TPS613222ADBVFT231XQATMEGA1284P-AUPCF85263AMIC5504-3.3YM5TPS22919DCKSHT4XISL21080CIH325Z

USTSIPIN02 bill of materials (BOM)

153 components, 60 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
OPA2314
U1, U2
1
ISL21080DIH309ZT inverted mount!
U3
1
MAX9075EUK+
U4
1
TS5A4594
U5
1
AT24CS64-SSHM
U6
1
USBLC6-2SC6
U7
1
TPS613222ADBV
U8
1
FT231XQ
U9
1
ATMEGA1284P-AU
U10
1
PCF85263A
U11
1
MIC5504-3.3YM5
MIC5504-3.3YM5-TR
U12
1
TPS22919DCK
U14
1
SHT4X
SHT4x
U15
1
ISL21080CIH325Z
U16
1
BMI-S-204-F
M8
1
2SK2394-6
Q1
3
BC817-25
Q2, Q3, Q4
1
8 MHz
Y1
1
ABS07-120-32.768KHZ-T
Y2
1
SM08B-GHS-TB
J1
Show 40 more
QtyPartRefs
1
SD_CARD-FPS009-4200-0
SD_Card-FPS009-4200-0
J2
1
SM06B-GHS-TB
J3
1
USBC_USB4105-GF-A
J4
1
SM03B-GHS-TB
J7
1
KEYS2998
BT1
1
SR010-15 100mA
F2
4
BZX585-B5V6.115
D1, D5, D6, D11
1
S2744-09
D2
2
YELLOW
D3, D4
2
RED
D7, D10
1
GREEN
D8
1
BLUE
D9
3
NL03KT330
L1, L2, L5
1
DFE252012P-4R7M
L3
1
NL03KT330
L4
2
47UF
47uF
C1, C32
28
100NF
100nF
C2, C4, C6, C10, C12, C13, C14, C16 +20
4
1UF
1uF
C3, C17, C24, C37
1
1pF/NP0 251R15S1R0AV4E
C5
10
10UF
10uF
C7, C8, C11, C21, C23, C40, C42, C50 +2
5
10UF
10uF
C9, C22, C38, C41, C49
2
1NF
1nF
C15, C18
2
1NF/NP0
1nF/NP0
C19, C29
2
15PF
15pF
C30, C33
1
4U7
4u7
C43
1
100R
C52
2
10R
R1, R50
5
470R
R2, R3, R4, R5, R40
1
10M
R6
9
10K
10k
R7, R12, R20, R21, R23, R27, R35, R37 +1
2
1k
R8, R10
7
4K7
4k7
R9, R14, R15, R16, R19, R22, R26
1
3K6
3k6
R11
1
2K2
2k2
R13
14
100R
R17, R18, R24, R25, R32, R33, R34, R39 +6
3
180R
R28, R29, R38
2
5K1
5k1
R30, R31
1
82R
R36
1
18R
R43
1
51R
R44
