PC-AXE
About the PC-AXE PCB
PC-AXE is an open source PCB design by aadhi1014, published on GitHub under the TAPR-OHL-1.0 license. It is a 6-layer board measuring 312 × 111.2 mm, with 533 components from 86 distinct parts.
Other key parts include the TLV62568ADRLR, AP2204K-1.8, VL805, W25Q32JVZP and AP3211. By type, the board carries 378 capacitors, 102 resistors, 31 ICs, 10 inductors, 9 connectors and 2 crystals.
It belongs with the power & battery and usb & debug tools designs in this gallery.
From the project

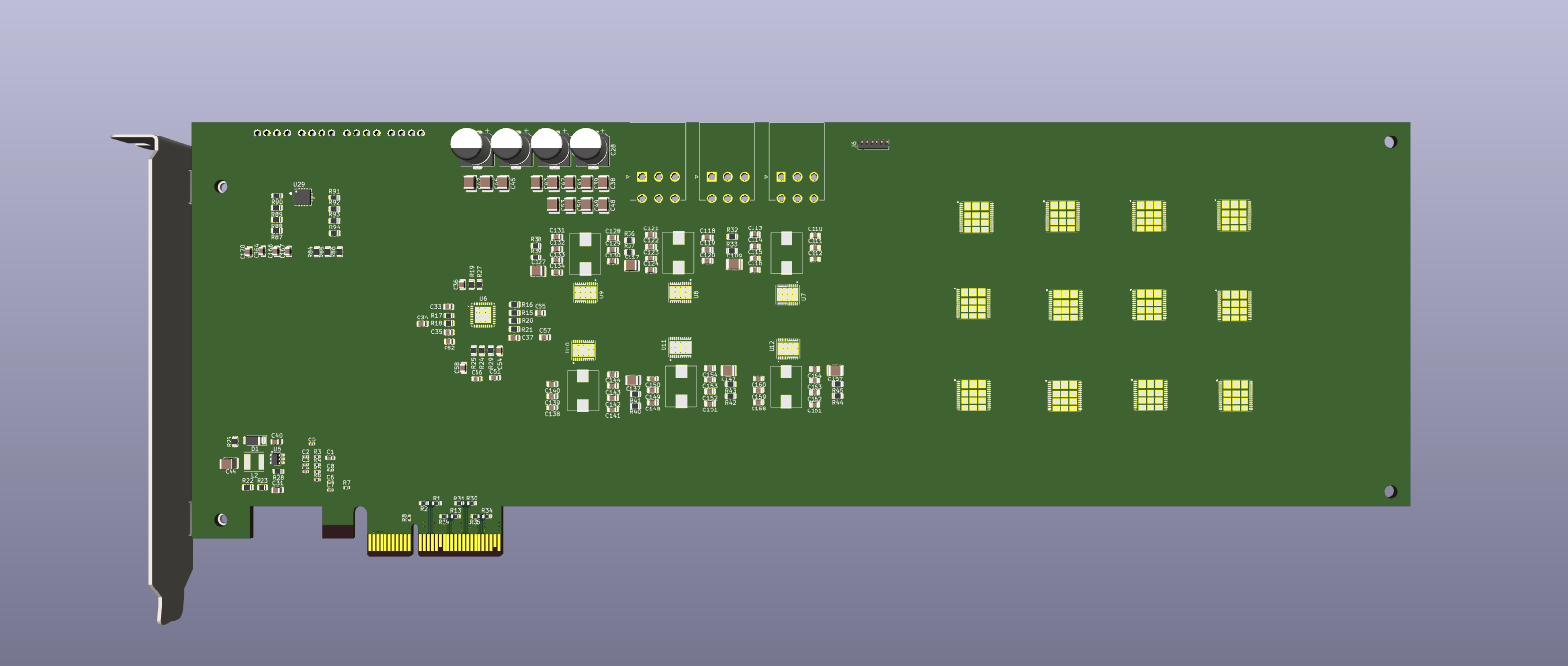

PC-AXE is a compact, PCIe x4-based, open-hardware Bitcoin miner designed to plug directly into desktop computers. Inspired by Bitaxe, Bitcrane, and professional mining cards, PC-AXE uses twelve BM1370 ASIC chips and a 6-phase high-efficiency buck converter to deliver up to 14.4TH
PC-AXE is a compact, PCIe x4-based, open-hardware Bitcoin miner designed to plug directly into desktop computers. Inspired by Bitaxe, Bitcrane, and professional mining cards, PC-AXE uses twelve BM1370 ASIC chips and a 6-phase high-efficiency buck converter to deliver up to 14.4TH/s of hashrate at just 200W power draw.
Note: PC-AXE is a work in progress. Hardware files are being finalized, and firmware development is ongoing. Community contributions and testing feedback are welcome.
Main components on the PC-AXE
PC-AXE bill of materials (BOM)
533 components, 86 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV62568ADRLR | SOT-563 | U1 |
| 1 | AP2204K-1.8 | SOT-23-5 | U2 |
| 1 | VL805 | Package_DFN_QFN{colon}QFN-68-1EP_8x8mm_P0.4mm_EP5.2x5.2mm | U3 |
| 1 | W25Q32JVZP | DFN-8-1EP_3x2mm_P0.5mm_EP1.36x1.46mm | U4 |
| 1 | AP3211 AP3211KTR-G1 | SOT-23-6 | U5 |
| 1 | TPS53667RTAR TPS53667RTAT | IC_TPS53667RTAR | U6 |
| 6 | CSD95472Q5MC CSD95472Q5MC | IC_CSD95490Q5MC | U7, U8, U9, U10, U11, U12 |
| 1 | 25MHZ 25MHz LFSPXO076024Reel | Oscillator_SMD_EuroQuartz_XO32-4Pin_3.2x2.5mm | U13 |
| 1 | TXU0304PW TXU0304PWR | TSSOP-14-1EP_4.4x5mm_P0.65mm | U14 |
| 1 | MCP1824T-0802E MCP1824T-0802E/OT | SOT-23-5 | U15 |
| 1 | MCP1824T-1202E MCP1824T-1202E/OT | SOT-23-5 | U16 |
| 12 | BM1370_MODE1 BM1370_mode1 BM1370 | BM1370 | U17, U18, U19, U20, U21, U22, U23, U24 +4 |
| 1 | EMC2305 | QFN16_4x4MC_MCH | U29 |
| 1 | M93C46-WDW6TP | TSSOP-8_L4.4-W3.0-P0.65-LS6.4-BL | U30 |
| 1 | FT4232HQ | QFN50P900X900X105-65N | U31 |
| 1 | 25MHZ 25Mhz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 12MHZ 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | PCIexpress_bracket | PCIexpress_bracket_full | J1 |
| 1 | PCIEXPRESS_X4 PCIexpress_x4 | PCIexpress_x4 | J2 |
| 3 | 353180620 | MOLEX_353180620 | J3, J4, J5 |
Show 66 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 61900411021 | CONN-TH_4P-P2.54_HCTL_HC-2510-4AW | J7, J8, J9, J10 |
| 1 | PMEG4030EP,115 PMEG4030EP,115 | D_SOD-128 | D1 |
| 2 | C19330 FerriteBead_Small | R_0603_1608Metric | FB1, FB2 |
| 1 | 1UH 1uH | L_Vishay_IHLP-1212 | L1 |
| 1 | 4.7µH 74404052047 | L_Taiyo-Yuden_NR-50xx | L2 |
| 6 | 220NH 220nH FP1008R5-R220-R | IFLR-4031GC-01-8x10{colon}IFLR-4031GC-01-8x10 | L3, L4, L5, L6, L7, L8 |
| 1 | 10UF 10uF | C_0603_1608Metric | C1 |
| 2 | 10UF 10uF | C_0402_1005Metric | C2, C15 |
| 19 | 100NF 100nF | C_0402_1005Metric | C3, C4, C5, C6, C7, C8, C9, C10 +11 |
| 1 | 10PF 10pF | C_0402_1005Metric | C20 |
| 1 | 1UF 1uF | C_0402_1005Metric | C21 |
| 1 | 22UF 22uF | C_0603_1608Metric | C22 |
| 2 | 18PF 18pF | C_0402_1005Metric | C25, C26 |
| 3 | 470µ/25V UWT1E471MNL1GS | CP_Elec_8x10 | C28, C29, C30 |
| 13 | 10µF/25V TMK212BBJ106MG-T | C_0805_2012Metric | C31, C177, C193, C209, C225, C241, C257, C273 +5 |
| 1 | 22pF CL21C220JBANNNC | C_0805_2012Metric | C32 |
| 1 | 22PF 100pF 0805B101M250CT | C_0805_2012Metric | C33 |
| 1 | 100PF 22pF CL21C220JBANNNC | C_0805_2012Metric | C34 |
| 1 | 22PF 470µ/25V UWT1E471MNL1GS | CP_Elec_8x10 | C35 |
| 15 | 1NF 1nF CC0805KRX7R0BB102 | C_0805_2012Metric | C36, C37, C58, C111, C116, C119, C124, C129 +7 |
| 19 | 22µ/25V CL32A226KAJNNNE | C_1210_3225Metric | C38, C39, C41, C42, C43, C44, C45, C46 +11 |
| 1 | 10NF 10nF CL21B103KBANNNC | C_0805_2012Metric | C40 |
| 1 | 4.7µF/16V CL21A475KOFNNNG | C_0805_2012Metric | C50 |
| 22 | 1µF/25V CL21B105KAFNNNE | C_0805_2012Metric | C51, C53, C110, C118, C128, C138, C148, C158 +14 |
| 1 | 330NF 330nF CL21B334KBFNNNE | C_0805_2012Metric | C55 |
| 1 | 12PF 12pF KGM15ACG2A120JM | C_0805_2012Metric | C56 |
| 1 | 2.2NF 2.2nF 0805B222K160CT | C_0805_2012Metric | C57 |
| 30 | 330µF/4V GRM32ER60G337ME05K | C_1210_3225Metric | C59, C62, C65, C66, C69, C72, C73, C76 +22 |
| 32 | 100µ/6.3V CL31A107MQHNNWE | C_1206_3216Metric | C60, C61, C63, C64, C67, C68, C70, C71 +24 |
| 35 | 100NF 100nF 0805B104M101CT | C_0805_2012Metric | C112, C113, C115, C120, C121, C123, C130, C131 +27 |
| 6 | 2.2µF/16V CL21A225KOFNNNE | C_0805_2012Metric | C114, C122, C132, C142, C152, C162 |
| 8 | 100N 100n | C_0603_1608Metric | C125, C126, C135, C136, C145, C146, C155, C156 |
| 144 | 1µF/6.3V CL10A105KQ8NNNC | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C172, C173, C174, C175, C176, C178, C181, C183 +136 |
| 10 | 0.1UF 0.1uF | C_0805_2012Metric | C364, C369, C371, C372, C373, C374, C375, C376 +2 |
| 2 | 27PF 27pf | C_0805_2012Metric | C365, C368 |
| 2 | 4.7UF 4.7uF | C_0805_2012Metric | C366, C367 |
| 1 | 3.3UF 3.3uF | C_0805_2012Metric | C370 |
| 8 | 49.9 | R_0603_1608Metric | R1, R2, R13, R14, R30, R31, R34, R35 |
| 1 | 75K | R_0402_1005Metric | R3 |
| 1 | 100K | R_0402_1005Metric | R4 |
| 4 | 10K | R_0402_1005Metric | R5, R6, R8, R12 |
| 1 | DNP | R_0402_1005Metric | R7 |
| 1 | 4.7K | R_0402_1005Metric | R9 |
| 1 | 6.04K | R_0402_1005Metric | R10 |
| 1 | 15K | R_0402_1005Metric | R11 |
| 2 | 16.5K RC0805FR-0716K5L | R_0805_2012Metric | R15, R23 |
| 1 | 24.3K RC0805FR-0724K3L | R_0805_2012Metric | R16 |
| 2 | 51 0.5% RT0805DRE0751RL | R_0805_2012Metric | R17, R18 |
| 1 | 121K RT0805FRE07121KL | R_0805_2012Metric | R19 |
| 12 | 10K 10k | R_0805_2012Metric | R20, R21, R46, R47, R48, R91, R92, R93 +4 |
| 1 | 86.6K CR0805-FX-8662ELF | R_0805_2012Metric | R22 |
| 1 | 2.55K ERJ-P06F2551V | R_0805_2012Metric | R24 |
| 1 | 8.06K RC0805FR-078K06L | R_0805_2012Metric | R25 |
| 1 | 49.9K 33.2K RMCF0805FT33K2 | R_0805_2012Metric | R26 |
| 1 | 100K CRG0805F100K | R_0805_2012Metric | R27 |
| 2 | 2.2R RMCF0805FT2R20 | R_0805_2012Metric | R28, R29 |
| 12 | 1R WR08W1R00FTL | R_0805_2012Metric | R32, R33, R36, R37, R38, R39, R40, R41 +4 |
| 11 | 33R CR0402-FX-33R0GLF | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R49, R50, R51, R52, R53, R54, R55, R56 +3 |
| 13 | 1k | R_0805_2012Metric | R60, R62, R64, R66, R68, R70, R72, R74 +5 |
| 12 | 2K CR0805-FX-2001ELF | R_0805_2012Metric | R61, R63, R65, R67, R69, R71, R73, R75 +4 |
| 3 | 4.7K 4.7k | R_0805_2012Metric | R84, R97, R99 |
| 1 | 33K 33k | R_0805_2012Metric | R85 |
| 1 | 22K 22k | R_0805_2012Metric | R86 |
| 4 | 36K 36k | R_0805_2012Metric | R87, R88, R89, R90 |
| 1 | 2.2K 2.2k | R_0805_2012Metric | R96 |
| 1 | 12K 12k | R_0805_2012Metric | R101 |
PC-AXE design files
The KiCad project lives in the aadhi1014/PC-AXE repository on GitHub; these links point at the commit this page was built from.
- LayoutPC-AXE.kicad_pcb
- SchematicPC-AXE.kicad_sch
- BOMproduction/bom.csv
PC-AXE: common questions
How big is the PC-AXE PCB?
The PC-AXE measures 312 × 111.2 mm, has 6 copper layers and is 1.57112 mm thick.
How many components are on the PC-AXE?
533 components, from 86 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PC-AXE design files?
From the aadhi1014/PC-AXE repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PC-AXE design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which aadhi1014 chose for the repository.
