NextTRS
apuder·TRS-IO·kicad/pp/v0.1/NextTRS.kicad_pcb
About the NextTRS PCB
NextTRS is an open source ESP32 PCB design by apuder, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 145.7 × 107.8 mm, with 93 components from 38 distinct parts.
Its main chip is the ESP32-WROVER-B, from the ESP32 family. Other key parts include the SN74LVC245AN, ATF16V8B-15PU and 74LVC245. By type, the board carries 40 resistors, 21 capacitors, 12 connectors, 6 ICs, 5 transistors and 5 diodes.
It belongs with the audio, iot & wireless and power & battery designs in this gallery.
From the project

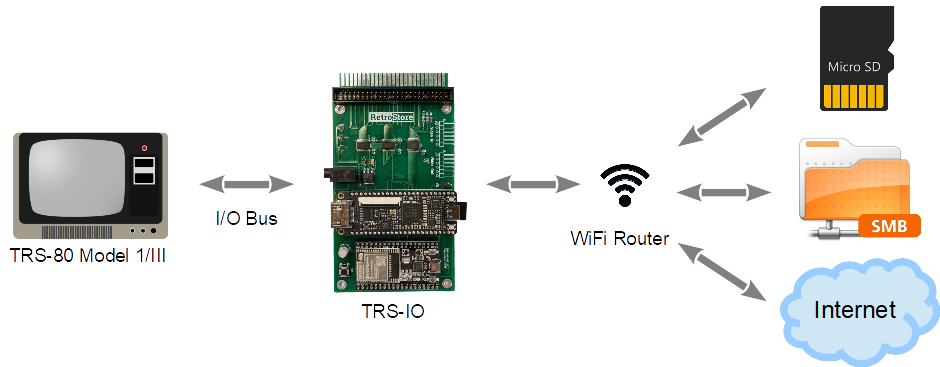

TRS-IO gives a TRS-80 Model 1/III online capabilities and provides access to a variety of services. TRS-IO currently features the following capabilities:
TRS-IO gives a TRS-80 Model 1/III online capabilities and provides access to a variety of services. TRS-IO currently features the following capabilities:
1. Access to the RetroStore 2. FreHD emulation 3. Access to files mounted on a SMB share or located on a micro-SD card 4. Access to remote servers via TCP 5. Virtual printer support
The TRS-IO versions for the Model 1 and Model III have some additional features that are explained below. The following sections give an overview of TRS-IO as well as setup instructions. This Github repository contains the complete source code as well as the…

Main components on the NextTRS
NextTRS bill of materials (BOM)
93 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-WROVER-B | ESP32-WROVER | U1 |
| 2 | SN74LVC245AN 74LVC245 | SSOP-20_5.3x7.2mm_P0.65mm | U2, U4 |
| 1 | ATF16V8B-15PU 74LVC245 | SSOP-20_5.3x7.2mm_P0.65mm | U3 |
| 2 | 74LVC245 | SSOP-20_5.3x7.2mm_P0.65mm | U5, U6 |
| 2 | 2N7000-G MMBT3904 | SOT-23 | Q1, Q2 |
| 1 | 2N7000-G 2N7002 | SOT-23 | Q3 |
| 2 | 2N7002 | SOT-23 | Q4, Q5 |
| 1 | 302-S501 TRS-80 M3 Pin Header | PinHeader_2x25_P2.54mm_Vertical | J1 |
| 1 | TRS-80 M1 Pin Connector | PinHeader_2x20_P2.54mm_Vertical | J2 |
| 1 | TRS-80 M3 Edge Connector | EDGE50 | J3 |
| 1 | TRS-80 M1 Edge Connector | TRSEDGE | J4 |
| 2 | Conn_01x06_Male | PinHeader_1x06_P2.54mm_Horizontal | J5, J6 |
| 1 | HDMI_A | HDMI_A_Molex_208658-1001_Horizontal | J7 |
| 1 | Programmer | PinSocket_1x06_P2.54mm_Vertical | J8 |
| 1 | SD_Card | TFP09-2-12B | J9 |
| 1 | AudioJack3 | Jack_3.5mm_CUI_SJ1-3535NG_Horizontal_CircularHoles | J10 |
| 1 | Mini-DIN-6 | minidin_6_ps2_pcb_mount | J11 |
| 1 | USB_B_Micro | USBmicro-B | J12 |
| 1 | Conn_DDR3_Socket | DDR3_socket | Conn1 |
| 1 | 1825910-6 ESP_RESET | SW_PUSH_6mm | SW1 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1825910-6 PTRS_RESET/STATUS | SW_PUSH_6mm | SW2 |
| 1 | SW_DIP_x04 | SW_DIP_SPSTx04_Slide_6.7x11.72mm_W8.61mm_P2.54mm_LowProfile | SW3 |
| 1 | HV-5RGB60 LED_RKBG | LED_D5.0mm-4_RGB | D1 |
| 4 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2, D3, D4, D5 |
| 4 | RDER71E104K0P1H03B 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4 |
| 8 | 100N | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C6, C7, C8, C13, C17, C21, C23 |
| 1 | 100 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9 |
| 5 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10, C11, C16, C18, C19 |
| 1 | 1U | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C12 |
| 2 | 10U | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C14, C15 |
| 7 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R37, R38, R39, R40 |
| 8 | 50 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4, R5, R6, R7, R8, R9, R10, R11 |
| 7 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R12, R13, R14, R15, R16, R17, R18 |
| 2 | 12K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R19, R20 |
| 12 | 4K7 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R21, R22, R25, R26, R27, R28, R29, R30 +4 |
| 1 | 270R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R23 |
| 1 | 150R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R24 |
| 2 | 2K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R31, R32 |
NextTRS design files
The KiCad project lives in the apuder/TRS-IO repository on GitHub; these links point at the commit this page was built from.
NextTRS: common questions
What microcontroller does the NextTRS use?
The NextTRS is built around the ESP32-WROVER-B, from the ESP32 family.
How big is the NextTRS PCB?
The NextTRS measures 145.7 × 107.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the NextTRS?
93 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the NextTRS design files?
From the apuder/TRS-IO repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the NextTRS design in my own project?
Yes, under the terms of its GPL-3.0 license, which apuder chose for the repository.
Can I test firmware for the NextTRS without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
