About the CheetoPet PCB

CheetoPet is an open source ESP32 PCB design by Cheet0sDelet0s, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 50.2 × 95.2 mm, with 96 components from 40 distinct parts.

Its main chip is the ESP32-S3-MINI-1U, from the ESP32 family. Other key parts include the USBLC6-2SC6, HX PM2.54-1x5P WT, DW01A, BQ24074RGT and MAX17048G_T10. By type, the board carries 37 resistors, 30 capacitors, 14 ICs, 5 switches, 2 transistors and 2 connectors.

It belongs with the power & battery designs in this gallery.

From the project

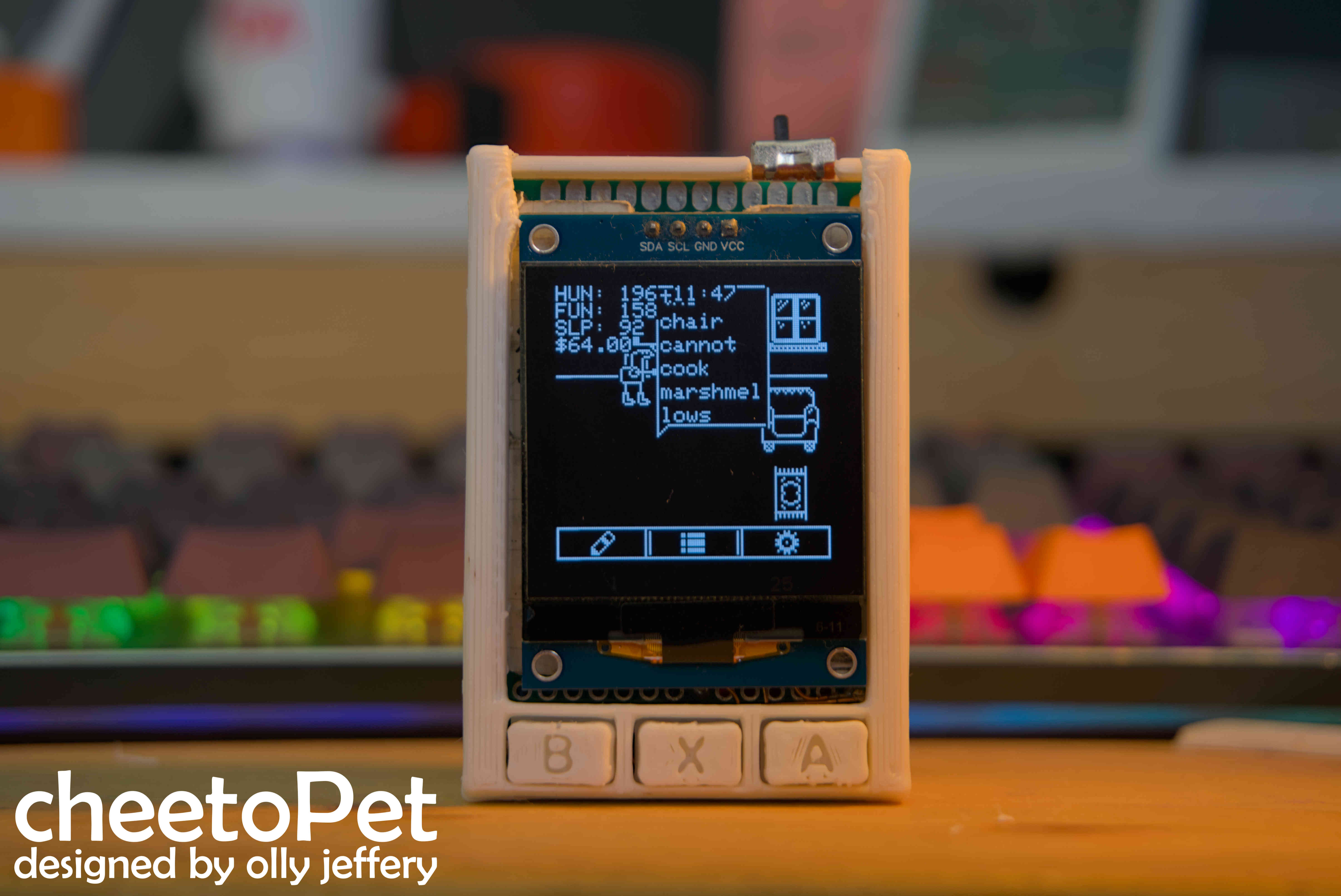

an esp32 s3 based tamagotchi

you must buy the battery and display separately. a 1S 1000mah lipo/ion is what the board expects. the display is a very specific ST7789 from BuyDisplay, you can find it on aliexpress thank GOD. https://www.aliexpress.com/item/1005008850313883.html they are about $5-6 each.

CheetoPet, from the project README
From the project README

Main components on the CheetoPet

USBLC6-2SC6HX PM2.54-1x5P WTDW01ABQ24074RGTMAX17048G_T10LSM6DSLPCF8523T/1,118ESP32-S3-MINI-1UWS-003DBTPS63802DLARAT24C32M/TRLTC2955CDDB-1#TRPBF

CheetoPet bill of materials (BOM)

96 components, 40 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
HX PM2.54-1x5P WT
HX PM2.54-1X5P WT
hanxia(韩下)
U2
1
DW01A
U3
1
BQ24074RGT
U4
1
MAX17048G_T10
U5
1
LSM6DSL
U6
1
PCF8523T/1,118
NXP(恩智浦)
U7
1
ESP32-S3-MINI-1U
U8
1
WS-003DB
HANBO(汉博)
U9
1
TPS63802DLAR
TI(德州仪器)
U10
3
AT24C32M/TR
HGSEMI(华冠)
U11, U13, U14
1
LTC2955CDDB-1#TRPBF
ADI(亚德诺)
U12
1
FS8205A
Q1
1
BSS138
Q2
1
SC-32S32.768kHz20PPM7pF
Seiko(精工)
X1
1
S2B-ZR-SM2-TF(LF)(SN)
S2B-ZR-SM2-TF
JST
CN2
1
USB_C_Receptacle_USB2.0_16P
J2
1
CPT-9019A-SMT-TR
CUI
BUZZER1
1
1A
F1
2
HX PZ2.54-1x5P WT
HX PZ2.54-1X5P WT
hanxia(韩下)
H1, H2
Show 20 more
QtyPartRefs
4
KMR621NGLFS
BTN
C&K
SW1, SW2, SW3, SW4
1
TS24CA
SHOU HAN(首韩)
SW5
1
0.47uH <30mOhm >4A
L1
17
100nF
C1, C5, C6, C7, C15, C16, C17, C18 +9
5
10uF
C2, C3, C8, C9, C20
2
1uF
C4, C30
6
22uF
C10, C14, C22, C23, C27, C28
1
100R
R1
1
1k
R2
2
5k1
R3, R4
17
10k
R5, R8, R12, R15, R16, R17, R18, R22 +9
1
1k5
R7
1
1k1
R9
1
2.94k
R10
1
18k
R11
2
4k7
R19, R20
1
10
R21
7
22
R28, R29, R30, R33, R34, R39, R40
1
511k
R36
1
91k
R37

CheetoPet design files

The KiCad project lives in the Cheet0sDelet0s/cheetoPet repository on GitHub; these links point at the commit this page was built from.

CheetoPet: common questions

What microcontroller does the CheetoPet use?

The CheetoPet is built around the ESP32-S3-MINI-1U, from the ESP32 family.

How big is the CheetoPet PCB?

The CheetoPet measures 50.2 × 95.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CheetoPet?

96 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the CheetoPet design files?

From the Cheet0sDelet0s/cheetoPet repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CheetoPet design in my own project?

Yes, under the terms of its GPL-2.0 license, which Cheet0sDelet0s chose for the repository.

Can I test firmware for the CheetoPet without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
