CellKeeper-BMS is an open source RP2040/RP2350 PCB design by clowrey, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 306 × 113 mm, with 423 components from 84 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the UCC27524DR, TPS5430DDAR, F0505S-1WR3, ISO1050DUB and LTV-217-B-G. By type, the board carries 138 resistors, 114 capacitors, 50 diodes, 35 jumpers, 25 ICs and 23 connectors.

It belongs with the power & battery designs in this gallery.

From the project

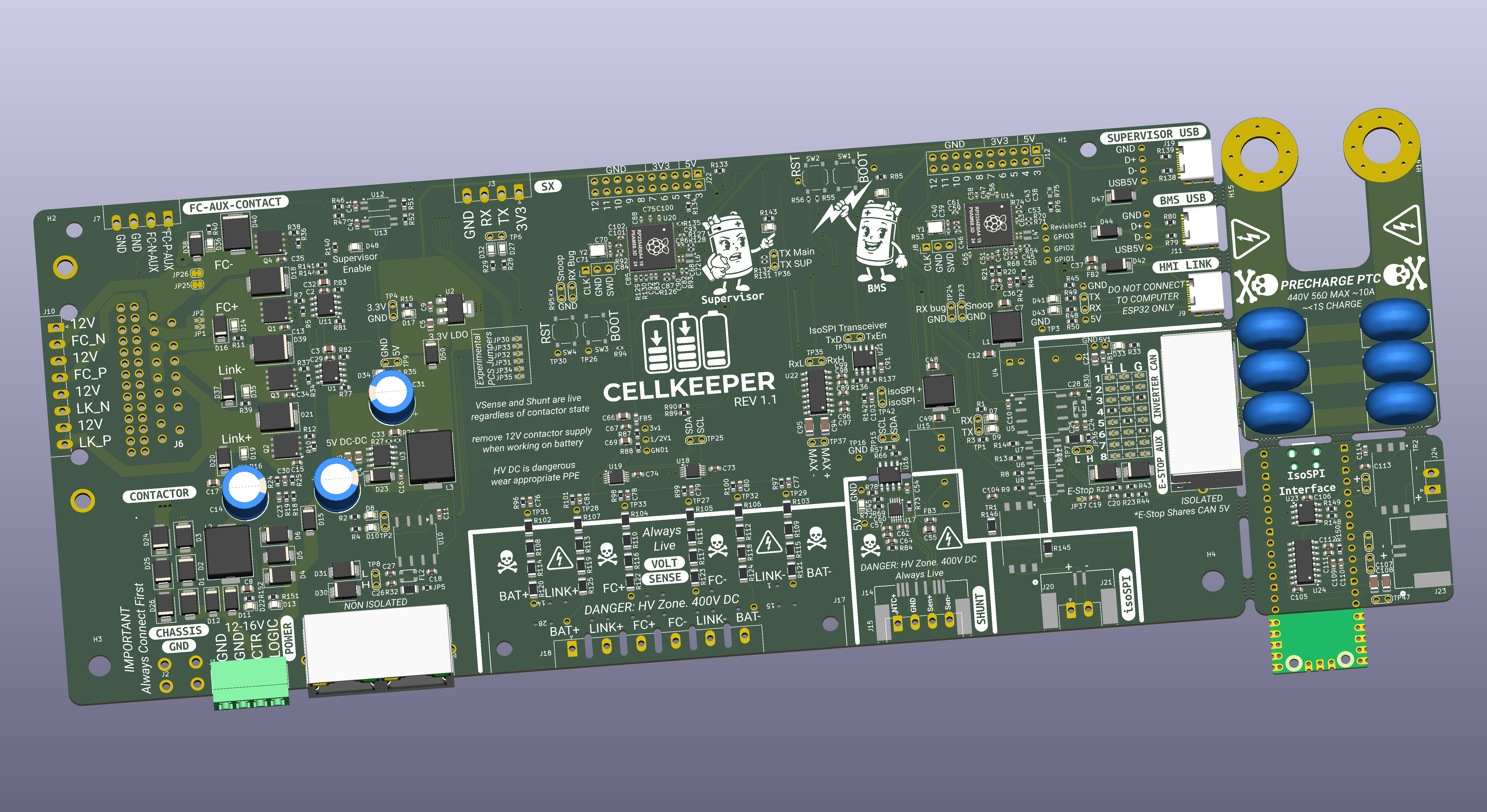

PCB for the CellKeeper BMS

KiCad PCB design for the CellKeeper Battery Management System, a replacement BMS controller for battery packs using the isoSPI protocol.

- MCU: Raspberry Pi RP2354B (dual Cortex-M33 @ 150 MHz) - Current sensing: TI INA228 (20-bit ADC, shunt-based) - Pack voltage: 6-channel monitoring via precision dividers - BMB communication: isoSPI master with galvanic isolation (Manchester encoding via PIO) - CAN bus: 500 kbps, hardware transceiver - Contactor control: 4-channel PWM outputs with inrush limiting - Input: 12 V nominal; rated for up to 400 V DC pack voltage

CellKeeper-BMS, from the project README — From the project README

Main components on the CellKeeper-BMS

UCC27524DR TPS5430DDAR F0505S-1WR3 ISO1050DUB LTV-217-B-G RP2354B ISO1540 INA228 ADS1115 SP3485EN-L AM26LV32EIDR TLV1117LV33DCYR RaspberryPi_Pico

CellKeeper-BMS bill of materials (BOM)

423 components, 84 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	UCC27524DR	Package_SO__SOIC-8_3.9x4.9mm_P1.27mm	U1, U11
