Flight Computer V1
About the Flight Computer V1 PCB
Flight Computer V1 is an open source ESP32 PCB design by colin-skinner, published on GitHub. It is a 2-layer board measuring 77.5 × 66 mm, with 92 components from 52 distinct parts.
Its main chip is the ESP32-S3-WROOM-1U-N16, from the ESP32 family. Other key parts include the ADXL375BCCZ-RL7, USBLC6-2P6, MS5607-02BA, ICM-20948 and MCP2542FDXMF. By type, the board carries 27 capacitors, 21 resistors, 13 ICs, 9 diodes, 8 test points and 7 connectors.
It belongs with the rf & radio, iot & wireless and sensors designs in this gallery.
From the project
The main goal of this project is not simply to learn, but to focus on following through and finishing each sprint. Additionally, with working prototypes and code, I plan to use my designs to help aspiring engineers who want to develop these skills as well (open-source, potentiall
The main goal of this project is not simply to learn, but to focus on following through and finishing each sprint. Additionally, with working prototypes and code, I plan to use my designs to help aspiring engineers who want to develop these skills as well (open-source, potentially?).

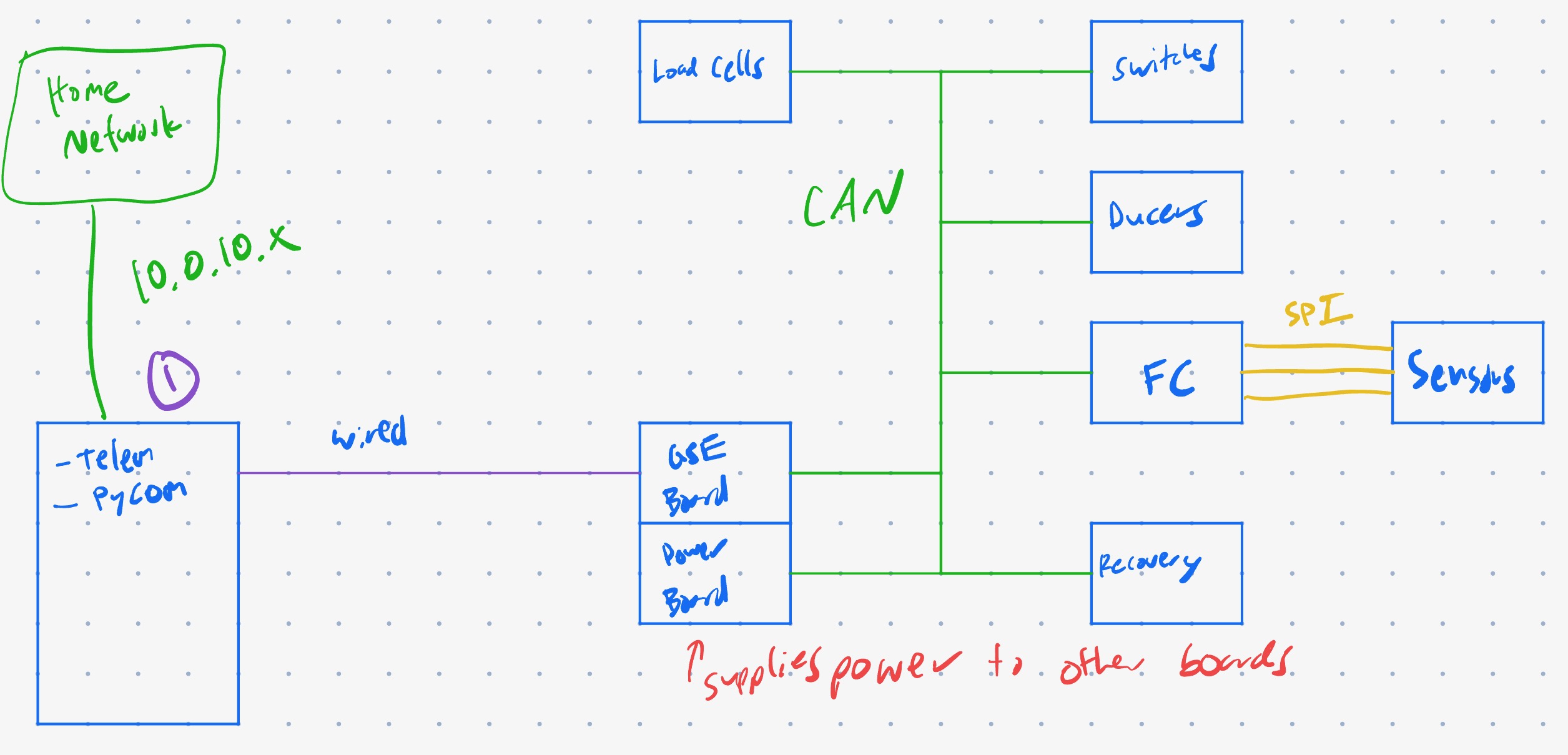

Each stage will act as a sort of version that had a fully working system. When I add changes that completely break a system, then I'll re-rev the design for a new version.
Main components on the Flight Computer V1
Flight Computer V1 bill of materials (BOM)
92 components, 52 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-S3-WROOM-1U-N16 | ESP32-S3-WROOM-1U | IC1 |
| 1 | ADXL375BCCZ-RL7 | LGA_CC-14-1_ADI | U1 |
| 1 | USBLC6-2P6 | SOT-666 | U2 |
| 1 | MS5607-02BA | LGA-8_3x5mm_P1.25mm | U3 |
| 2 | ICM-20948 | InvenSense_QFN-24_3x3mm_P0.4mm | U4, U12 |
| 1 | MCP2542FDXMF MCP2542FDxMF | DFN-8-1EP_3x3mm_P0.65mm_EP1.55x2.4mm | U5 |
| 1 | LM1085-3.3 | TO-263-3_TabPin2 | U6 |
| 1 | LM1085-5.0 | TO-263-3_TabPin2 | U7 |
| 1 | AMS1117-1.8 | SOT-223-3_TabPin2 | U8 |
| 2 | INA233 | VSSOP-10_3x3mm_P0.5mm | U9, U10 |
| 1 | CP2102N-AXX-XQFN24 CP2102N-Axx-xQFN24 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U11 |
| 2 | NPN | SOT-23 | Q1, Q2 |
| 1 | CONN_01X05_SOCKET Conn_01x05_Socket | PinSocket_1x05_P2.54mm_Vertical | J1 |
| 1 | CONN_01X02 Conn_01x02 | AMASS_XT60-M_1x02_P7.20mm_Vertical | J2 |
| 2 | CONN_01X06_PIN Conn_01x06_Pin | PinSocket_1x06_P2.54mm_Vertical | J3, J7 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J4 |
| 1 | CONN_01X04 Conn_01x04 | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J5 |
| 1 | CONN_01X02_SOCKET Conn_01x02_Socket | PinSocket_1x02_P2.54mm_Vertical | J6 |
| 1 | Polyfuse | Fuse_1206_3216Metric | F1 |
| 1 | 5V/3A | Fuse_0603_1608Metric | F2 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EN | SW_SPST_B3S-1000 | SW1 |
| 1 | BOOT | SW_SPST_B3S-1000 | SW2 |
| 1 | 5V | PinHeader_1x01_P2.54mm_Vertical | TP3 |
| 1 | V_BUS | PinHeader_1x01_P2.54mm_Vertical | TP4 |
| 1 | 3V3 | PinHeader_1x01_P2.54mm_Vertical | TP5 |
| 1 | V_BATT | PinHeader_1x01_P2.54mm_Vertical | TP6 |
| 1 | 1V8 | PinHeader_1x01_P2.54mm_Vertical | TP7 |
| 1 | V_USB | PinHeader_1x01_P2.54mm_Vertical | TP8 |
| 1 | D- | PinHeader_1x01_P2.54mm_Vertical | TP9 |
| 1 | D+ | PinHeader_1x01_P2.54mm_Vertical | TP10 |
| 6 | D | D_0603_1608Metric | D1, D2, D3, D4, D5, D6 |
| 3 | GREEN | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D7, D8, D9 |
| 1 | BLM21PG221 | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1 |
| 16 | 0.1UF 0.1uF | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C13, C15 +8 |
| 5 | 10UF 10uF | C_0603_1608Metric | C7, C8, C9, C10, C11 |
| 1 | 22UF 22uF | C_0603_1608Metric | C12 |
| 1 | 47UF 47uF | C_0603_1608Metric | C14 |
| 1 | .1uF | C_0603_1608Metric | C19 |
| 1 | 4.7UF 4.7uF | C_0603_1608Metric | C20 |
| 1 | 22U 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C22 |
| 1 | 1UF 1uF | C_0603_1608Metric | C23 |
| 1 | 120 | R_0603_1608Metric | R1 |
| 2 | 200M 200m | R_0603_1608Metric | R2, R3 |
| 5 | 1k | R_0603_1608Metric | R4, R13, R16, R20, R21 |
| 2 | 0 | R_0603_1608Metric | R5, R6 |
| 2 | 12K 12k | R_0603_1608Metric | R7, R8 |
| 2 | 5.1K 5.1k | R_0603_1608Metric | R9, R10 |
| 1 | 22.1K 22.1k | R_0603_1608Metric | R11 |
| 1 | 47.5K 47.5k | R_0603_1608Metric | R12 |
| 2 | 22 | R_0603_1608Metric | R14, R15 |
| 2 | 4.7K 4.7k | R_0603_1608Metric | R17, R18 |
| 1 | 220 | R_0603_1608Metric | R19 |
Flight Computer V1 design files
The KiCad project lives in the colin-skinner/Cesium repository on GitHub; these links point at the commit this page was built from.
Flight Computer V1: common questions
What microcontroller does the Flight Computer V1 use?
The Flight Computer V1 is built around the ESP32-S3-WROOM-1U-N16, from the ESP32 family.
How big is the Flight Computer V1 PCB?
The Flight Computer V1 measures 77.5 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Flight Computer V1?
92 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Flight Computer V1 design files?
From the colin-skinner/Cesium repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Flight Computer V1 design in my own project?
The repository has no license, so all rights stay with colin-skinner. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Flight Computer V1 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
