Sonatino PCB layout, top view — open source ESP32 board by luminationlabs

About the Sonatino PCB

Sonatino is an open source ESP32 PCB design by luminationlabs, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 65 × 30 mm, with 117 components from 58 distinct parts.

Its main chip is the ESP32-S3-WROOM-1U, from the ESP32 family. Other key parts include the MAX98357A, SRV05-4, TP4056, DW01x and NCP167BMX330TBG. By type, the board carries 46 capacitors, 37 resistors, 15 ICs, 5 transistors, 3 connectors and 3 switches.

It belongs with the audio, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Audio development board based on ESP32-S3

Sonatino is a powerful ESP32-S3-based audio development board that combines high-quality audio processing capabilities with wireless connectivity and extensive I/O options.

- ESP32-S3-WROOM-1U MCU with 16MB flash and 8MB PSRAM - High-quality 24-bit/192kHz DAC (WM8524, stereo) and ADC (WM8782, mono) - 3.2W speaker amplifier (MAX98357A) - TRRS audio jack supporting input and output - Stereo headphone amplifier and microphone preamp - microSD card slot - WiFi and Bluetooth 5.0 LE connectivity - USB-C for programming and power - Battery support with charging circuit - Configurable audio I/O…

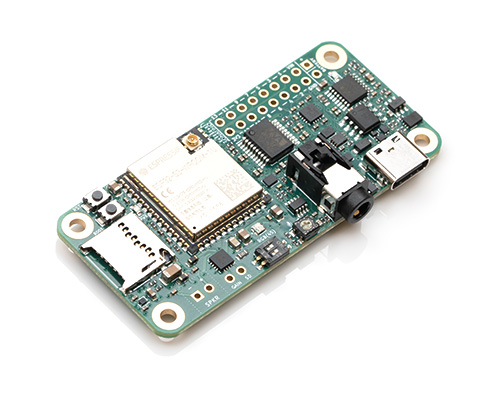

Sonatino, from the project README
From the project README

Main components on the Sonatino

MAX98357AESP32-S3-WROOM-1USRV05-4TP4056DW01xNCP167BMX330TBGSN74LVC1G14DCKRFSA2269TC7WH08FK,LJ(CTWM8524MAX4467WM8782TPA6132A2RTE

Sonatino bill of materials (BOM)

117 components, 58 distinct parts.

QtyPartRefs
1
MAX98357A
U1
1
ESP32-S3-WROOM-1U
U2
1
SRV05-4
U3
1
TP4056
U4
1
DW01x
U5
2
NCP167BMX330TBG
U6, U7
1
SN74LVC1G14DCKR
U8
2
FSA2269
U9, U10
1
TC7WH08FK,LJ(CT
U11
1
WM8524
U13
1
MAX4467
U14
1
WM8782
U15
1
TPA6132A2RTE
U16
3
DMP2104LP
Q1, Q2, Q5
1
HSCC8233
Q3
1
TPM3134NX3
Q4
1
USB_C_Receptacle_USB2.0
J3
1
Conn_01x01
J4
1
AudioJack4
J5
1
TF-008
Card2
Show 38 more
QtyPartRefs
2
SW_Push
SW1, SW2
1
SW_DIP_x02
SW3
1
LED_RED
LED1
1
LED_GREEN
PWR1
1
WS2812B
D1
2
DSK34
D2, D3
2
FerriteBead
FB1, FB2
1
100uF
C1
2
10uF
C2, C13
9
0.1uF
C3, C6, C7, C29, C32, C39, C42, C44 +1
10
1uF
C4, C9, C10, C11, C12, C22, C37, C38 +2
2
22uF
C5, C46
7
10uF
C8, C27, C31, C33, C36, C40, C41
1
10uF
C14
1
100nF
C15
1
0.1uF
C16
2
220pF
C18, C19
2
4.7uF
C20, C21
3
2.2uF
C23, C34, C35
1
1uF
C24
2
2.2nF
C25, C26
1
10nF
C28
1
100pF
C30
1
3.9k
R1
12
10K
R2, R3, R4, R5, R6, R7, R8, R17 +4
3
1M
R9, R26, R27
3
5.1K
R10, R11, R30
3
100K
R12, R15, R37
4
1K
R13, R18, R23, R24
3
470
R14, R20, R21
1
2.4K
R16
1
680K
R19
1
22K
R25
1
100K
R28
1
3.3K
R31
1
0
R33
1
150K
R34
1
470K
R35

Sonatino design files

The KiCad project lives in the luminationlabs/Sonatino repository on GitHub; these links point at the commit this page was built from.

Sonatino: common questions

What microcontroller does the Sonatino use?

The Sonatino is built around the ESP32-S3-WROOM-1U, from the ESP32 family.

How big is the Sonatino PCB?

The Sonatino measures 65 × 30 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Sonatino?

117 components, from 58 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sonatino design files?

From the luminationlabs/Sonatino repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sonatino design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which luminationlabs chose for the repository.

Can I test firmware for the Sonatino without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
