Paste PCB layout, top view — open source STM32 board by modern-hobbyist

About the Paste PCB

Paste is an open source STM32 PCB design by modern-hobbyist, published on GitHub under the MIT license. It is a 2-layer board measuring 3.6 × 3.3 mm, with 72 components from 18 distinct parts.

Its main chip is the STM32G474RETX, from the STM32 family. Other key parts include the XC6206PXXXMR-REGULATOR_LINEAR, CR2013-MI2120 and SN74AHCT1G125DBVR. By type, the board carries 25 capacitors, 12 LEDs, 9 diodes, 4 ICs, 3 resistors and 2 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Collection of KiCad PCB designs for custom keyboards, including full-sized and split ergonomic layouts with STM32F072CBT6 microcontrollers.

Mist is my take on a full size keyboard, but with some upgrades I carried over from my second keyboard build--Hermod. Furthermore, this is the UDB version of Mist, which stands for Unified Daughter Board

Aside from the UDB connector and the lack of USB-C/on-board ESD protection circuitry, this keyboard is functionally identical to the base Mist keyboard.

This project is open source, so I'll do my best to keep it updated as questions come in. I can't guarantee I'll always have time to respond, but if you have questions you can reach out on my Discord server or on the Keyboard Atelier Discord.

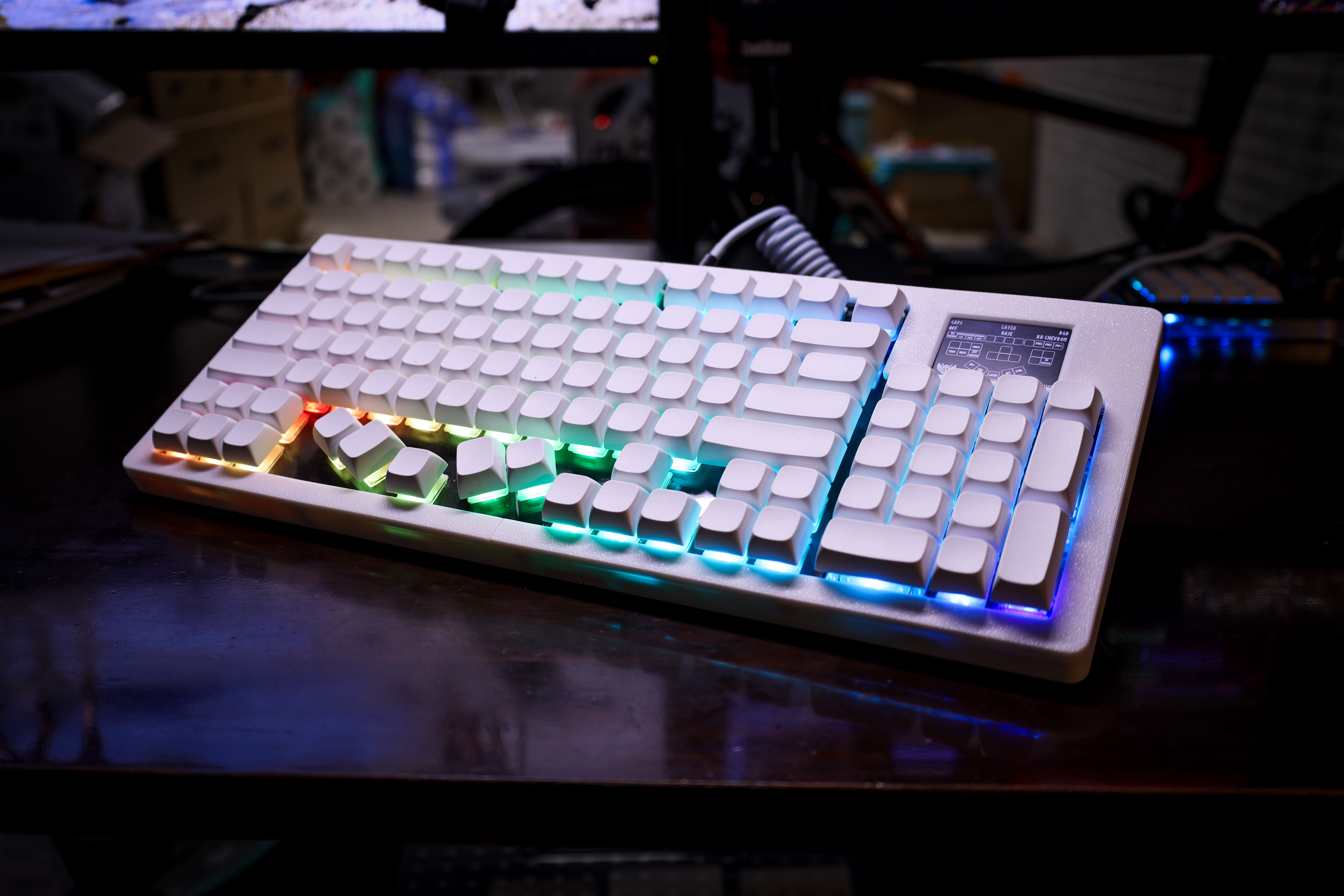

Paste, from the project README
From the project README

Main components on the Paste

Paste bill of materials (BOM)

72 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XC6206PXXXMR-REGULATOR_LINEAR
XC6206PxxxMR-Regulator_Linear
U3
1
CR2013-MI2120
U4
1
STM32G474RETX
STM32G474RETx
U5
1
SN74AHCT1G125DBVR
U6
1
MMUN2133LT1G
Q3
1
78171-0004
MOLEX
J1
1
CONN_01X05
Conn_01x05
J2
15
KS33_SW_HS
CH31, CH32, CH33, CH34, CH35, CH49, CH50, CH51 +7
1
DFU
RESET1
12
CHOC_SK6812MINI-E
choc_SK6812MINI-E
LED32, LED33, LED34, LED35, LED50, LED51, LED52, LED65 +4
2
1N4148
D40, D41
7
D
D52, D53, D54, D55, D68, D69, D70
13
0.1UF
0.1uF
C32, C33, C34, C35, C50, C51, C52, C65 +5
7
100NF
100nF
C104, C105, C106, C107, C108, C109, C110
3
100N
100n
C120, C121, C130
2
1UF
1uF
C127, C128
1
120
R7
2
68K
68k
R8, R9

Paste design files

The KiCad project lives in the modern-hobbyist/aesir repository on GitHub; these links point at the commit this page was built from.

Paste: common questions

What microcontroller does the Paste use?

The Paste is built around the STM32G474RETX, from the STM32 family.

How big is the Paste PCB?

The Paste measures 3.6 × 3.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Paste?

72 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Paste design files?

From the modern-hobbyist/aesir repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Paste design in my own project?

Yes, under the terms of its MIT license, which modern-hobbyist chose for the repository.

Can I test firmware for the Paste without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
