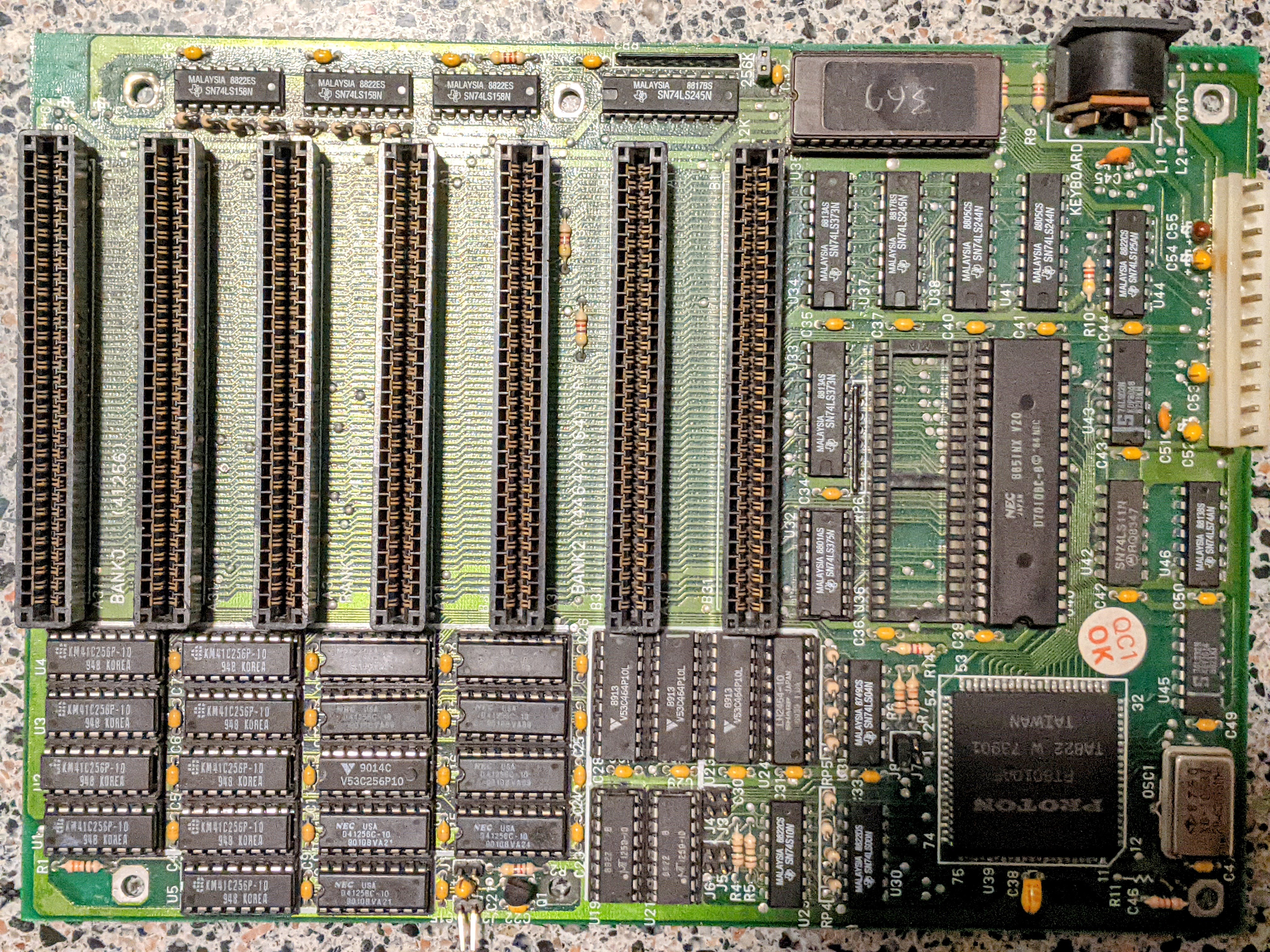

Proton Turbo XT
About the Proton Turbo XT PCB
Proton Turbo XT is an open source PCB design by skiselev, published on GitHub. It is a board, with 89 components from 44 distinct parts.
Other key parts include the D41256, D41464, 74LS158, 74LS245 and 74LS10. By type, the board carries 47 ICs, 13 connectors, 11 resistors, 3 capacitors, 1 transistor and 1 crystal.
From the project
Attempt to reverse-engineer a Proton PT8010AF based Turbo XT motherboard
This project is an attempt to reverse-engineer a Proton PT8010AF based Turbo XT motherboard. This work was in part done to confirm that Proton PT8010AF chipset is a clone of Faraday FE2010A.
Proton Turbo XT is an open source hardware project. The hardware design itself, including schematic and PCB layout design files are licensed under the strongly-reciprocal variant of CERN Open Hardware Licence version 2. Documentation, including this file, is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License.
Main components on the Proton Turbo XT
Proton Turbo XT bill of materials (BOM)
89 components, 44 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 20 | D41256 | U1, U2, U3, U4, U5, U6, U7, U8 +12 | |
| 4 | D41464 | U20, U22, U23, U24 | |
| 3 | 74LS158 | U25, U26, U27 | |
| 2 | 74LS245 | U28, U37 | |
| 1 | 74LS10 | U29 | |
| 1 | 74LS00 | U30 | |
| 1 | 74LS04 | U31 | |
| 1 | 74LS375 | U32 | |
| 2 | 74LS373 | U33, U34 | |
| 1 | 27C256 | U35 | |
| 1 | 8087 | IC_DIP40_600 | U36 |
| 2 | 74LS244 | U38, U41 | |
| 1 | PT8010A | U39 | |
| 1 | 8088 | IC_DIP40_600 | U40 |
| 1 | 74LS11 | U42 | |
| 1 | 74LS02 | U43 | |
| 1 | 74LS125 | U44 | |
| 1 | 74LS32 | U45 | |
| 1 | 74LS74 | U46 | |
| 1 | 4069 | U47 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2N3904 | TO-92_Inline | Q1 |
| 1 | 28.63636MHz | Crystal_HC-49U_Vert | X1 |
| 1 | RESET | J1 | |
| 1 | SPEAKER | J2 | |
| 4 | Conn_01x02 | J3, J4, J5, J6 | |
| 1 | VID1 | J7 | |
| 1 | VID0 | J8 | |
| 1 | 512K | J9 | |
| 1 | 256K | J10 | |
| 1 | SolderJumper_2_Open | J11 | |
| 1 | KEYBOARD | P1 | |
| 1 | POWER | P2 | |
| 7 | BUSPC_HOST | Conn_Edge_PCB_ISA8 | BUS1, BUS2, BUS3, BUS4, BUS5, BUS6, BUS7 |
| 4 | 33 | R_Array_SIP8 | RP1, RP2, RP4, RP5 |
| 1 | 4.7k | R_Array_SIP8 | RP6 |
| 1 | 10k | R_Array_SIP9 | RR3 |
| 1 | 10uF | C21 | |
| 1 | 100nF | C22 | |
| 1 | 47pF | Cap_Cer_508 | C46 |
| 1 | 33 | R1 | |
| 5 | 4.7k | R2, R3, R8, R9, R10 | |
| 2 | 150 | R4, R5 | |
| 2 | 10k | R6, R7 | |
| 1 | 1M | Res_762 | R11 |
Proton Turbo XT design files
The KiCad project lives in the skiselev/Proton_Turbo_XT repository on GitHub; these links point at the commit this page was built from.
- NetlistKiCad/Proton_Turbo_XT.net
Proton Turbo XT: common questions
How many components are on the Proton Turbo XT?
89 components, from 44 distinct parts. The full bill of materials is listed on this page.
Where can I download the Proton Turbo XT design files?
From the skiselev/Proton_Turbo_XT repository on GitHub, which has a netlist; the links under Design files point to each one.
Can I use the Proton Turbo XT design in my own project?
The repository has no license, so all rights stay with skiselev. Use it as a reference, and ask the author before reusing the design.
