WifiWallSwitch
About the WifiWallSwitch PCB
WifiWallSwitch is an open source ESP32 PCB design by Uspizig, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 65.4 × 68 mm, with 141 components from 61 distinct parts.
Its main chip is the ESP32-S3-WROOM-1-N8, from the ESP32 family. Other key parts include the RT9013, KOREANHROPARTSELECTYPE-C-31-M-12, TP4065, BME680 and TPL5110. By type, the board carries 40 resistors, 26 capacitors, 17 ICs, 14 jumpers, 14 diodes and 13 connectors.
It belongs with the displays & leds, iot & wireless and audio designs in this gallery.
From the project

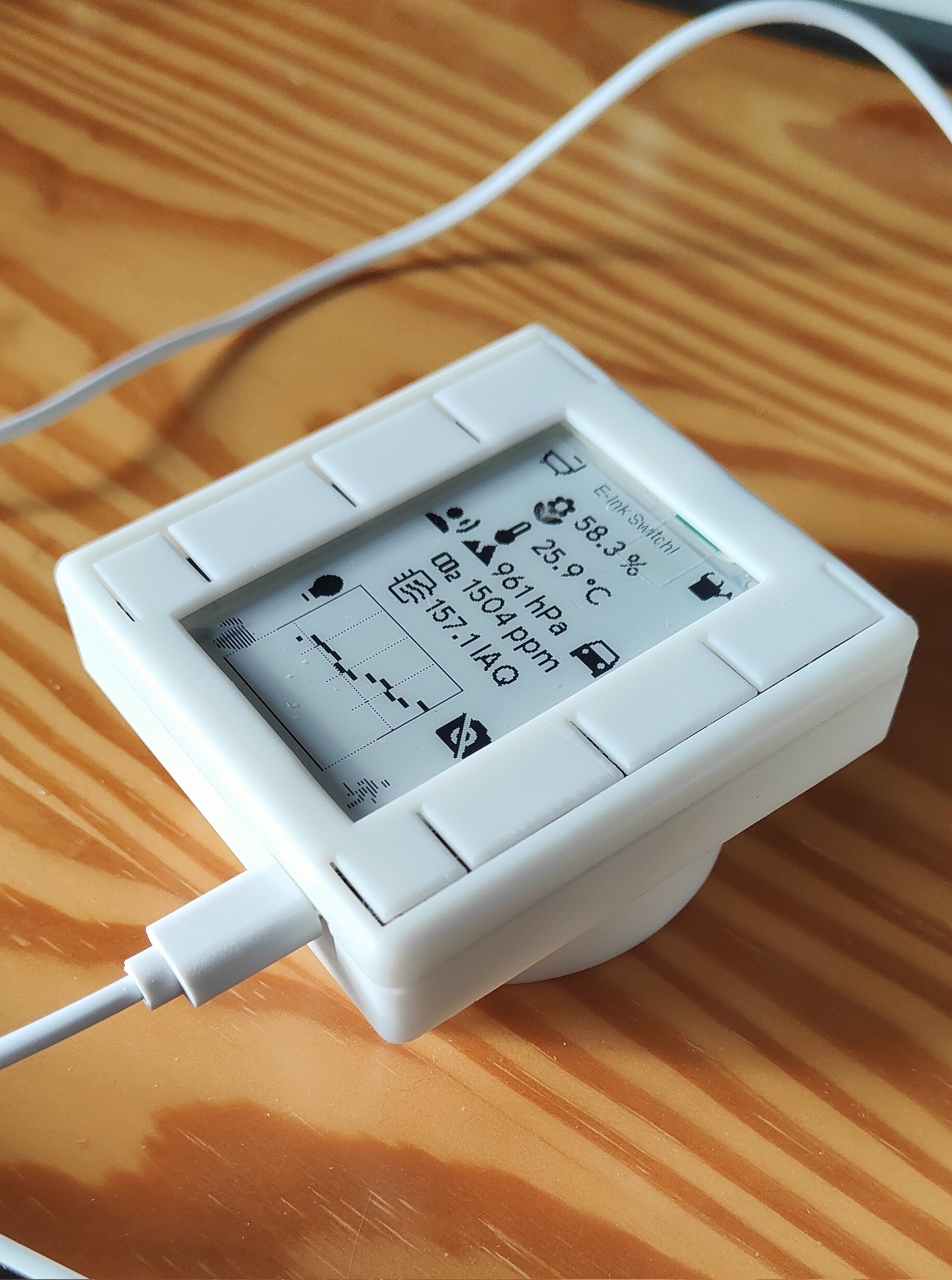

A WallSwitch with a clever EINK Display that measures your Air Quality, measures Temperature, detects movement, measures Light Conditions... and many more. And the Best of all: "It can be your own LOCAL Voice Assistant or MediaPlayer"
A WallSwitch with a clever EINK Display that measures your Air Quality, measures Temperature, detects movement, measures Light Conditions... and many more. And the Best of all: "It can be your own LOCAL Voice Assistant or MediaPlayer"
This Device perfectly integrates in your Smart Home (e.g. HomeAssistant or IO Broker). No permanent backlight On Display that disturbs your sleep. Just a brillant E-Ink Display with outstanding contrast and some Buttons that you can feel when you swipe over with your plam. A lightweight Design with a perfect WAF Factor. Fits on your Desktop or on your wall. The…
Main components on the WifiWallSwitch
WifiWallSwitch bill of materials (BOM)
141 components, 61 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-S3-WROOM-1-N8 | ESP32-S3-WROOM-1 | U1 |
| 1 | RT9013 | SOT-23-5 | U2 |
| 1 | KOREANHROPARTSELECTYPE-C-31-M-12 KoreanHropartsElecTYPE-C-31-M-12 | USB-C_SMD-TYPE-C-31-M-12 | U3 |
| 1 | TP4065 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U4 |
| 1 | BME680 | LGA-8_L3.0-W3.0-P0.80-TR | U5 |
| 1 | TPL5110 | SOT-23-6 | U6 |
| 1 | RFM95W-868S2 | HOPERF_RFM9XW_SMD | U7 |
| 1 | LSM6DSOWTR | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U8 |
| 1 | RV3032 | rv3028 | U9 |
| 1 | MAX98357 | TQFN-16_L3.0-W3.0-P0.50-BL-EP1.5 | U10 |
| 1 | MMC5883MA | LGA-16_3x3mm_P0.5mm | U11 |
| 2 | SIQ-02FVS3 MITSUMI(美上美) | SW-SMD_SIQ-02FVS3_1 | U12, U14 |
| 2 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U13, U16 |
| 1 | 4410AI1V | ZMOD4410AI1V | U15 |
| 1 | DRV8830DGQR | HVSSOP-10-1EP_3x3mm_P0.5mm_EP1.57x1.88mm | U17 |
| 1 | SI1308 Si1308 | SOT-323_SC-70 | Q1 |
| 2 | SI2301 Si2301 | SOT-23 | Q2, Q3 |
| 1 | AFC24-S24FIC-00 | FPC-SMD_P0.50-24P_QCHF-SM-H2.0 | J1 |
| 3 | CONN_01X06 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J2, J3, J8 |
| 1 | C224194 TochConn | FFC-SMD_6P-P0.50_FH34SRJ-6S-0.5SH | J4 |
Show 41 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | CONN_01X03_PIN Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J5, J9 |
| 1 | CONN_01X05_PIN Conn_01x05_Pin | PinHeader_1x05_P2.54mm_Vertical | J6 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J7 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | PinHeader_1x02_P2.00mm_Vertical | J10 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | JST_GH_SM02B-GHS-TB_1x02-1MP_P1.25mm_Horizontal | J11 |
| 1 | CONN_01X07_PIN Conn_01x07_Pin | PinHeader_1x07_P2.54mm_Vertical | J12 |
| 1 | Micro_SD_Card_Det_US | TF-SMD_XKTF-0803-0 | J13 |
| 1 | Antenna_Shield | U.FL_Molex_MCRF_73412-0110_Vertical | AE1 |
| 2 | MountingSwitch | baerklein | H3, H4 |
| 1 | C2911519 RESE | SW-SMD_G-SWITCH_MK-12C02-G015 | JP1 |
| 4 | JUMPER_2_BRIDGED Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP2, JP3, JP5, JP11 |
| 4 | JUMPER_2_OPEN Jumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP4, JP8, JP12, JP14 |
| 2 | JUMPER_3_BRIDGED12 Jumper_3_Bridged12 | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm_NumberLabels | JP6, JP7 |
| 2 | JUMPER_2_BRIDGED Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP9, JP13 |
| 1 | JUMPER_2_OPEN Jumper_2_Open | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP10 |
| 9 | SW_Push | SW-SMD_4P-CORR-L5.2-W5.2-P3.70-LS6.4 | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1 |
| 1 | VCOM | PinHeader_1x01_P2.54mm_Vertical | TP10 |
| 6 | MBR0530 | D_SOD-123 | D1, D2, D3, D4, D13, D14 |
| 8 | SK6812MINI-E | MX_SK6812MINI-E | D5, D6, D7, D8, D9, D10, D11, D12 |
| 1 | 10UH 10uH | IND-SMD_L4.0-W4.0 | L1 |
| 12 | 1UF 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +4 |
| 4 | C162420 4.7uF 50V_US | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9, C10, C11, C12 |
| 6 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C13, C19, C20, C21, C22, C26 |
| 1 | 220UF 220uF | CP_EIA-3528-21_Kemet-B | C18 |
| 1 | 4U7F 4u7F | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C23 |
| 1 | 220NF 220nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C24 |
| 1 | 100NF 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C25 |
| 15 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R4, R5, R8, R9, R10, R12 +7 |
| 1 | 3R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | 220K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6 |
| 3 | 5K11 5k11 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R13, R27 |
| 2 | 0.47R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11, R40 |
| 4 | N.C. | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R16, R24, R29, R30 |
| 1 | N.C. | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R20 |
| 2 | C17477 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R21, R22 |
| 1 | LDR03 | R_LDR_10x8.5mm_P7.6mm_Vertical | R23 |
| 1 | 800K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R26 |
| 1 | 100K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R31 |
| 1 | 330K 330k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R32 |
| 1 | 100K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R33 |
| 6 | 10K 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R34, R35, R36, R37, R38, R39 |
WifiWallSwitch design files
The KiCad project lives in the Uspizig/WifiWallSwitch repository on GitHub; these links point at the commit this page was built from.
WifiWallSwitch: common questions
What microcontroller does the WifiWallSwitch use?
The WifiWallSwitch is built around the ESP32-S3-WROOM-1-N8, from the ESP32 family.
How big is the WifiWallSwitch PCB?
The WifiWallSwitch measures 65.4 × 68 mm, has 2 copper layers and is 0.57 mm thick.
How many components are on the WifiWallSwitch?
141 components, from 61 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the WifiWallSwitch design files?
From the Uspizig/WifiWallSwitch repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the WifiWallSwitch design in my own project?
Yes, under the terms of its GPL-3.0 license, which Uspizig chose for the repository.
Can I test firmware for the WifiWallSwitch without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
