About the Geophonetdsconductschem3 PCB

Geophonetdsconductschem3 is an open source AVR/Arduino PCB design by ARTS-Laboratory, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 33 × 71.1 mm, with 14 components from 13 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the DS3231M, Battery_Input, 4023, ADS1115IDGS and SD_Card_Module. By type, the board carries 4 ICs, 4 connectors, 2 modules, 2 resistors, 1 battery holder and 1 capacitor.

From the project

Design and development of a deployable UAV smart penetrometer

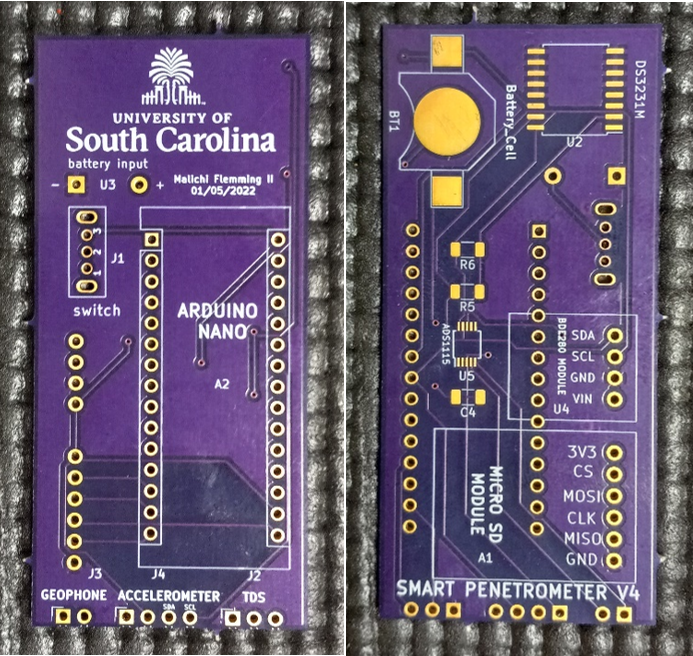

Geophonetdsconductschem3, from the project README
From the project README

Main components on the Geophonetdsconductschem3

DS3231MBattery_Input4023ADS1115IDGSSD_Card_ModuleArduino_Nano_v3.x

Geophonetdsconductschem3 bill of materials (BOM)

14 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DS3231M
U2
1
Battery_Input
U3
1
4023
U4
1
ADS1115IDGS
U5
1
SD_Card_Module
A1
1
Arduino_Nano_v3.x
A2
1
XLR3_Switched
J1
1
Conn_01x03_Female
J2
1
Conn_01x02_Female
J3
1
Conn_01x04_Female
J4
1
Battery_Cell
BT1
1
C_Small
C4
2
R_Small_US
R5, R6

Geophonetdsconductschem3 design files

The KiCad project lives in the ARTS-Laboratory/Smart-Penetrometer-with-Edge-Computing-and-Intelligent-Embedded-Systems repository on GitHub; these links point at the commit this page was built from.

Geophonetdsconductschem3: common questions

What microcontroller does the Geophonetdsconductschem3 use?

The Geophonetdsconductschem3 is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Geophonetdsconductschem3 PCB?

The Geophonetdsconductschem3 measures 33 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Geophonetdsconductschem3?

14 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Geophonetdsconductschem3 design files?

From the ARTS-Laboratory/Smart-Penetrometer-with-Edge-Computing-and-Intelligent-Embedded-Systems repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Geophonetdsconductschem3 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which ARTS-Laboratory chose for the repository.

Can I test firmware for the Geophonetdsconductschem3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
