Smart penetrometer

ARTS-Laboratory·Smart-Penetrometer-with-Edge-Computing-and-Intelligent-Embedded-Systems·SYS_DEV/Columbia/V0/V0.3/V0.3.0/hardware_design/PCB/smart penetrometer.kicad_pcb

Smart penetrometer PCB layout, top view — open source AVR/Arduino board by ARTS-Laboratory
Simulate this board

About the Smart penetrometer PCB

Smart penetrometer is an open source AVR/Arduino PCB design by ARTS-Laboratory, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 33 × 74.9 mm, with 19 components from 18 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the DS3231M, Battery_Input, 4023, ADS1115IDGS and 3v3_Voltage_Regulator. By type, the board carries 6 ICs, 3 diodes, 3 capacitors, 2 modules, 2 connectors and 2 resistors.

It belongs with the power & battery designs in this gallery.

From the project

Design and development of a deployable UAV smart penetrometer

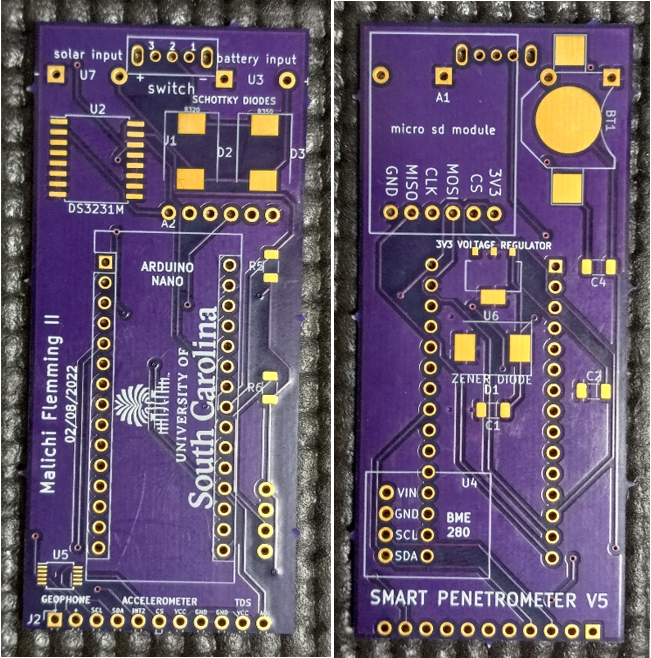

Smart penetrometer, from the project README
From the project README

Main components on the Smart penetrometer

DS3231MBattery_Input4023ADS1115IDGS3v3_Voltage_RegulatorSolar_InputSD_Card_ModuleArduino_Nano_v3.x

Smart penetrometer bill of materials (BOM)

19 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DS3231M
U2
1
Battery_Input
U3
1
4023
U4
1
ADS1115IDGS
U5
1
3v3_Voltage_Regulator
U6
1
Solar_Input
U7
1
SD_Card_Module
A1
1
Arduino_Nano_v3.x
A2
1
XLR3_Switched
J1
1
Conn_01x11_Female
J2
1
Battery_Cell
BT1
1
D_Zener_Small
D1
1
B320
D2
1
B350
D3
1
C_0.1uF
C1
1
C_10uF
C2
1
C_Small
C4
2
R_Small_US
R5, R6

Smart penetrometer design files

The KiCad project lives in the ARTS-Laboratory/Smart-Penetrometer-with-Edge-Computing-and-Intelligent-Embedded-Systems repository on GitHub; these links point at the commit this page was built from.

Smart penetrometer: common questions

What microcontroller does the Smart penetrometer use?

The Smart penetrometer is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Smart penetrometer PCB?

The Smart penetrometer measures 33 × 74.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smart penetrometer?

19 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Smart penetrometer design files?

From the ARTS-Laboratory/Smart-Penetrometer-with-Edge-Computing-and-Intelligent-Embedded-Systems repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Smart penetrometer design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which ARTS-Laboratory chose for the repository.

Can I test firmware for the Smart penetrometer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
