Oric PCB layout, top view — open source board by Board-Folk
Simulate this board

About the Oric PCB

Oric is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 206.2 × 138.1 mm, with 127 components from 76 distinct parts.

Other key parts include the LM7805, LM386, LM358, AY-3-8912 and 6502A. By type, the board carries 42 resistors, 34 capacitors, 17 ICs, 4 diodes, 3 switches and 1 speaker.

It belongs with the audio and retro computing designs in this gallery.

From the project

Oric Remix

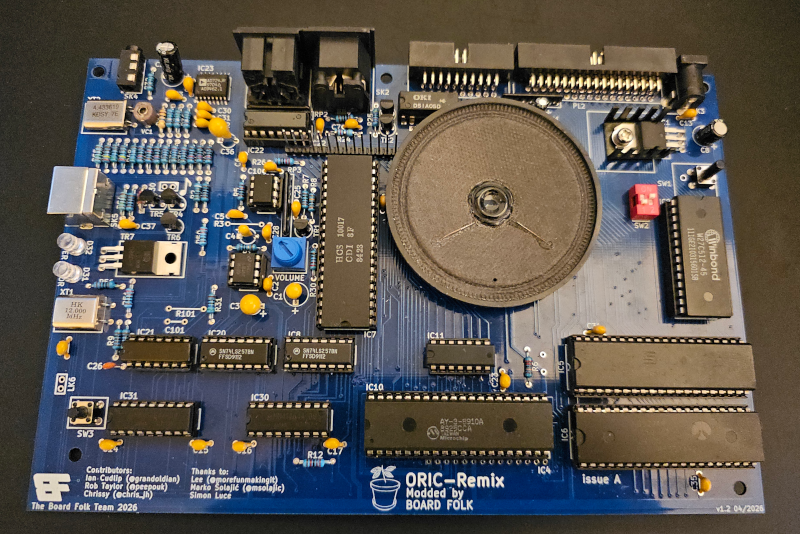

This repository contains the Bill-of-Materials (BOM), Gerbers and Kicad files for an updated Tangerine Oric motherboard found in the Oric-1 and Oric Atmos computers. The board is compatible for system ROM, in software and in form factor with the original board. Improvements include integration of service manual modifications, updated RAM and ROM layout and composite video, with the added intention to make it easier to build. It does not replace any of the core chips including the ULA which is still required.

Oric, from the project README
From the project README

Main components on the Oric

LM7805LM386LM358AY-3-89126502A6522AHCS1001774LS25727C512AY-3-891074LS0074LS0474LS365AD7244464

Oric bill of materials (BOM)

127 components, 76 distinct parts.

QtyPartRefs
