About the Lightbox PCB

Lightbox is an open source RP2040/RP2350 PCB design by hackclub, published on GitHub. It is a 2-layer board measuring 87.5 × 66.9 mm, with 67 components from 4 distinct parts.

Its main chip is the ESP32-C3_SUPERMINI_TH, from the RP2040/RP2350 family. By type, the board carries 64 diodes, 2 switches and 1 IC.

From the project

Wokwi link: https://wokwi.com/projects/427712521108601857

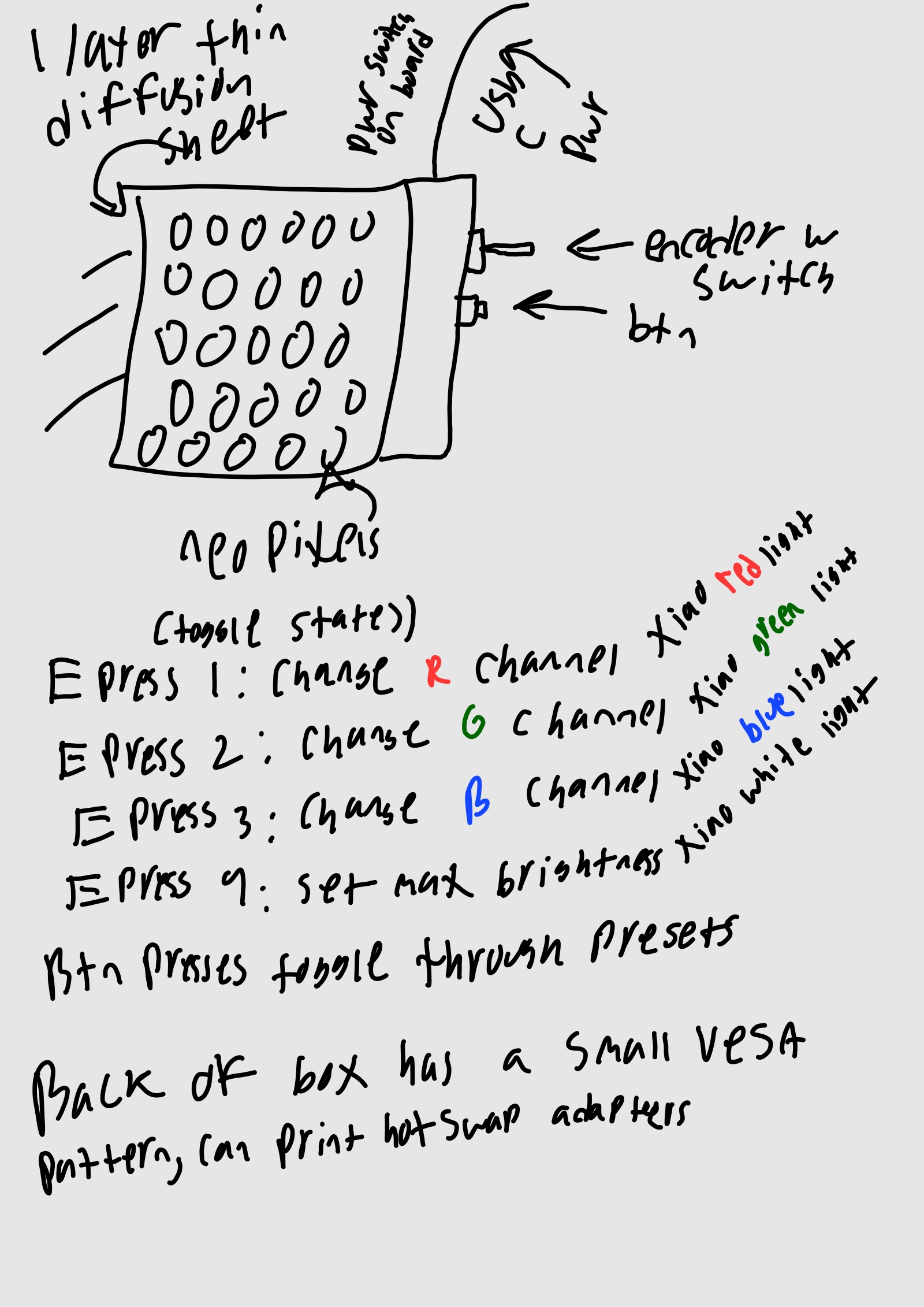

Lightbox, from the project README
From the project README

Main components on the Lightbox

ESP32-C3_SUPERMINI_TH

Lightbox bill of materials (BOM)

67 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3_SUPERMINI_TH
XIAO-RP2040-SMD
U2
1
SW_Push
SW1
1
RotaryEncoder_Switch_MP
SW2
64
SK6812MINI
SK6812
D1, D2, D3, D4, D5, D6, D7, D8 +56

Lightbox design files

The KiCad project lives in the hackclub/pixeldust repository on GitHub; these links point at the commit this page was built from.

Lightbox: common questions

What microcontroller does the Lightbox use?

The Lightbox is built around the ESP32-C3_SUPERMINI_TH, from the RP2040/RP2350 family.

How big is the Lightbox PCB?

The Lightbox measures 87.5 × 66.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lightbox?

67 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lightbox design files?

From the hackclub/pixeldust repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Lightbox design in my own project?

The repository has no license, so all rights stay with hackclub. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Lightbox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
