Pixel PCB layout, top view — open source ESP32 board by hackclub
Simulate this board

About the Pixel PCB

Pixel is an open source ESP32 PCB design by hackclub, published on GitHub. It is a 2-layer board measuring 95 × 85.8 mm, with 80 components from 22 distinct parts.

Its main chip is the ESP32-C3_SUPERMINI_TH, from the ESP32 family. Other key parts include the ESP32-WROOM-32U. By type, the board carries 57 diodes, 8 capacitors, 5 connectors, 5 resistors, 3 switches and 2 ICs.

From the project

Wokwi link: https://wokwi.com/projects/429317036413027329

Wokwi link: https://wokwi.com/projects/429317036413027329

(pls include rough pricing of any extra components you're using

parts | QTY | PART | Approx Price | LCSC | |-----:|:----------------------------------|-------------:|:------------| | 1 | MIC5219-3.3 LDO Voltage Regulator | $0.162 | C42422052 | | 1 | ESP32-WROOM-32U-N4 | $3.44 | PCBA / C328062 | | 1 | 6.3V 1000uF Electrolytic Capacitor | $0.1184 | C1587372 | | 125 | SK6812MINI-EA Addressable RGB LEDs | $9.30 | C5378731 |

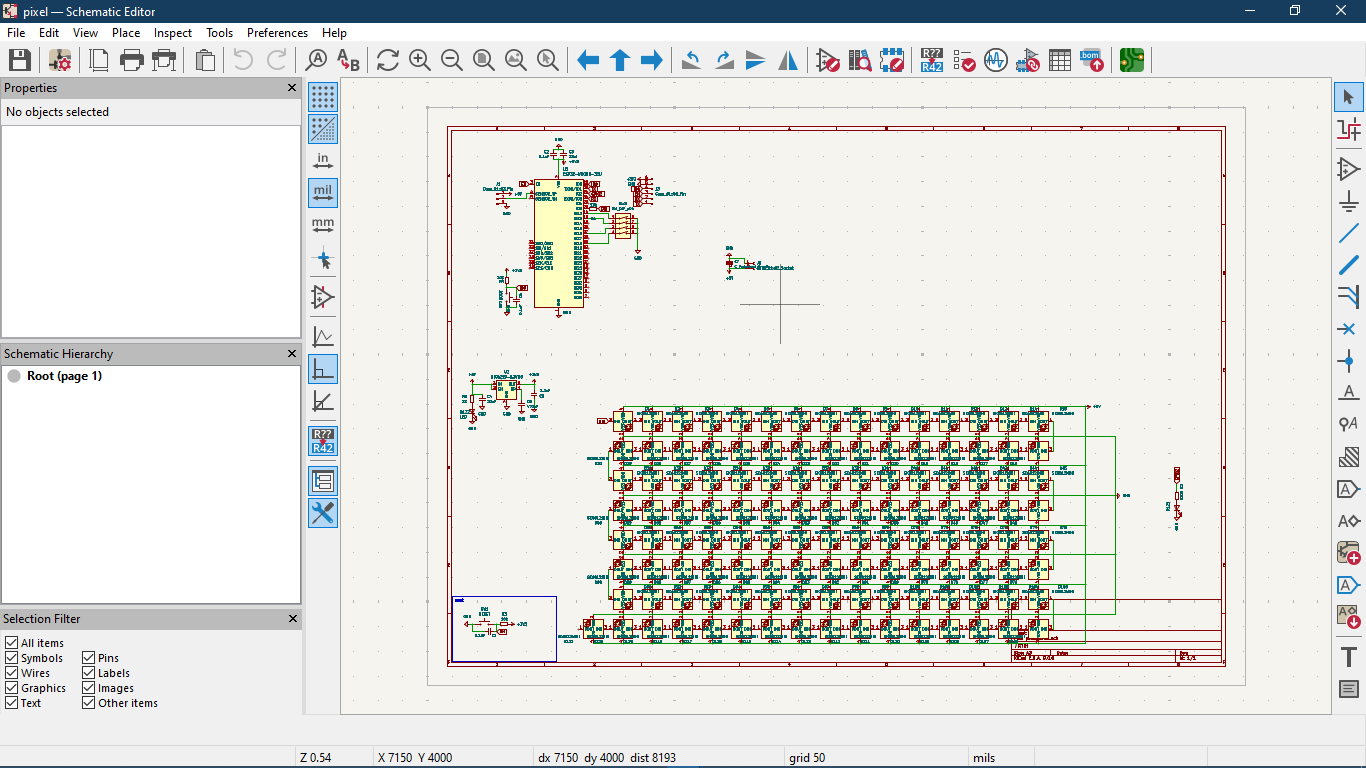

Pixel, from the project README
From the project README

Main components on the Pixel

ESP32-C3_SUPERMINI_THESP32-WROOM-32U

Pixel bill of materials (BOM)

80 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3_SUPERMINI_TH
MIC5219-3.3YM5
U2
1
ESP32-WROOM-32U
U3
1
TSW-116-08-T-S-LL
Conn_01x03_Pin
J1
1
CONN_01X01_SOCKET
Conn_01x04_Pin
J2
1
USB_C_RECEPTACLE_POWERONLY_6P
Conn_01x06_Pin
J3
1
Conn_01x04_Pin
J4
1
Conn_01x02_Socket
J8
1
RESET
SW1
1
BOOT
SW2
1
SW_DIP_x04
SW3
55
SK6812MINI
D1, D2, D3, D4, D5, D6, D7, D8 +47
1
SK6812MINI
Transmission Good
D121
1
SK6812MINI
LED
D122
3
0.1uf
C1, C2, C6
2
22uf
C3, C4
1
2.2uf
C5
1
C_Polarized_Small
C7
1
470pf
C8
1
330
R1
1
330R
R2
Show 2 more
QtyPartRefs
2
10K
R3, R4
1
2K
R5

Pixel design files

The KiCad project lives in the hackclub/pixeldust repository on GitHub; these links point at the commit this page was built from.

Pixel: common questions

What microcontroller does the Pixel use?

The Pixel is built around the ESP32-C3_SUPERMINI_TH, from the ESP32 family.

How big is the Pixel PCB?

The Pixel measures 95 × 85.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pixel?

80 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pixel design files?

From the hackclub/pixeldust repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pixel design in my own project?

The repository has no license, so all rights stay with hackclub. Use it as a reference, and ask the author before reusing the design.
