Ledboard

hackclub·pixeldust·submissions/ZeDisplay/src/ledboard.kicad_pcb

Ledboard PCB layout, top view — open source ESP32 board by hackclub
Simulate this board

About the Ledboard PCB

Ledboard is an open source ESP32 PCB design by hackclub, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 235 components from 6 distinct parts.

Its main chip is the XIAO-ESP32-S3-DIP, from the ESP32 family. Other key parts include the ESP32-C3_SUPERMINI_TH and XL-0807RGBC-WS2812B-S. By type, the board carries 141 ICs, 80 diodes and 14 capacitors.

It belongs with the displays & leds designs in this gallery.

From the project

A dual neopixel display with 5050 RGB LEDs and SMD-4P,2x1.8mm RGB LEDs for elegant viewing. The display is powered by a XIAO ESP32-S3 microcontroller, and uses micropython. The display is designed to be used as a decorative element in a room or as a fun project for electronics en

A dual neopixel display with 5050 RGB LEDs and SMD-4P,2x1.8mm RGB LEDs for elegant viewing. The display is powered by a XIAO ESP32-S3 microcontroller, and uses micropython. The display is designed to be used as a decorative element in a room or as a fun project for electronics enthusiasts :)

A simplified BOM table (pls include rough pricing of any extra components you're using)

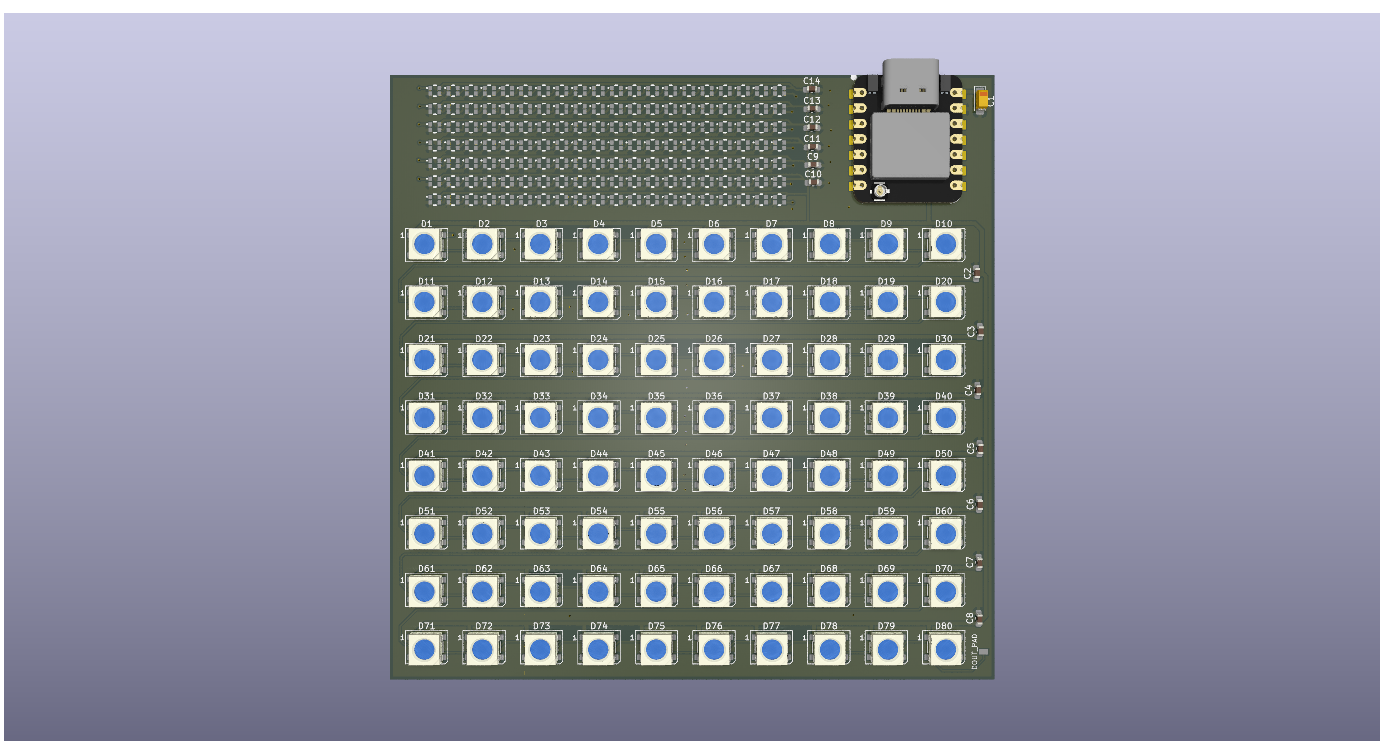

Ledboard, from the project README
From the project README

Main components on the Ledboard

XIAO-ESP32-S3-DIPESP32-C3_SUPERMINI_THXL-0807RGBC-WS2812B-S

Ledboard bill of materials (BOM)

235 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-ESP32-S3-DIP
U1
1
ESP32-C3_SUPERMINI_TH
XL-0807RGBC-WS2812B-S
U2
139
XL-0807RGBC-WS2812B-S
U3, U4, U5, U6, U7, U8, U9, U10 +131
80
SK6812MINI
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +72
1
C
C1
13
C_45deg
C2, C3, C4, C5, C6, C7, C8, C9 +5

Ledboard design files

The KiCad project lives in the hackclub/pixeldust repository on GitHub; these links point at the commit this page was built from.

Ledboard: common questions

What microcontroller does the Ledboard use?

The Ledboard is built around the XIAO-ESP32-S3-DIP, from the ESP32 family.

How big is the Ledboard PCB?

The Ledboard measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ledboard?

235 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ledboard design files?

From the hackclub/pixeldust repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ledboard design in my own project?

The repository has no license, so all rights stay with hackclub. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Ledboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
