Irl raver

hackclub·pixeldust·submissions/irl-raver/src/irl-raver.kicad_pcb

Irl raver PCB layout, top view — open source RP2040/RP2350 board by hackclub
Simulate this board

About the Irl raver PCB

Irl raver is an open source RP2040/RP2350 PCB design by hackclub, published on GitHub. It is a 2-layer board measuring 98 × 98 mm, with 292 components from 25 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. Other key parts include the ESP32-C3_SUPERMINI_TH and PCM1808PWR. By type, the board carries 173 diodes, 75 capacitors, 32 resistors, 8 connectors, 3 ICs and 1 switch.

It belongs with the audio designs in this gallery.

From the project

Wokwi link: https://wokwi.com/projects/426625186184011777

Wokwi link: https://wokwi.com/projects/426625186184011777

I made an audio visualizer using JavaScript at raver.tobycm.dev, made it into a Chrome extension as well. This will be the sequel to the 2 digital version by having a physical audio visualizer lol.

I am very lucky to have @dhylands as my mentor throughout the designing process: giving me valuable tips like using test points, make test boards for subsystems to test them if they actually work, and general schematic and PCB designing.

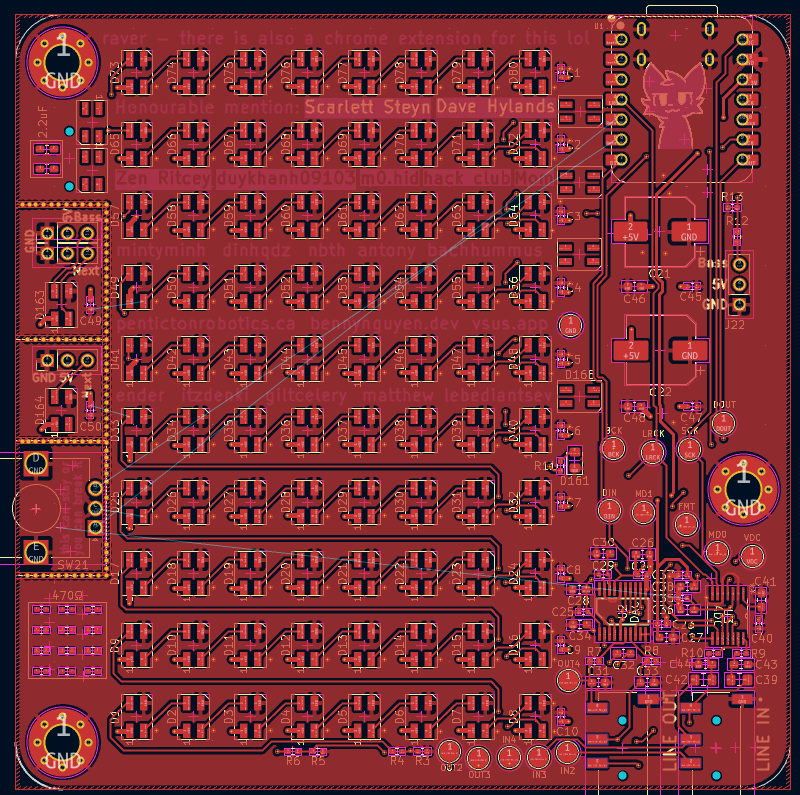

Irl raver, from the project README
From the project README

Main components on the Irl raver

XIAO-RP2040-DIPESP32-C3_SUPERMINI_THPCM1808PWR

Irl raver bill of materials (BOM)

292 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
ESP32-C3_SUPERMINI_TH
PCM5100APWR
U2
1
PCM1808PWR
U3
1
TSW-116-08-T-S-LL
PJ-320D-A
J1
1
CONN_01X01_SOCKET
PJ-320D-A
J2
1
USB_C_RECEPTACLE_POWERONLY_6P
USB_C_Receptacle_PowerOnly_6P
J3
2
Conn_01x03_Pin
J21, J23
2
Conn_01x03_Socket
J22, J24
1
PJ-320D-A
J27
1
EC12E24404A9
SW21
162
SK6812MINI
D1, D2, D3, D4, D5, D6, D7, D8 +154
3
SK6812MINI
LED
D161, D172, D173
2
SK6812MINI
D_Schottky
D162, D171
6
SK6812MINI
D165, D166, D167, D168, D169, D170
27
4.7uF
C1, C2, C3, C4, C5, C6, C7, C8 +19
2
1mF
C21, C22
14
0.1uF
C23, C24, C25, C29, C35, C37, C40, C45 +6
14
10uF
C26, C27, C28, C30, C36, C38, C41, C46 +6
8
2.2nF
C31, C33, C43, C44, C66, C67, C68, C69
4
2.2uF
C32, C34, C74, C75
Show 5 more
QtyPartRefs
6
1uF
C39, C42, C70, C71, C72, C73
4
5.1k
R1, R2, R30, R31
3
10k
R3, R5, R13
21
470
R4, R6, R7, R8, R9, R10, R12, R21 +13
4
220
R11, R37, R38, R39

Irl raver design files

The KiCad project lives in the hackclub/pixeldust repository on GitHub; these links point at the commit this page was built from.

Irl raver: common questions

What microcontroller does the Irl raver use?

The Irl raver is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Irl raver PCB?

The Irl raver measures 98 × 98 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Irl raver?

292 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Irl raver design files?

From the hackclub/pixeldust repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Irl raver design in my own project?

The repository has no license, so all rights stay with hackclub. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Irl raver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
