About the ISA DualUARTParport PCB
ISA DualUARTParport is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 176.5 × 90.2 mm, with 69 components from 35 distinct parts.
Other key parts include the 74LS138, 16550, GD75232N, 74LS30 and 74LS86. By type, the board carries 31 capacitors, 17 ICs, 8 connectors, 6 resistors, 4 diodes and 2 jumpers.
It belongs with the retro computing designs in this gallery.
From the project

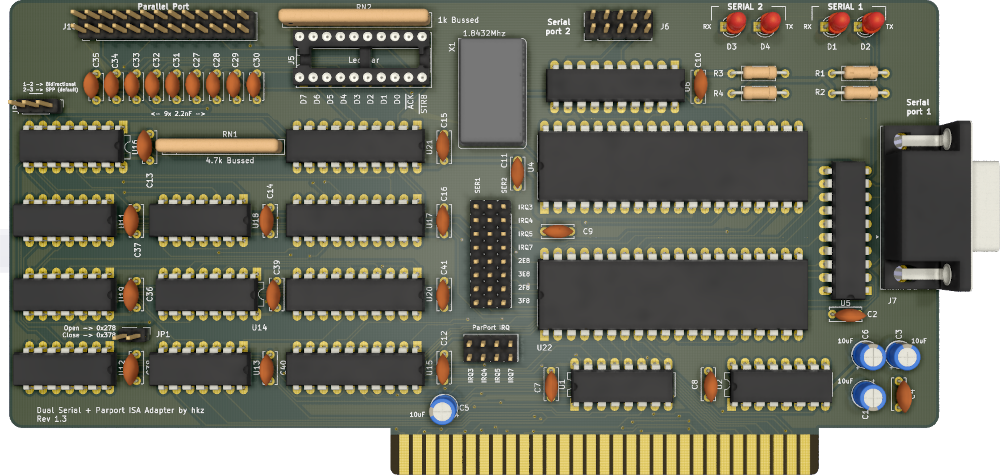

8 bit ISA Parallel port + dual UART adapter
This board adds a parallel port and two serial (RS232) ports to computers with a free ISA slot.
The schematics of this board is heavily inspired by the parallel port schematics found in the IBM 5150 Technical Reference, with just a few changes (IRQ level triggering and configurable port directionality) and by Sergey's floppy/serial controller.
Both serial ports and the parallel port addressing/IRQs are configurable.

Main components on the ISA DualUARTParport
ISA DualUARTParport bill of materials (BOM)
69 components, 35 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS138 | DIP-16_W7.62mm_LongPads | U1, U2 |
| 2 | 16550 | DIP-40_W15.24mm_LongPads | U4, U22 |
| 2 | GD75232N | DIP-20_W7.62mm_LongPads | U5, U6 |
| 1 | 74LS30 | DIP-14_W7.62mm_LongPads | U11 |
| 1 | 74LS86 | DIP-14_W7.62mm_LongPads | U12 |
| 1 | 74LS02 | DIP-14_W7.62mm_LongPads | U13 |
| 1 | 74LS155 | DIP-16_W7.62mm_LongPads | U14 |
| 1 | 74LS245 | DIP-20_W7.62mm_LongPads | U15 |
| 1 | 74LS174 | DIP-16_W7.62mm_LongPads | U16 |
| 1 | 74LS374 | DIP-20_W7.62mm_LongPads | U17 |
| 1 | 74LS05 | DIP-14_W7.62mm_LongPads | U18 |
| 1 | 74LS125 | DIP-14_W7.62mm_LongPads | U19 |
| 1 | 74LS240 | DIP-20_W7.62mm_LongPads | U20 |
| 1 | 74LS244 | DIP-20_W7.62mm_LongPads | U21 |
| 1 | 1.8432Mhz | Oscillator_DIP-14-8 | X1 |
| 1 | ISA BUS | Conn_Edge_PCB_ISA8 | J1 |
| 1 | ADDR_IRQ | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | UART1_SEL | PinHeader_1x08_P2.54mm_Vertical | J3 |
| 1 | UART2_SEL | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | Parallel Port LEDs | DIP-20_W7.62mm_Socket_LongPads | J5 |
Show 15 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Serial 2 IDC | PinHeader_2x05_P2.54mm_Vertical | J6 |
| 1 | Parport IRQ Select | PinHeader_2x04_P2.54mm_Vertical | J9 |
| 1 | Parallel Port | PinHeader_2x13_P2.54mm_Vertical | J10 |
| 1 | Address selection | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | Parport type | PinHeader_1x03_P2.54mm_Vertical | JP2 |
| 1 | LED RX1 | LED_D3.0mm | D1 |
| 1 | LED TX1 | LED_D3.0mm | D2 |
| 1 | LED RX2 | LED_D3.0mm | D3 |
| 1 | LED TX2 | LED_D3.0mm | D4 |
| 4 | 10uF | CP_Radial_D5.0mm_P2.50mm | C1, C3, C5, C6 |
| 18 | 100nF | C_Disc_D6.0mm_W2.5mm_P5.00mm | C2, C4, C7, C8, C9, C10, C11, C12 +10 |
| 9 | 2.2nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C27, C28, C29, C30, C31, C32, C33, C34 +1 |
| 4 | 2.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4 |
| 1 | 4.7k | R_Array_SIP9 | RN1 |
| 1 | 1k | R_Array_SIP11 | RN2 |
ISA DualUARTParport design files
The KiCad project lives in the hkzlab/ISA_DualUARTParport repository on GitHub; these links point at the commit this page was built from.
- LayoutISA_DualUART.kicad_pcb
ISA DualUARTParport: common questions
How big is the ISA DualUARTParport PCB?
The ISA DualUARTParport measures 176.5 × 90.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ISA DualUARTParport?
69 components, from 35 distinct parts. The full bill of materials is listed on this page.
Where can I download the ISA DualUARTParport design files?
From the hkzlab/ISA_DualUARTParport repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ISA DualUARTParport design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
