About the Zynq PCB
Zynq is an open source FPGA PCB design by juliancoy, published on GitHub under the MIT license. It is a board measuring 120 × 60 mm, with 295 components from 68 distinct parts.
Its main chip is the xc7z020clg484, from the FPGA family. Other key parts include the LM3880, SC189 - 1.0V, SC189 - 3.3V, TLV62080DSGx and LIS2HH12. By type, the board carries 129 capacitors, 106 resistors, 23 ICs, 10 transistors, 9 connectors and 7 diodes.
It belongs with the sensors, audio and usb & debug tools designs in this gallery.
From the project

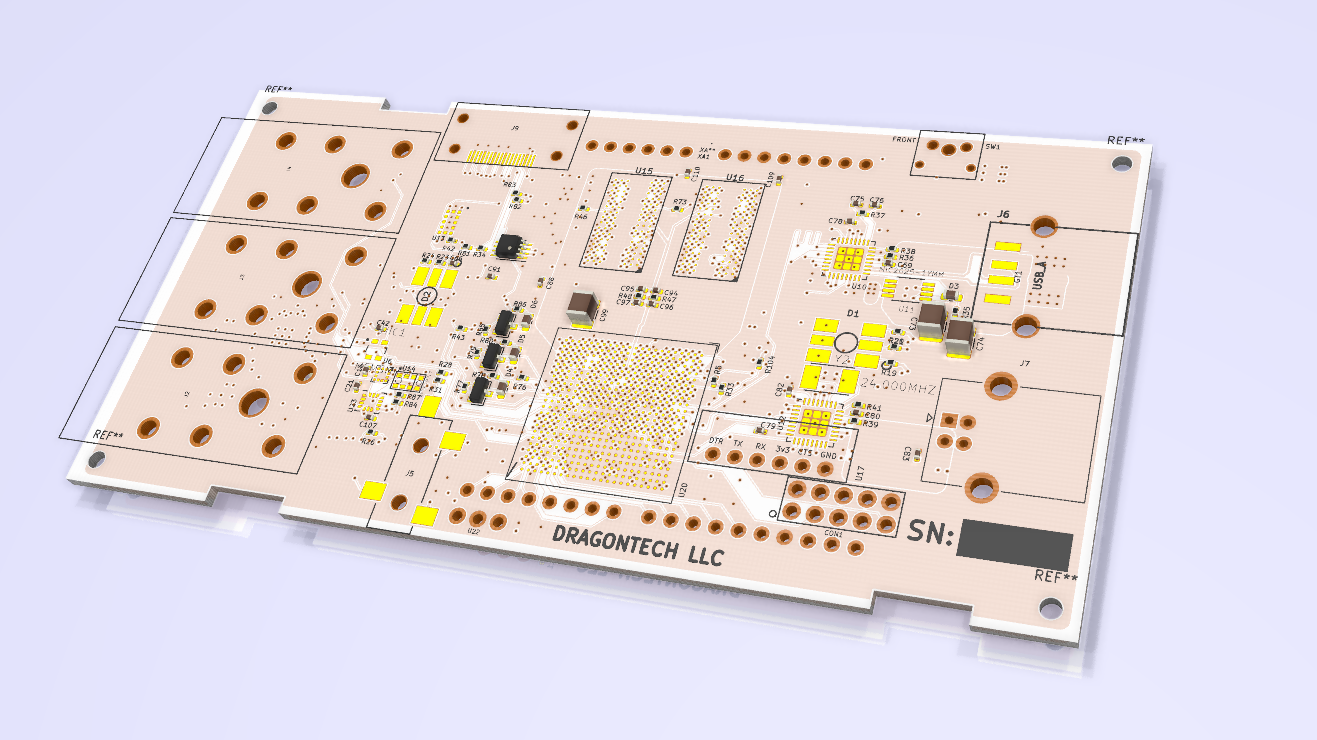

An 8-layer board in Kicad built upon Xilinx Zynq Chip. Includes sound output, HDMI, DDR3, and Arduino Uno style header for screen connection
I believe that together we can make this a formidable tool in the open hardware community.
The following software projects need to be undertaken before this project is usable by the general public: 1. Development of Boot firmware for the SPI flash which loads the linux kernel from the SD card 2. Development of a basic shell block diagram in Vivado
If you embark on one of these projects, please share your code here so other engineers don't have to reproduce your work :)
Main components on the Zynq
Zynq bill of materials (BOM)
295 components, 68 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LM3880 | SOT-23-6 | U1, U2 |
| 1 | SC189 - 1.0V | SOT-23-5 | U3 |
| 1 | SC189 - 3.3V | SOT-23-5 | U4 |
| 1 | TLV62080DSGx | WSON-8-1EP_2x2mm_P0.5mm_EP0.9x1.6mm | U5 |
| 1 | LIS2HH12 | LGA-12_2x2mm_P0.5mm | U6 |
| 1 | SC189 - 1.8V | SOT-23-5 | U7 |
| 1 | TPS51200DRCR | VSON-10-1EP_3x3mm_P0.5mm_EP1.65x2.4mm_ThermalVias | U8 |
| 1 | TLV320AIC3104 | QFN-32-1EP_5x5mm_P0.5mm_EP3.65x3.65mm | U9 |
| 2 | USB3320 | QFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm | U10, U12 |
| 1 | MIC2025-1YMM | SOP65P490X110-8N | U11 |
| 1 | VL53L1CXV0FY/1 | Optical_LGA12 | U13 |
| 1 | APDS-9960 | APDS_9960 | U14 |
| 2 | MT41K256M16HA-125_E | FBGA-96-DDR3-SDRAM | U15, U16 |
| 1 | FTDITypeUART | FTDI_CONN | U17 |
| 1 | ABRACON-ASDMB | XTAL_ASDMB-24.000MHZ-LC-T | U18 |
| 1 | S25FL256SAGNFI001 | Cypress-002-18827-0-0-0 | U19 |
| 1 | xc7z020clg484 | BGA-484_19.0x19.0mm_Layout22x22_P0.80mm_dia0.40mm | U20 |
| 1 | PCA9306 | SSOP-8_2.95x2.8mm_P0.65mm | U21 |
| 1 | TSOP344 | JUMPER_3PIN | U22 |
| 1 | LSM6DSLTR | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U23 |
Show 48 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | IRLML2502 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +2 |
| 2 | 24.000MHZ | XTAL500X320X130N | Y1, Y2 |
| 1 | AVR-JTAG-10 | XilinxJTAG | CON1 |
| 3 | AUDIO JACK | RA49C14B | J2, J3, J4 |
| 1 | JACK_TRS_4PINS | SJ-352X-SMT | J5 |
| 1 | USB_A | USB-A-Receptacle-FCI_87583 | J6 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J7 |
| 1 | Micro_SD_Card_Det | AMPHENOL-114-00841-68 | J8 |
| 1 | HDMI_A | 10029449-111RLF | J9 |
| 1 | GNDTIE | gndtie | GT1 |
| 1 | MEMSMIC | MIC_SPW2430HR5H-B | MIC1 |
| 1 | TL6215RF200BDT | tl6215_right_angle | SW1 |
| 1 | Arduino_Uno_Shield_Simplified | Arduino_Uno_Shield_Simplified | XA1 |
| 2 | LED_RGB | PLCC6-SM-RGB-LED | D1, D2 |
| 5 | BLUE LED | C_0603_1608Metric | D3, D4, D5, D6, D7 |
| 1 | 120R, 100 MHz, size 0603 | C_0603_1608Metric | FB1 |
| 4 | 2.2uH | C_1812_4532Metric | L1, L2, L3, L4 |
| 29 | .47uF | C_0402_1005Metric | C1, C4, C8, C14, C15, C17, C18, C23 +21 |
| 18 | 10uF | C_0603_1608Metric | C2, C3, C10, C11, C13, C26, C33, C41 +10 |
| 18 | 4.7uF | C_0402_1005Metric | C5, C9, C19, C20, C21, C24, C27, C42 +10 |
| 9 | 100uF | C_1210_3225Metric | C6, C12, C25, C28, C67, C73, C74, C99 +1 |
| 3 | 47uF | C_0805_2012Metric | C7, C32, C61 |
| 25 | .1uF | C_0402_1005Metric | C16, C36, C39, C52, C53, C56, C62, C63 +17 |
| 1 | 330uF | C_1206_3216Metric | C22 |
| 3 | 2.2uF | C_0402_1005Metric | C35, C69, C80 |
| 8 | 1uF | C_0402_1005Metric | C37, C38, C40, C43, C44, C45, C91, C92 |
| 2 | 220uF Tant. | CP_EIA-3528-12_Kemet-T | C48, C49 |
| 4 | 18pF | C_0402_1005Metric | C75, C76, C84, C85 |
| 8 | .01uF | C_0402_1005Metric | C93, C98, C105, C106, C109, C110, C111, C120 |
| 1 | 47uF | C_1210_3225Metric | C113 |
| 12 | 100k | R_0402_1005Metric | R1, R2, R3, R4, R5, R17, R27, R28 +4 |
| 7 | 10k | R_0402_1005Metric | R6, R33, R36, R39, R42, R43, R44 |
| 3 | 240 1% | R_0402_1005Metric | R7, R46, R49 |
| 9 | 4.7k | R_0402_1005Metric | R8, R9, R10, R74, R82, R83, R98, R103 +1 |
| 10 | 100 | R_0402_1005Metric | R11, R12, R13, R14, R15, R16, R19, R20 +2 |
| 4 | 49.9k | R_0402_1005Metric | R18, R30, R31, R32 |
| 8 | 150 | R_0402_1005Metric | R21, R24, R35, R45, R78, R80, R86, R102 |
| 9 | 20k | R_0402_1005Metric | R25, R91, R92, R93, R94, R95, R96, R97 +1 |
| 3 | 47 | R_0402_1005Metric | R26, R84, R87 |
| 2 | 1M | R_0402_1005Metric | R37, R40 |
| 2 | 8.06k 1% | R_0402_1005Metric | R38, R41 |
| 2 | 10k 1% | R_0402_1005Metric | R47, R48 |
| 3 | 80.6 1% | R_0402_1005Metric | R50, R75, R76 |
| 23 | 40.2 1% | R_0402_1005Metric | R51, R52, R53, R54, R55, R56, R57, R58 +15 |
| 4 | 1k | R_0402_1005Metric | R77, R79, R85, R105 |
| 3 | .05 | R_2512_6332Metric | R88, R89, R90 |
| 1 | 47k | R_0402_1005Metric | R99 |
| 1 | 24.9 1% | R_0402_1005Metric | R100 |
Zynq design files
The KiCad project lives in the juliancoy/zynqPCB repository on GitHub; these links point at the commit this page was built from.
Zynq: common questions
What microcontroller does the Zynq use?
The Zynq is built around the xc7z020clg484, from the FPGA family.
How big is the Zynq PCB?
The Zynq measures 120 × 60 mm and is 1.6 mm thick.
How many components are on the Zynq?
295 components, from 68 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Zynq design files?
From the juliancoy/zynqPCB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Zynq design in my own project?
Yes, under the terms of its MIT license, which juliancoy chose for the repository.
Can I test firmware for the Zynq without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
