Eurorack Dual Envelope Module
Len42·Synth·modules/Envelope2/Envelope2.kicad_pcb

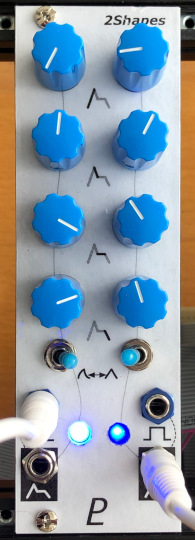

About the Eurorack Dual Envelope Module
Eurorack Dual Envelope Module is an open source AVR/Arduino PCB design by Len42, published on GitHub. It is a 2-layer board measuring 40.3 × 108.2 mm, with 57 components from 26 distinct parts.
Its main chip is the ATmega328P-PU, from the AVR/Arduino family. Other key parts include the MCP4822, TL072 and DG413. By type, the board carries 13 resistors, 12 capacitors, 10 connectors, 6 diodes, 4 ICs and 2 switches.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
An Arduino-compatible ATmega328P microcontroller generates the envelopes. The firmware source code is in firmware/Envelope2/Envelope2.ino. MakeLookupTables is a program that generates data tables used in the firmware. See here for info about programming the firmware onto the microcontroller chip.
PCB layouts are provided in KiCad and gerber formats. A front panel design is included as a drilled PCB layout (with no labels or graphics).

Main components on the Eurorack Dual Envelope Module
Eurorack Dual Envelope Module bill of materials (BOM)
57 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATmega328P-PU Microchip | DIP-28_W7.62mm | U1 |
| 1 | MCP4822 Microchip | DIP-8_W7.62mm_LongPads | U2 |
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm_LongPads | U3 |
| 1 | DG413 Renesas / Intersil | DIP-16_W7.62mm_LongPads | U4 |
| 1 | 16MHz Murata | Resonator_muRata_CSTLSxxxX-3Pin_W5.5mm_H3.0mm | Y1 |
| 4 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4 |
| 1 | Conn_Front_Left_Top Samtec | PinSocket_1x11_P2.54mm_Vertical | J5 |
| 1 | Conn_Back_Right_Top Amphenol FCI | PinHeader_1x11_P2.54mm_Vertical | J6 |
| 1 | Conn_Front_Right Gravitech | PinSocket_1x08_P2.54mm_Vertical | J7 |
| 1 | Conn_Back_Left Amphenol FCI | PinHeader_1x08_P2.54mm_Vertical | J8 |
| 1 | Conn_Eurorack_16 Wurth Elektronik | IDC-Header-Eurorack-16-TH | J9 |
| 1 | FTDI Amphenol FCI | PinHeader_1x06_P2.54mm_Vertical | J10 |
| 1 | GATE-BUS Amphenol FCI | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 8 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 |
| 2 | SPDT Mountain Switch | SW_SPDT_THT_2.54 | SW1, SW2 |
| 2 | LED_5mm_Blue VCC | LED_D5.0mm | D3, D5 |
| 4 | 1N5711 STMicroelectronics | D_DO-35_SOD27_P7.62mm_Horizontal | D9, D10, D11, D12 |
| 3 | 10U Panasonic | CP_Radial_D5.0mm_P2.50mm | C1, C2, C5 |
| 7 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C6, C7, C8, C9, C10 |
| 2 | 3N3 KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C11, C12 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 270R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
| 1 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 2 | 24K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8, R9 |
| 4 | 47K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R10, R11, R12, R13 |
| 2 | 51R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R14, R15 |
| 2 | 100K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R16, R17 |
Eurorack Dual Envelope Module design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack Dual Envelope Module: common questions
What microcontroller does the Eurorack Dual Envelope Module use?
The Eurorack Dual Envelope Module is built around the ATmega328P-PU, from the AVR/Arduino family.
How big is the Eurorack Dual Envelope Module?
The Eurorack Dual Envelope Module measures 40.3 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack Dual Envelope Module?
57 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack Dual Envelope Module design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack Dual Envelope Module design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Eurorack Dual Envelope Module without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
